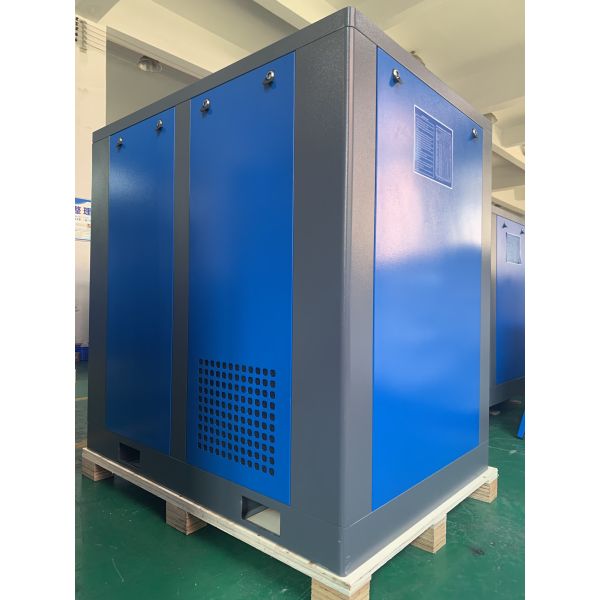

37KW VSD Air cooling oil inject screw compressor
37KW VSD Air cooling oil inject screw compressor
37KW VSD Air cooling oil inject screw compressor
37KW VSD Air cooling oil inject screw compressor
37KW VSD Air cooling oil inject screw compressor
37KW VSD Air cooling oil inject screw compressor
37KW VSD Air cooling oil inject screw compressor
37KW VSD Air cooling oil inject screw compressor
Specifications
Brand Name :
AIRERA
Model Number :
AGCD-37D C VP
Certification :
ISO、CE、TUV
Place of Origin :
made in China
MOQ :
1 unit
Price :
Negotiable
Payment Terms :
TT/LC,Western Union,D/P,D/A
Supply Ability :
2,000-3,000 per month
Delivery Time :
5-15 days
Packaging Details :
wooden case
Cooling air flow（m3/hr） :
9200
Application :
Medical, Pharmaceutical, Food Processing
Oil Content :
Oil inject
Working Pressure :
0.8-1.3Bar
Cooling type :
Air cooling
Driven type :
Direct driven
Description
AIRERA 37kW VSD Series: Redefining Energy Efficiency in Industrial Air Supply
Ushering in a New Era of High-Efficiency Power: AIRERA 37kW VSD Series Variable-Speed Screw Compressors

AIRERA’s 37kW VSD air-cooled oil-injected screw compressor is meticulously engineered to meet the high-intensity, high-precision demands of modern industry. By seamlessly integrating our deep expertise in fluid machinery with cutting-edge permanent magnet variable-speed drive (VSD) technology, we have overcome the limitations of traditional equipment—namely, high energy consumption and excessive noise.

This is not merely a technological innovation; it is the embodiment of AIRERA’s commitment to “green production.” Whether in bustling automated workshops or manufacturing facilities with harsh environments, AIRERA delivers a steady, constant-pressure output, exceptional energy efficiency, and uncompromising reliability. We provide your production lines with a continuous supply of power, helping you navigate the low-carbon industrial era with ease and lead the way into the future.

Advantages of AGCD VSD Oil-Inject Air Screw Compressor
  • Upgraded high-efficiency screw compressor heads for greater airflow

    By selecting low-speed screw rotors and the most suitable motors, and pairing them with main units optimized for specific speeds, we ensure that each rotor operates at its optimal speed, achieving the best possible energy efficiency ratio.

37KW VSD Air cooling oil inject screw compressor

  • Specialized Oversized Inlet Valve

· Normally closed, oversized bore, ultra-low pressure drop;

· Low failure rate, long service life


37KW VSD Air cooling oil inject screw compressor

  • Custom air intake system that prevents dust from entering


    A three-stage filtration system removes fine particles from the air, filtering out 99.99% of impurities to ensure the quality of the air entering the unit and extend its service life
37KW VSD Air cooling oil inject screw compressor
Technical Specifications - 37KW VSD Air Cooling Compressor
ITEM UNIT MODEL AGCD-37 VP
Free air delivery m³/min 1.65-6.6 | 1.45-5.8 | 1.2-4.8
Max. working pressure MPa 0.8 ~1.3
Compressor type
Oil inject screw compressor
Cooling type
Air cooling
Driven type
Direct driven
Inlet status - Temperature ℃ ≤45
Inlet status - Pressure MPa Atmospheric pressure
Inlet status - Relative humidity
≤90%
Noise Level dB(A) ≤72
Residual oil content ppm ≤2
Drive rotor speed rpm 800~3000
Compressed air outlet temperature ℃ Ambient temperature＋10
Cooling air flow m³/hr 9200
Control mode
Intelligent controller
Safety valve set pressure MPa 0.88 ~ 1.43
Lubricating water volume L 30
Compressed air outlet connection
G1-1/2
Dimension - L mm 1400
Dimension - W mm 1000
Dimension - H mm 1300
Net Weight kg 805

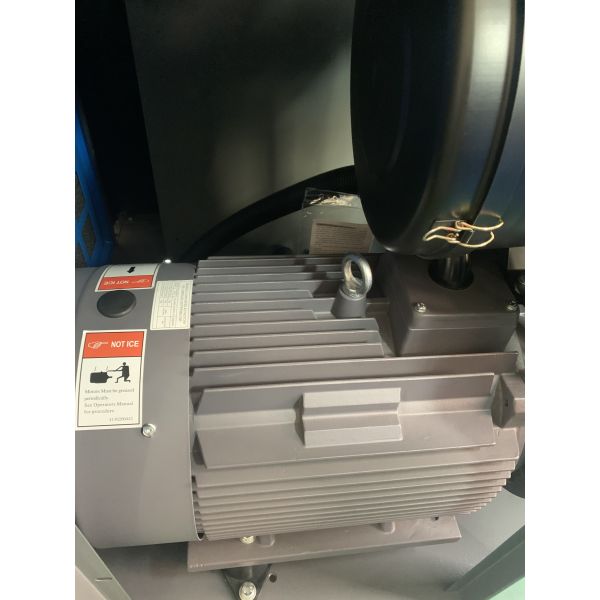

Motor - Model
YPM180M30-37
Motor - Speed rpm 800~3000
Motor - Rated Power KW 37
Motor - Service factor
1.2
Motor - Protection type
IP55
Motor - Efficiency
IE3
Motor - Startup mode
Frequency conversion starting
Motor - Voltage V 380(Special on request)
Motor - Frequency Hz 40-150(Special on request)
Motor - Rated current A 65
Motor - Weight of motor kg 170
37KW VSD Air cooling oil inject screw compressor
AIRERA 37kW VP Screw Air Compressor: Frequently Asked Questions (FAQ)
Why should I choose AIRERA’s VSD (Variable Speed Drive) technology over a traditional fixed-speed compressor?
The core difference lies in energy efficiency and stability. Traditional fixed-speed units run at a constant RPM and manage demand through frequent loading and unloading cycles, which wastes significant energy. AIRERA’s VSD technology instantly senses your air demand and precisely adjusts the motor speed to match it. This not only reduces electricity costs by up to 35% but also provides constant pressure delivery (within ±0.01 MPa), protecting your downstream equipment from pressure surges.
Can the air-cooling system handle high-temperature or dusty factory environments?
Absolutely. AIRERA has optimized the cooling layout specifically for harsh industrial conditions. We utilize large-surface, anti-fouling finned coolers paired with high-volume fans. This ensures that even in ambient temperatures as high as 45°C, the discharge temperature remains within safe limits. Additionally, our heavy-duty air filters capture fine dust effectively, keeping the internal oil circuits clean.
How does AIRERA ensure the oil content in the compressed air meets production standards?
Although this is an oil-injected compressor, we utilize a triple-stage oil-gas separation system (centrifugal, gravity, and high-efficiency element filtration). This keeps residual oil content in the discharged air at extremely low levels (typically ≤3ppm). For industries requiring even higher air purity, such as food or electronics, AIRERA offers integrated precision filters and refrigerated dryer solutions.
