75KW,100HP VSD Air cooling oil inject screw compressor
75KW,100HP VSD Air cooling oil inject screw compressor
75KW,100HP VSD Air cooling oil inject screw compressor
75KW,100HP VSD Air cooling oil inject screw compressor
75KW,100HP VSD Air cooling oil inject screw compressor
75KW,100HP VSD Air cooling oil inject screw compressor
75KW,100HP VSD Air cooling oil inject screw compressor
75KW,100HP VSD Air cooling oil inject screw compressor
Specifications
Brand Name :
AIRERA
Model Number :
AGCD-75D C VP
Certification :
ISO、CE、TUV
Place of Origin :
made in China
MOQ :
1 unit
Price :
Negotiable
Payment Terms :
TT/LC,Western Union,D/P,D/A
Supply Ability :
2,000-3,000 per month
Delivery Time :
5-15 days
Packaging Details :
wooden case
Cooling air flow（m3/hr） :
11200
Application :
Medical, Pharmaceutical, Food Processing
Oil Content :
Oil inject
Working Pressure :
0.8-1.3Bar
Cooling type :
Air cooling
Driven type :
Direct driven
Description
AIRERA 75kW IE5 PM-VSD Series: The "Green Power Engine" for Large-Scale Manufacturing

AIRERA’s 75kW series is engineered for industry leaders pursuing peak production efficiency and stringent environmental standards. As a central power hub, this model seamlessly integrates massive air delivery with Variable Speed Drive (VSD) technology, meeting heavy-duty demands while drastically cutting energy expenditures through intelligent control.

Advantages of AGCD VSD Oil-Inject Air Screw Compressor

  • Multi-touch color controller for simple and convenient operation and monitoring

75KW,100HP VSD Air cooling oil inject screw compressor

  • Custom air intake system that prevents dust from entering

A three-stage filtration system removes fine particles from the air, filtering out 99.99% of impurities to ensure the quality of the air entering the unit and extend its service life.

75KW,100HP VSD Air cooling oil inject screw compressor

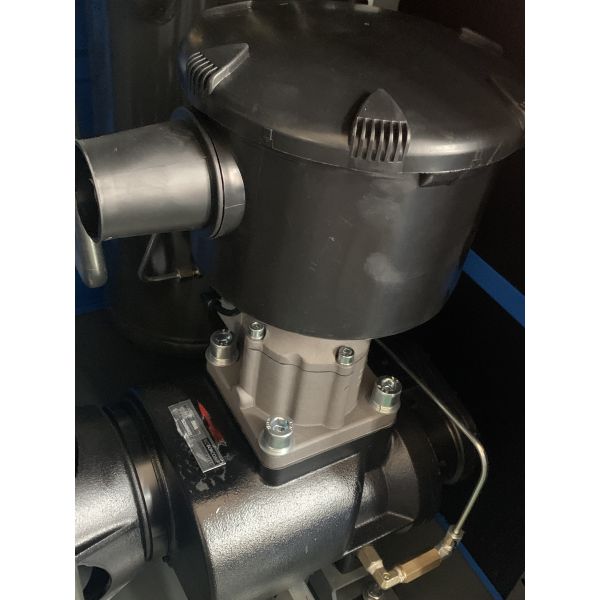

  • Specialized Oversized Inlet Valve

· Normally closed, oversized bore, ultra-low pressure drop;

· Low failure rate, long service life

75KW,100HP VSD Air cooling oil inject screw compressor

Sample calculation of energy saving:

75KW,100HP VSD Air cooling oil inject screw compressor

75KW,100HP VSD Air cooling oil inject screw compressor

Technical Specifications - 75KW VSD Air Cooling Compressor
ITEM UNIT MODEL AGCD-75 VP
Free air delivery m³/min 3.25-13.0 | 2.9-11.50| 2.45-9.8
Max. working pressure MPa 0.8 ~1.3
Compressor type Oil inject screw compressor
Cooling type Air cooling
Driven type Direct driven
Inlet status - Temperature ℃ ≤45
Inlet status - Pressure MPa Atmospheric pressure
Inlet status - Relative humidity ≤90%
Noise Level dB(A) ≤76
Residual oil content ppm ≤2
Drive rotor speed rpm 800~3000
Compressed air outlet temperature ℃ Ambient temperature＋10
Cooling air flow m³/hr 11200
Control mode Intelligent controller
Safety valve set pressure MPa 0.88 ~ 1.43
Lubricating water volume L 50
Compressed air outlet connection G2
Dimension - L mm 1850
Dimension - W mm 1300
Dimension - H mm 1450
Net Weight kg 1460
Motor - Model YPM225S30-75
Motor - Speed rpm 800~3000
Motor - Rated Power KW 75
Motor - Service factor 1.2
Motor - Protection type IP55
Motor - Efficiency IE5
Motor - Startup mode Frequency conversion starting
Motor - Voltage V 380(Special on request)
Motor - Frequency Hz 50-200(Special on request)
Motor - Rated current A 128.4
Motor - Weight of motor kg 515

75KW,100HP VSD Air cooling oil inject screw compressor

AIRERA 75kW VP Screw Air Compressor: Frequently Asked Questions (FAQ)
Since 75kW is a high-power unit, exactly how much can I save on electricity with VSD?
The numbers are quite significant. A fixed-speed 75kW unit consumes about 30%-40% of its rated power even when idling (unloaded). AIRERA VSD technology eliminates this waste. If your factory operates with a 70% average load for 6,000 hours/year, this unit can save you approximately $12,000 - $18,000 (USD) in electricity costs annually. Typically, the energy savings cover the price premium over a fixed-speed model within a year.
How convenient is maintenance for such a large unit?

Our design philosophy is "user-centric." The 75kW unit features a spacious layout and full-access doors, making all consumables (oil separators, oil filters, air filters) easily accessible. Additionally, the AIRERA smart controller tracks the lifespan of parts and issues maintenance alerts, ensuring your equipment is always in peak condition.

How does AIRERA ensure the reliability of the 75kW inverter?
We prioritize uptime. AIRERA uses industrial-grade heavy-duty inverters with high overload capacity and dust/moisture-resistant designs. The electrical cabinet has its own cooling circulation to prevent electronic component aging. Multiple built-in electrical protection measures are integrated to mitigate failure risks at the source.
