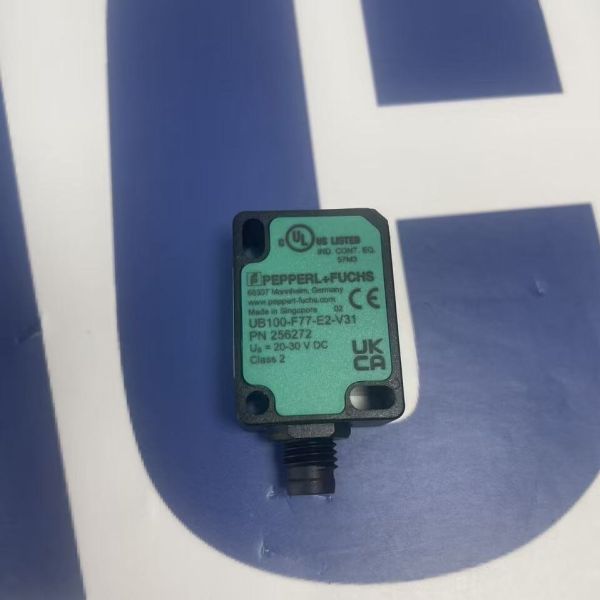

Pepperl+Fuchs UB100-F77-E2-V31 | 10-100mm Micro Ultrasonic, PNP, M8
Pepperl+Fuchs UB100-F77-E2-V31 | 10-100mm Micro Ultrasonic, PNP, M8
Pepperl+Fuchs UB100-F77-E2-V31 | 10-100mm Micro Ultrasonic, PNP, M8
Pepperl+Fuchs UB100-F77-E2-V31 | 10-100mm Micro Ultrasonic, PNP, M8
Specifications
Brand Name :
Pepperl+Fuchs
Model Number :
UB100-F77-E2-V31
Certification :
ATEX
Place of Origin :
DE
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T,XT,ALIPAY
Supply Ability :
100pcs per month
Delivery Time :
Negotiable
Packaging Details :
carton
Power Supply :
1
Ambient Temperature :
-
Electrical Rating :
G
Certifications :
S
Description

Pepperl+Fuchs UB100-F77-E2-V31 | 10-100mm Micro Ultrasonic, PNP, M8

Pepperl+Fuchs UB100-F77-E2-V31 ultrasonic proximity sensor. 10-100mm range, PNP NO output, 20-30V DC, M8 connector, IP67, teach-in function.

Product Overview

The Pepperl+Fuchs UB100-F77-E2-V31​ is a micro-style ultrasonic proximity sensor​ designed for precise object detection in compact spaces. It operates on a 10 to 100 mm sensing range​ with an adjustable switching point via a built-in teach-in function. Key features include a PNP normally open output, a wide 20-30V DC operating voltage, and an M8 4-pin connector​ for quick installation. This sensor is ideal for applications requiring reliable detection of various materials, including transparent objects and liquids.

Technical Specifications (Electrical & Functional)

Parameter

Specification

Part Number​

UB100-F77-E2-V31​

Sensor Type​

Ultrasonic Proximity (Direct Reflection)

Operating Voltage​

20 ... 30 V DC​ (Ripple ≤10%)

Output Type​

PNP, Normally Open (NO)​

Switching Current​

Max. 200 mA

Sensing Range​

10 ... 100 mm​

Adjustable Range​

30 ... 100 mm (via Teach-in)

Dead Zone​

0 ... 10 mm

Switching Frequency​

10 Hz

Repeat Accuracy​

± 1 mm

Teach-in Method​

Program Input (Pin 4)

Technical Specifications (Mechanical & Environmental)

Parameter

Specification

Housing Material​

Polycarbonate

Transducer Face​

Epoxy / Glass Microspheres

Connection​

M8 x 1, 4-pin Connector​

Degree of Protection​

IP67​

Operating Temperature​

-10 ... +50 °C​

Storage Temperature​

-40 ... +85 °C

Dimensions (L x W x H)​

23 mm x 12 mm x 31 mm

Weight​

Approx. 10 g

Mounting​

Any Position

Key Features

  • Material-Independent Detection:​ Utilizes ultrasonic technology to reliably detect objects regardless of color, transparency, or material (e.g., glass, plastic, liquid levels).

  • Simple Teach-in Setup:​ The switching point can be easily programmed via a digital input, allowing for quick commissioning and adjustment without tools.

  • Compact Micro Design:​ The small 23x12x31 mm housing enables installation in extremely tight spaces where standard sensors cannot fit.

Applications

  • Bottle and container presence detection on conveyor belts

  • Liquid level monitoring in small tanks and reservoirs

  • Transparent object detection in packaging and assembly machinery[citation:available:1][citation:available:2][citation:web:1]
