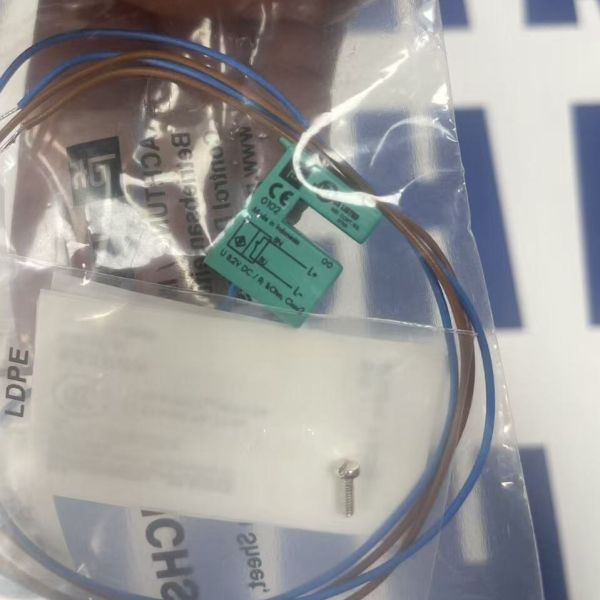

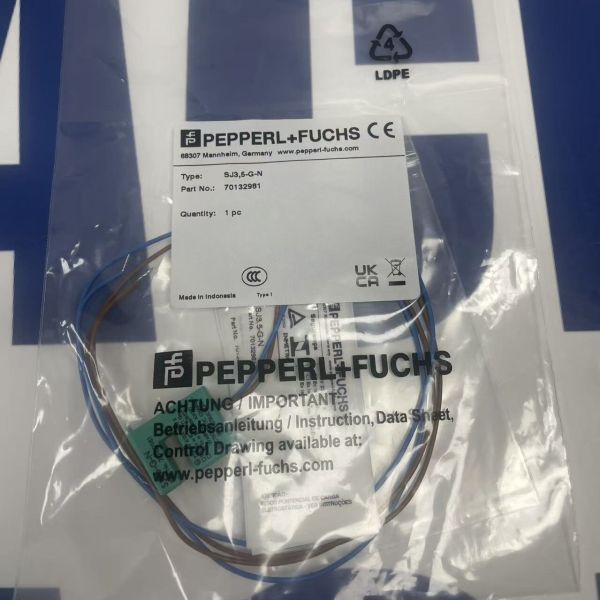

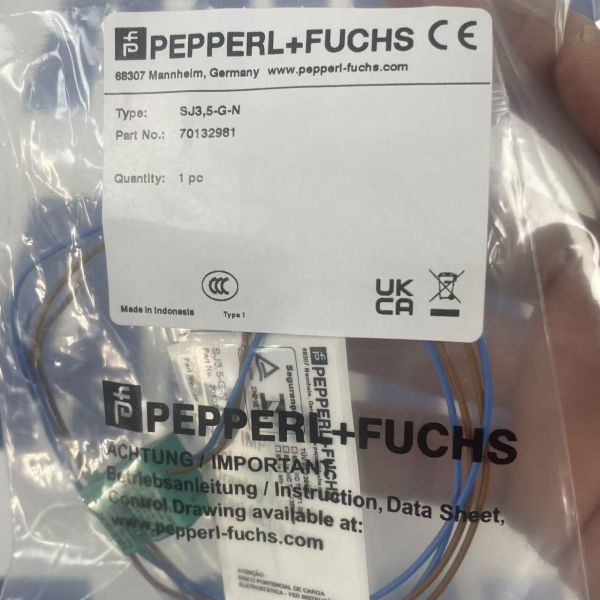

Pepperl+Fuchs SJ3,5-G-N | 3.5mm Slot Sensor, NAMUR, IP67
Pepperl+Fuchs SJ3,5-G-N | 3.5mm Slot Sensor, NAMUR, IP67
Pepperl+Fuchs SJ3,5-G-N | 3.5mm Slot Sensor, NAMUR, IP67
Pepperl+Fuchs SJ3,5-G-N | 3.5mm Slot Sensor, NAMUR, IP67
Pepperl+Fuchs SJ3,5-G-N | 3.5mm Slot Sensor, NAMUR, IP67
Pepperl+Fuchs SJ3,5-G-N | 3.5mm Slot Sensor, NAMUR, IP67
Specifications
Brand Name :
Pepperl+Fuchs
Model Number :
SJ3,5-G-N
Certification :
ATEX
Place of Origin :
ID
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T,XT,ALIPAY
Supply Ability :
100pcs per month
Delivery Time :
Negotiable
Packaging Details :
carton
Power Supply :
1
Ambient Temperature :
-
Electrical Rating :
G
Certifications :
S
Description

Pepperl+Fuchs SJ3,5-G-N | 3.5mm Slot Sensor, NAMUR, IP67

Pepperl+Fuchs SJ3,5-G-N inductive slot sensor. 3.5mm slot width, NAMUR output, normally closed (NC), 5-25V DC, 500mm PVC cable, IP67, -25°C to +100°C.

Product Overview

The Pepperl+Fuchs SJ3,5-G-N​ is a compact inductive slot sensor​ (fork sensor) designed for precise position detection of metallic objects. It features a 3.5 mm slot width​ and operates on the NAMUR​ principle, making it intrinsically safe and suitable for use in hazardous areas with a barrier. This sensor has a normally closed (NC) contact logic​ and comes with a 500 mm flexible PVC cable​ for direct connection to control systems.

Technical Specifications (Electrical & Functional)

Parameter

Specification

Manufacturer Part No.​

SJ3,5-G-N​

Sensor Type​

Inductive Slot (Fork)

Output Type​

NAMUR (2-wire)​

Switching Function​

Normally Closed (NC)​

Slot Width​

3.5 mm​

Operating Voltage​

5 ... 25 V DC​

Nominal Voltage​

8.2 V (Ri ≈ 1 kΩ)

Switching Frequency​

0 ... 3000 Hz​

Current Consumption​

≤ 3 mA (No Target)

Hysteresis​

0 ... 0.6 mm

Technical Specifications (Mechanical & Environmental)

Parameter

Specification

Housing Material​

PBT Plastic

Connection​

500 mm Flexible Cable​ (LiY, PVC)

Cable Cross-Section​

0.14 mm²

Degree of Protection​

IP67​

Operating Temperature​

-25 °C ... +100 °C​

Dimensions (L x W x H)​

19.5 mm x 10 mm x 15 mm

Weight​

Approx. 10 g

Standards​

EN/IEC 60947-5-2, -5-6

Key Features

  • NAMUR Output:​ Designed for use with intrinsic safety barriers, providing reliable operation in potentially explosive atmospheres.

  • High-Speed Detection:​ With a switching frequency of up to 3000 Hz, it is ideal for counting small, fast-moving metal parts.

  • Compact Form Factor:​ The small slot width (3.5 mm) and lightweight design allow for installation in extremely tight spaces.

Applications

  • High-speed counting of screws, nuts, and small metal components

  • Position verification of actuator flags in automated machinery

  • Safety-related position monitoring in process automation[citation:available:2][citation:available:4]
