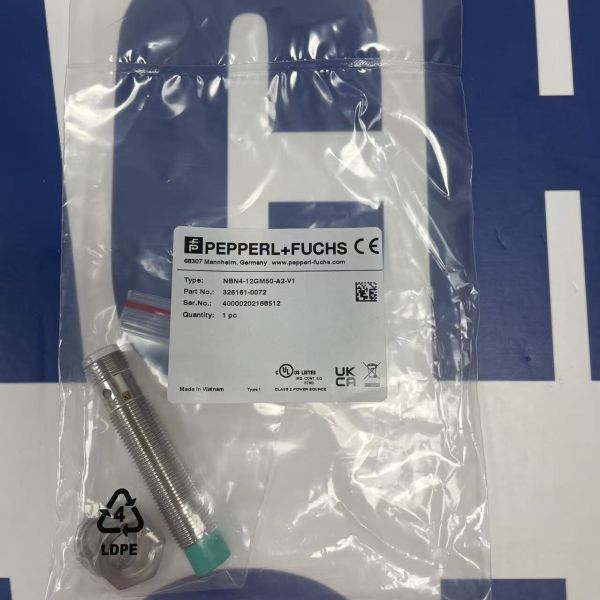

Pepperl+Fuchs NBN4-12GM50-A2-V1 | M12 PNP NO+NC Sensor, 4mm Range
Pepperl+Fuchs NBN4-12GM50-A2-V1 | M12 PNP NO+NC Sensor, 4mm Range
Pepperl+Fuchs NBN4-12GM50-A2-V1 | M12 PNP NO+NC Sensor, 4mm Range
Pepperl+Fuchs NBN4-12GM50-A2-V1 | M12 PNP NO+NC Sensor, 4mm Range
Pepperl+Fuchs NBN4-12GM50-A2-V1 | M12 PNP NO+NC Sensor, 4mm Range
Pepperl+Fuchs NBN4-12GM50-A2-V1 | M12 PNP NO+NC Sensor, 4mm Range
Specifications
Brand Name :
Pepperl+Fuchs
Model Number :
NBN4-12GM50-A2-V1
Certification :
ATEX
Place of Origin :
VN
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T,XT,ALIPAY
Supply Ability :
100pcs per month
Delivery Time :
Negotiable
Packaging Details :
carton
Power Supply :
1
Ambient Temperature :
-
Electrical Rating :
G
Certifications :
S
Description

Pepperl+Fuchs NBN4-12GM50-A2-V1 | M12 PNP NO+NC Sensor, 4mm Range

Pepperl+Fuchs NBN4-12GM50-A2-V1 inductive proximity sensor. 4mm sensing, PNP complementary output, M12 threaded barrel, 6-36V DC, IP68.

Product Overview

The Pepperl+Fuchs NBN4-12GM50-A2-V1​ is a standard-duty inductive proximity sensor​ with a 4 mm nominal sensing range. This M12 threaded barrel sensor features a complementary PNP output​ (NO+NC), providing both normally open and normally closed signals in a single 4-wire device. Housed in a nickel-plated brass barrel with an IP68 rating, it is designed for reliable detection of metallic objects in harsh industrial environments, including automation and material handling applications.

Technical Specifications (Electrical & Functional)

Parameter

Specification

Manufacturer / Series​

Pepperl+Fuchs / NBN4

Model​

NBN4-12GM50-A2-V1

Sensor Type​

Inductive Proximity (Non-Flush Mount)

Rated Operating Distance​

4 mm (Mild Steel)

Output Type​

PNP, Complementary (NO + NC)

Supply Voltage​

6 – 36 V DC

Switching Frequency​

0 – 2650 Hz

Current Consumption​

≤ 200 mA

Protections​

Reverse Polarity, Short-Circuit (Pulsing)

Technical Specifications (Mechanical & Environmental)

Parameter

Specification

Housing Shape / Size​

Threaded Barrel, M12 x 1

Housing Material​

Nickel-Plated Brass

Connection Type​

4-pin M12 Connector

Degree of Protection​

IP67 / IP68

Operating Temperature​

-40 °C to +85 °C

Sensing Face Material​

PBT (Plastic)

Mounting​

Non-Flush (2 x Locknuts)

Key Features

  • Dual Output Flexibility:​ Complementary PNP output provides both NO and NC switching logic for versatile circuit design.

  • Extended Temperature Range:​ Operates reliably from -40 °C to +85 °C, suitable for cold storage or hot machinery.

  • Robust Metal Housing:​ Nickel-plated brass construction offers high resistance to mechanical impact and corrosion.

  • High-Speed Sensing:​ Up to 2650 Hz switching frequency for fast-moving target detection.

Applications

  • Position sensing of metal parts on conveyors

  • End-of-stroke detection in pneumatic cylinders

  • Object presence verification in assembly machines

  • General factory automation control loops

[citation:web1][citation:web2][citation:web3]
