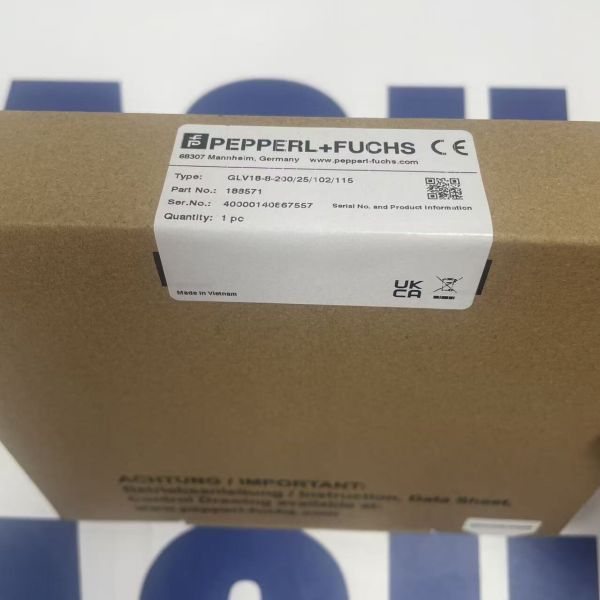

Pepperl+Fuchs GLV18-8-200/25/102/115 | M18 Diffuse Sensor, 200mm, NPN, Cable
Pepperl+Fuchs GLV18-8-200/25/102/115 | M18 Diffuse Sensor, 200mm, NPN, Cable
Pepperl+Fuchs GLV18-8-200/25/102/115 | M18 Diffuse Sensor, 200mm, NPN, Cable
Pepperl+Fuchs GLV18-8-200/25/102/115 | M18 Diffuse Sensor, 200mm, NPN, Cable
Pepperl+Fuchs GLV18-8-200/25/102/115 | M18 Diffuse Sensor, 200mm, NPN, Cable
Pepperl+Fuchs GLV18-8-200/25/102/115 | M18 Diffuse Sensor, 200mm, NPN, Cable
Specifications
Brand Name :
Pepperl+Fuchs
Model Number :
GLV18-8-20025102115
Certification :
ATEX
Place of Origin :
SG
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T,XT,ALIPAY
Supply Ability :
100pcs per month
Delivery Time :
Negotiable
Packaging Details :
carton
Power Supply :
1
Ambient Temperature :
-
Electrical Rating :
G
Certifications :
S
Description

Pepperl+Fuchs GLV18-8-200/25/102/115 | M18 Diffuse Sensor, 200mm, NPN, Cable

Pepperl+Fuchs GLV18-8-200/25/102/115 photoelectric sensor. M18 threaded barrel, diffuse mode, 50-200mm range, NPN output, 10-30V DC, 2m fixed cable, IP67.

Product Overview

The Pepperl+Fuchs GLV18-8-200/25/102/115​ is an M18 cylindrical diffuse mode photoelectric sensor​ from the Efficient Line​ series. It features a plastic housing​ and a front optical face​ for detecting objects without physical contact. Key attributes include an adjustable sensing range of 50-200 mm, a modulated visible red light source (640 nm)​ for immunity to ambient light, and a 2-meter fixed cable​ for direct wiring. This sensor is designed for standard automation tasks requiring reliable object detection in limited spaces.

Technical Specifications (Electrical & Optical)

Parameter

Specification

Manufacturer Part No.​

GLV18-8-200/25/102/115​

Operating Voltage​

10 ... 30 V DC​

Output Type​

1 NPN, Open Collector, Short-circuit Protected

Switching Current​

Max. 100 mA​

Switching Frequency​

500 Hz​

Light Source​

Modulated Visible Red LED (640 nm)

Detection Range​

50 ... 200 mm​ (Adjustable via Potentiometer)

Max. Detection Range​

0 ... 200 mm

Reference Target​

100 mm x 100 mm Kodak White

Ambient Light Immunity​

≤ 30000 Lux

Technical Specifications (Mechanical & Environmental)

Parameter

Specification

Housing​

Plastic (PC), M18 x 1 Threaded Barrel

Optical Face​

Front

Connection​

2 m Fixed Cable​ (PVC)

Cable Configuration​

3-wire (Brown: +Ub, Blue: 0V, Black: Output)

Degree of Protection​

IP67​

Operating Temperature​

-25 °C ... +60 °C​

Housing Length​

39.8 mm

Weight​

Approx. 75 g

Standard​

EN 60947-5-2

Key Features

  • Adjustable Sensitivity:​ Built-in potentiometer allows fine-tuning of the sensing range (50-200 mm) to adapt to different object colors and surfaces.

  • High Visibility:​ 360° LED indicator (green for power, yellow for signal) for easy status monitoring during commissioning and operation.

  • Fixed Cable Output:​ Pre-wired with a 2-meter cable (NPN output), eliminating the need for separate connectors and simplifying installation.

Applications

  • Object detection on conveyor belts and material handling systems

  • Presence sensing in packaging machinery and assembly automation

  • Level detection in bins and hoppers (non-contact)

Pepperl+Fuchs GLV18-8-200/25/102/115 | M18 Diffuse Sensor, 200mm, NPN, Cable
