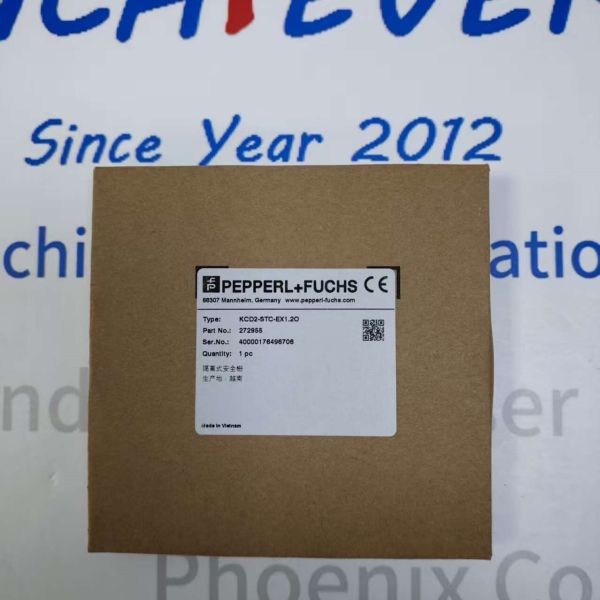

Pepperl+Fuchs KCD2-STC-Ex1 | HART-Transparent Isolated Barrier for 2-Wire Transmitters, 24V DC
Pepperl+Fuchs KCD2-STC-Ex1 | HART-Transparent Isolated Barrier for 2-Wire Transmitters, 24V DC
Pepperl+Fuchs KCD2-STC-Ex1 | HART-Transparent Isolated Barrier for 2-Wire Transmitters, 24V DC
Pepperl+Fuchs KCD2-STC-Ex1 | HART-Transparent Isolated Barrier for 2-Wire Transmitters, 24V DC
Pepperl+Fuchs KCD2-STC-Ex1 | HART-Transparent Isolated Barrier for 2-Wire Transmitters, 24V DC
Pepperl+Fuchs KCD2-STC-Ex1 | HART-Transparent Isolated Barrier for 2-Wire Transmitters, 24V DC
Specifications
Model Number :
KCD2-STC-EX1
Brand Name :
Pepperl+Fuchs
MOQ :
1
Delivery Time :
Negotiable
Payment Terms :
T/T,XT,ALIPAY
Ambient Temperature :
-
Supply Ability :
100pcs per month
Power Supply :
1
Price :
Negotiable
Electrical Rating :
G
Certification :
ATEX
Place of Origin :
VN
Packaging Details :
carton
Certifications :
S
Description
Pepperl+Fuchs KCD2-STC-Ex1 | HART-Transparent Isolated Barrier for 2-Wire Transmitters, 24V DC
Pepperl+Fuchs KCD2-STC-Ex1 isolated barrier for 2-wire 4-20mA HART transmitters. Ex ia/IIC, 24V DC supply, HART passthrough, DIN rail mount, SIL 2/3.

Product Overview

The Pepperl+Fuchs KCD2-STC-Ex1​ (Order No. KCD2-STC-Ex1) is a single-channel isolated barrier​ from the K-System (KCD2) series, designed to power and isolate a 2-wire (loop-powered) 4-20mA HART transmitter​ installed in a hazardous area (Zone 0/1, Division 1). It provides intrinsic safety (Ex ia) energy limitation​ to the field side and a HART-transparent 4-20mA analog output​ to the safe-area control system. The device is SIL 2/3 capable​ and mounts on a standard 35mm DIN rail.

Technical Specifications (Electrical & Function)

Parameter
Specification
Order Number​
KCD2-STC-Ex1​
Function​
Isolated Barrier for 2-Wire 4-20mA Transmitters (with HART Passthrough)
Supply Voltage (Terminals 7-8)​
20 … 30 V DC​ (Nominal 24 V DC)
Field-Side Output Voltage (Uo)​
≤ 28 V DC​ (Typical 24 V DC to power transmitter)
Field-Side Max. Current (Io)​
≤ 93 mA​ (sufficient for 2-wire Tx + HART)
Field-Side Max. Power (Po)​
≤ 0.65 W​
Safe-Area Output​
4 … 20 mA​ (Active / Passive — mirrors field current)
HART Transparency​
Yes — Full HART FSK Signal Passthrough​ (No HART filter / blocking)
Galvanic Isolation​
3 kV AC (Test) between Input/Output/Supply
Terminals​
Screw Clamp (Cage Clamp)

Technical Specifications (Mechanical & Certification)

Parameter
Specification
Mounting​
35 mm DIN Rail (EN 60715, Top-hat)​
Housing Width​
12.5 mm​ (K-System compact)
Connection Type​
Screw Terminals (solid/stranded wire)
Operating Temperature​
-20 … +60 °C​
Storage Temperature​
-40 … +85 °C
Protection Rating​
IP20​ (Enclosed in Cabinet)
Hazardous Area Approval​
ATEX / IECEx:​ [Ex ia] IIC T4/T6
FM / cCSAus:​ Class I, Div. 1, Groups A-D
Functional Safety (SIL)​
SIL 2 (SIL 3 via Architecture)​ per IEC 61508 / IEC 61511
Standards​
IEC 60079-0, IEC 60079-11, EN 50270 (EMC)

Key Features

  • HART Protocol Transparency:​ Passes HART FSK digital communication bidirectionally — enables remote configuration, trim, and diagnostics of smart transmitters without removing the barrier.
  • Galvanic 3-Way Isolation:​ Separates hazardous area, safe area, and power supply — protects control system from ground loops and transient surges.
  • Universal 2-Wire Transmitter Support:​ Powers any standard 4-20mA loop-powered HART transmitter (pressure, temperature, flow, level) in Ex ia circuits.
  • Compact DIN Rail Footprint:​ 12.5 mm width — high-density marshalling in system cabinets.

Applications

  • Hazardous Area Analog Loops:​ Connecting 4-20mA HART transmitters (e.g., Endress+Hauser, Yokogawa,) in Zone 1/Division 1​ to DCS/PLC analog input cards.
  • SIS & Process Control:​ SIL 2/3 capable — suitable for safety-related measurement loops where an isolated barrier is required.
  • Fieldbus Migration:​ Retrofit legacy non-smart loops with HART-enabled transmitters — barrier remains in place without rewiring.
Note: For 2-channel​ version see KCD2-STC-Ex1.2​ or KCD2-STC-Ex2​ (dual channel). For non-HART / filtered​ version (blocks digital comms), see KCD2-SD-Ex1.xxx. Always verify Entity Parameters (Uo, Io, Po, Ci, Li) against your transmitter's Ex ia certification before installation.
