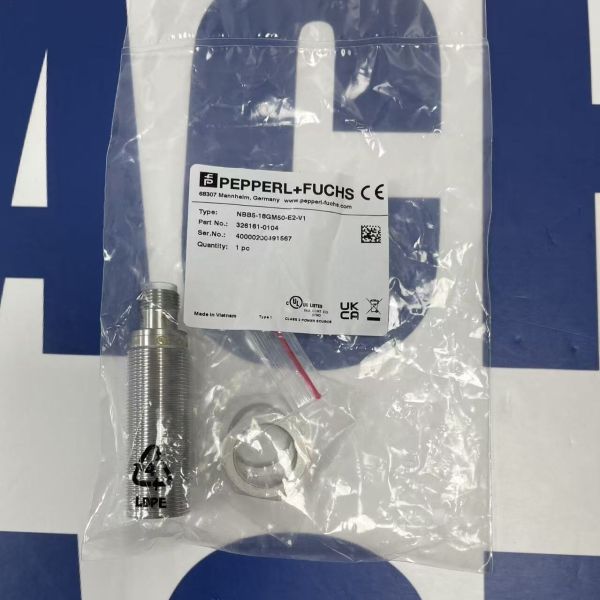

Pepperl+Fuchs NBB5-18GM50-E2-V1 | M18 PNP Inductive Sensor, 5mm Range
Pepperl+Fuchs NBB5-18GM50-E2-V1 | M18 PNP Inductive Sensor, 5mm Range
Pepperl+Fuchs NBB5-18GM50-E2-V1 | M18 PNP Inductive Sensor, 5mm Range
Pepperl+Fuchs NBB5-18GM50-E2-V1 | M18 PNP Inductive Sensor, 5mm Range
Specifications
Supply Ability :
100pcs per month
Packaging Details :
carton
Certification :
ATEX
Payment Terms :
T/T,XT,ALIPAY
Power Supply :
1
Ambient Temperature :
-
Place of Origin :
ID
Price :
Negotiable
MOQ :
1
Delivery Time :
Negotiable
Brand Name :
PEPPERL+FUCHS
Electrical Rating :
G
Model Number :
NBB5-18GM50-E2-V1
Certifications :
S
Description

Pepperl+Fuchs NBB5-18GM50-E2-V1 | M18 PNP Inductive Sensor, 5mm Range

Pepperl+Fuchs NBB5-18GM50-E2-V1 inductive proximity sensor. M18 brass housing, 5mm sensing range, PNP NO output, 6-36V DC, IP68, -40°C to +85°C.

Product Overview

The Pepperl+Fuchs NBB5-18GM50-E2-V1​ is an M18 cylindrical inductive proximity sensor​ designed for harsh industrial environments. It features a 5 mm sensing range​ and a robust brass housing​ with high resistance to shock and chemicals. Operating on a wide 6-36V DC​ supply, this 3-wire PNP normally open (NO)​ sensor is suitable for position detection of metallic objects in automation systems.

Technical Specifications (Electrical & Functional)

Parameter

Specification

Part Number​

NBB5-18GM50-E2-V1​

Sensor Type​

Inductive, Flush Mountable

Output Type​

PNP, Normally Open (NO)​

Rated Operating Distance​

5 mm​

Operating Voltage​

6 ... 36 V DC​

Max. Switching Current​

200 mA​

Voltage Drop (Ud)​

≤ 1 V

Switching Frequency​

0 ... 1950 Hz

Short-Circuit Protection​

Pulsing (Electronic)

Connection​

3-pin M12 Connector​

Technical Specifications (Mechanical & Environmental)

Parameter

Specification

Housing Material​

Brass, White Bronze Coated​

Housing Diameter​

18 mm​

Length​

66 mm

Mounting​

M18 x 1 Thread, 2 Nuts Included

Degree of Protection​

IP65, IP66, IP67, IP68, IP69​

Operating Temperature​

-40 °C ... +85 °C​

Sensing Face Material​

PBT (Green)

Target Material​

Mild Steel (18x18x1 mm)

Hysteresis​

typ. 5%

Standards​

EN IEC 60947-5-2, cULus

Key Features

  • Rugged Construction:​ Brass housing and high IP ratings ensure reliable operation in wet and dirty conditions.

  • Wide Voltage Range:​ Compatible with common 12V and 24V DC control systems.

  • High Switching Speed:​ Up to 1950 Hz for fast-moving object detection.

  • Extended Temperature Range:​ Operates reliably from -40°C to +85°C.

Applications

  • Position sensing of cylinders and actuators

  • Object detection on conveyor systems

  • Machine tool and packaging machinery automation
