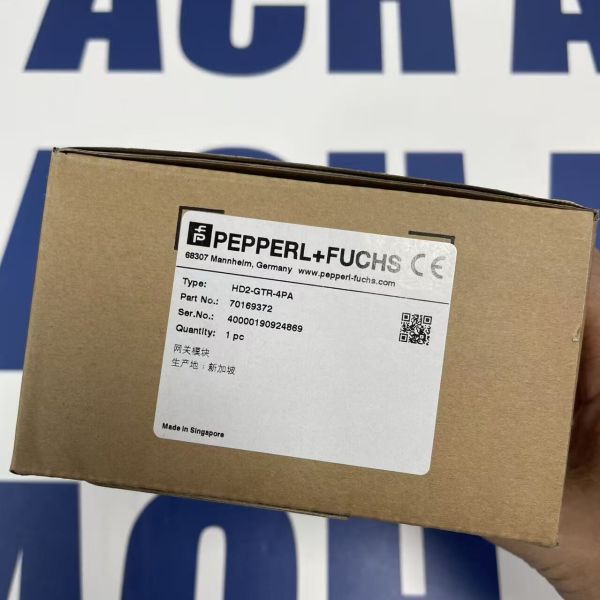

Packaging Details :
carton
Electrical Rating :
G
Model Number :
HD2-GTR-4PA
Description

Pepperl+Fuchs HD2-GTR-4PA | PROFINET to 4x PROFIBUS PA Gateway

Pepperl+Fuchs HD2-GTR-4PA fieldbus gateway. Converts PROFINET RT to 4 isolated PROFIBUS PA segments, 19.2-35V DC supply, IP20, Zone 2/Div. 2 rated.

Product Overview

The Pepperl+Fuchs HD2-GTR-4PA​ is a PROFIBUS gateway​ from the FieldConnex®​ series. It acts as a protocol converter, linking a PROFINET RT​ master network to up to four isolated PROFIBUS PA segments. Designed for process automation, it supports up to 32 devices per segment​ and is certified for use in Zone 2 / Class I Division 2​ hazardous areas. The device features a motherboard design for 35mm DIN rail​ mounting and is powered by a 24V DC​ nominal supply.

Technical Specifications (System & Electrical)

Parameter

Specification

Product Family​

FieldConnex® HD2 Series

Function​

PROFINET RT to 4x PROFIBUS PA Gateway​

Rated Supply Voltage​

19.2 ... 35 V DC​ (SELV/PELV)

Rated Current​

typ. 135 mA (at 24V DC)

Power Dissipation​

approx. 3.5 W

PROFIBUS PA Segments​

4​ (Galvanically Isolated)

Max. Devices per Segment​

32​

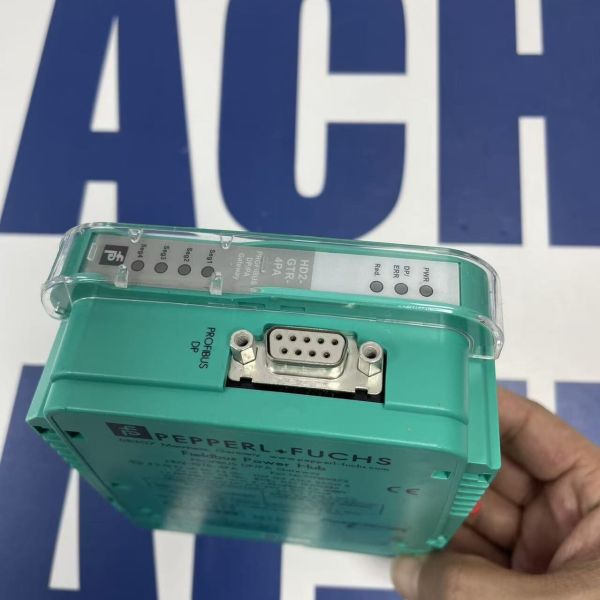

PROFIBUS DP Interface​

9-pin Sub-D socket

Galvanic Isolation​

50 V (PROFIBUS DP/Supply)

Technical Specifications (Physical & Environmental)

Parameter

Specification

Mounting​

35 mm DIN Rail​ (Motherboard Style)

Degree of Protection​

IP20​ (EN 60529)

Operating Temperature​

-40 °C ... +60 °C​

Storage Temperature​

-40 °C ... +85 °C

Relative Humidity​

< 95% (non-condensing)

Hazardous Area Approval​

Zone 2, II 3G Ex nA IIC T4
Class I Div. 2

Vibration Resistance​

1 g (58 ... 150 Hz)

Shock Resistance​

15 g, 11 ms

EMC​

EN 61326, EN 61326-3-1

Key Features

  • Segment Protection:​ Four independent, isolated PROFIBUS PA segments with individual short-circuit and overload protection.

  • PROFINET Integration:​ Seamless integration into PROFINET RT networks as an IO device with integrated webserver for diagnostics.

  • Harsh Environment Ready:​ Wide operating temperature range (-40°C to +60°C) and certifications for use in potentially explosive atmospheres (Zone 2).

  • Easy Configuration:​ Simple parameterization via GSDML file in the PLC engineering tool.

Applications

  • Process control systems in chemical and pharmaceutical plants

  • Integration of PROFIBUS PA field devices (e.g., pressure transmitters, level sensors) into PROFINET-based DCS

  • Remote I/O and gateway applications in oil & gas and water/wastewater treatment

Pepperl+Fuchs HD2-GTR-4PA | PROFINET to 4x PROFIBUS PA Gateway
