32GHz WR-28 WAVEGUIDE DUPLEXER
32GHz WR-28 WAVEGUIDE DUPLEXER
Specifications
Operating Frequency ( GHz ) :
15
Model Number :
VN-WGD-32-WR28
Return Loss (dB) :
≥18dB
MOQ :
5 pcs
Interface :
WR62 (BJ140)
Payment Terms :
L/C, D/A, D/P, T/T
Islotation (Lchannel toH channel) :
≥65dB
Place of Origin :
China
Flatness(dB) :
≤0.5dB
Certification :
ISO 9000 ROHS
Part Number :
VN-WGD-32-WR28
Brand Name :
Vinncom
Insertion Loss(dB) :
≤1.5dB
Price :
negotiable
Supply Ability :
500
Description

32GHz WR-28 WAVEGUIDE DUPLEXER

  • Protects sensitive receivers from high‑power transmitter energy

  • Available in circulator‑based and filter‑based architectures

  • Rugged and precision‑machined waveguide construction

  1. Verify frequency assignments –
    A WAVEGUIDE DUPLEXER is factory‑tuned for specific Tx and Rx frequency bands; ensure that your system frequencies match the WAVEGUIDE DUPLEXER specifications.

  2. Terminate any unused ports –
    If a WAVEGUIDE DUPLEXER has an extra port (e.g., circulator‑based designs), terminate it with a WAVEGUIDE LOAD to prevent reflections.

  3. Power rating verification –
    Before operating a WAVEGUIDE DUPLEXER, verify the average and peak power ratings for the Tx port.

  4. Observe port labeling –
    Never swap the Tx and Rx ports of a WAVEGUIDE DUPLEXER, as the filters are frequency‑specific and the isolation will be lost if reversed.

  5. Pulse radar systems –

A WAVEGUIDE DUPLEXER allows the radar to transmit a high‑power pulse through the antenna and then switch to receive mode to listen for echoes, sharing the same antenna.

6.Continuous‑wave (CW) radar and FMCW radar –

A WAVEGUIDE DUPLEXER enables simultaneous transmit and receive operation for Doppler and frequency‑modulated radar.

Part Number VN-WGD-32-WR28
Operating Frequency ( GHz ) 32
Flatness(dB) ≤0.5dB

Islotation (Lchannel toH channel)

 ≥65dB
Return Loss (dB) ≥18dB
Insertion Loss(dB) ≤1.5dB
Interface WR28 (BJ320)

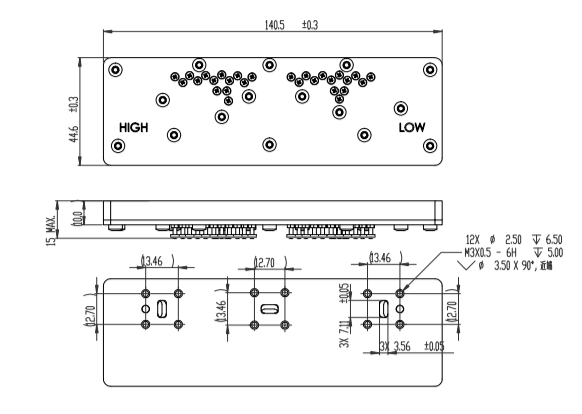

Dimension(mm) As below
Operating Humidity 5-95%
Operating Temperature ( ℃ ) -40 ~ +80
ROHS Compliance Yes
