6GHz WAVEGUIDE DUPLEXER
6GHz WAVEGUIDE DUPLEXER
Specifications
Model Number :
VN-WGD-OMT-06
MOQ :
5 pcs
Part Number :
VN-WGD-OMT-06
Rejections(High to ANT) :
≥70dB@f1-f2 ≥50dB@30MHz-f1 ≥40dB@(f4+DS)-2*f3 ≥30dB@2*f3-26GHz
Insertion Loss(dB) :
≤1.8dB
Operating Frequency ( GHz ) :
6
Payment Terms :
L/C, D/A, D/P, T/T
Group Delay Variation :
≤15ns (Random ±30MHz span)
Rejections(Low to ANT) :
≥70dB@f3-f4 ≥50dB@30MHz-(f1-DS) ≥40dB@f4-2*f1 ≥30dB@2*f1-26GHz
Brand Name :
Vinncom
Place of Origin :
China
Certification :
ISO 9000 ROHS
Price :
negotiable
Return Loss (dB) :
≥15.0dB
Supply Ability :
500
Flatness(dB) :
≤0.8dB(Random ±30MHz span)
Description

6GHz WAVEGUIDE DUPLEXER

  • Factory‑tuned for specific Tx/Rx frequency pairs

  • Rugged and precision‑machined waveguide construction

  • Frequency‑selective operation (separates Tx and Rx bands)

How to Use a WAVEGUIDE DUPLEXER (Usage Method)

  1. Identify the three ports –
    A WAVEGUIDE DUPLEXER has three ports clearly labeled: Antenna port (common), Transmitter port (Tx), and Receiver port (Rx).

  2. Connect the antenna to the common port –
    Connect the antenna feed to the common (Antenna) port of the WAVEGUIDE DUPLEXER.

  3. Connect transmitter to Tx port –
    Connect the transmitter or power amplifier output to the Tx port of the WAVEGUIDE DUPLEXER.

  4. Terminate any unused ports –If a WAVEGUIDE DUPLEXER has an extra port (e.g., circulator‑based designs), terminate it with a WAVEGUIDE LOAD to prevent reflections.

  5. Power rating verification –
    Before operating a WAVEGUIDE DUPLEXER, verify the average and peak power ratings for the Tx port.

Part Number VN-WGD-OMT-06
Operating Frequency ( GHz ) 6
Insertion Loss(dB) ≤1.8dB
Flatness(dB) ≤0.8dB(Random ±30MHz span)
Group Delay Variation ≤15ns (Random ±30MHz span)
Return Loss (dB) ≥15dB
Rejections(Low to ANT)

≥70dB@f3-f4

≥50dB@30MHz-(f1-DS)

≥40dB@f4-2*f1

≥30dB@2*f1-26GHz
Rejections(High to ANT)

≥70dB@f1-f2

≥50dB@30MHz-f1

≥40dB@(f4+DS)-2*f3

≥30dB@2*f3-26GHz
Cross-polar Isolation ≥35dB(25)

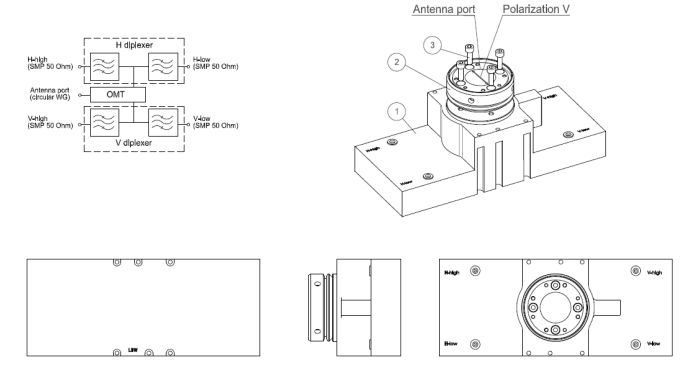

Dimension(mm) As below
ROHS Compliance Yes

6GHz WAVEGUIDE DUPLEXER
