80GHz WR-12 WAVEGUIDE DUPLEXER
80GHz WR-12 WAVEGUIDE DUPLEXER
Specifications
Model Number :
VN-WGD-80-WR12
MOQ :
5 pcs
Part Number :
VN-WGD-80-WR12
Insertion Loss(dB) :
≤1.0dB
Operating Frequency ( GHz ) :
80
Payment Terms :
L/C, D/A, D/P, T/T
Islotation (Lchannel toH channel) :
≥70dB
Interface :
WR12 (BJ740)
Certification :
ISO 9000 ROHS
Brand Name :
Vinncom
Place of Origin :
China
Price :
negotiable
Return Loss (dB) :
≥15.5dB
Supply Ability :
500
Flatness(dB) :
≤0.3dB
Description

80GHz WR-12 WAVEGUIDE DUPLEXER

  • Single‑antenna sharing between Tx and Rx (reduces hardware)

  • Low insertion loss in both Tx and Rx paths

  • Rugged and precision‑machined waveguide construction

  1. Aerospace and avionics (weather radar, collision avoidance) –
    A WAVEGUIDE DUPLEXER is a critical component in airborne radar systems that use a single radome‑mounted antenna.

  2. Marine and navigation radar –
    A WAVEGUIDE DUPLEXER allows the shipboard radar to transmit and receive through the same rotating antenna.

  3. Test and measurement setups –
    A WAVEGUIDE DUPLEXER is used in laboratory environments to simulate full‑duplex communication or to separate signals in a shared test fixture.

  4. Medical microwave systems –
    A WAVEGUIDE DUPLEXER separates the therapeutic power from the reflected‑power monitoring receiver in diathermy systems.

  5. Radio astronomy –
    A WAVEGUIDE DUPLEXER enables a single large dish to be used for both pulsed radar transmissions (e.g., planetary radar) and sensitive reception.

  6. Base station and repeater systems –
    A WAVEGUIDE DUPLEXER is used in microwave repeaters to separate Tx and Rx signals in the same frequency‑duplexed link.

Part Number VN-WGD-80-WR12
Operating Frequency ( GHz ) 80
Flatness(dB) ≤0.3dB

Islotation (Lchannel toH channel)

 ≥70dB
Return Loss (dB) ≥15.5dB
Insertion Loss(dB) ≤1.0dB
Interface WR12 (BJ740)

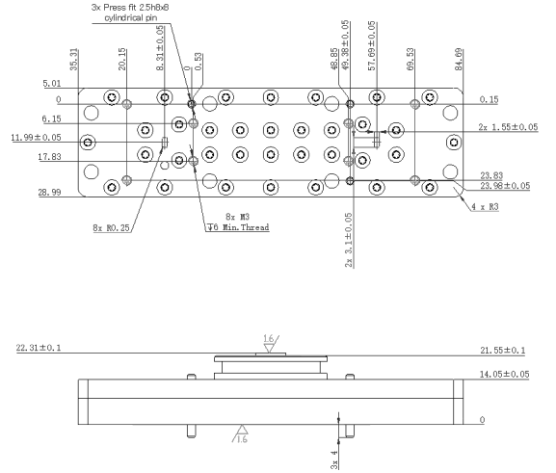

Dimension(mm) As below
Operating Humidity 5-95%
Operating Temperature ( ℃ ) -40 ~ +85
ROHS Compliance Yes

80GHz WR-12 WAVEGUIDE DUPLEXER
