15GHz WR-62 WAVEGUIDE DUPLEXER
15GHz WR-62 WAVEGUIDE DUPLEXER
Specifications
Model Number :
VN-WGD-15-WR62
MOQ :
5 pcs
Part Number :
VN-WGD-15-WR62
Insertion Loss(dB) :
≤1.4dB
Operating Frequency ( GHz ) :
15
Payment Terms :
L/C, D/A, D/P, T/T
Islotation (Lchannel toH channel) :
≥70dB
Interface :
WR62 (BJ140)
Certification :
ISO 9000 ROHS
Brand Name :
Vinncom
Place of Origin :
China
Price :
negotiable
Return Loss (dB) :
≥18dB
Supply Ability :
500
Flatness(dB) :
≤0.5dB
Description

15GHz WR-62 WAVEGUIDE DUPLEXER

  • Protects sensitive receivers from high‑power transmitter energy

  • Improves system sensitivity by reducing transmitter leakage into receiver

  • Frequency range from 1 GHz to 110 GHz+

A WAVEGUIDE DUPLEXER provides high isolation between the transmitter and receiver ports, preventing the high‑power transmit signal from damaging the sensitive receiver front‑end.
In a circulator‑based WAVEGUIDE DUPLEXER, the device uses a WAVEGUIDE CIRCULATOR with two band‑pass filters attached to two ports—the circulator directs Tx energy to the antenna and Rx energy from the antenna to the receiver.
In a filter‑based WAVEGUIDE DUPLEXER (using a magic T or T‑junction), the Tx and Rx signals are separated by frequency‑selective filters; the Tx filter passes only the Tx band to the antenna, and the Rx filter passes only the Rx band from the antenna.

Connect receiver to Rx port –
Connect the receiver or LNA input to the Rx port of the WAVEGUIDE DUPLEXER.

Match flange types –
A WAVEGUIDE DUPLEXER requires the same flange type (UG, CPR, cover, or choke) on all three ports as the connected waveguide components.

Verify frequency assignments –
A WAVEGUIDE DUPLEXER is factory‑tuned for specific Tx and Rx frequency bands; ensure that your system frequencies match the WAVEGUIDE DUPLEXER specifications.

Part Number VN-WGD-15-WR62
Operating Frequency ( GHz ) 15
Flatness(dB) ≤0.5dB

Islotation (Lchannel toH channel)

 ≥70dB
Return Loss (dB) ≥18dB
Insertion Loss(dB) ≤1.4dB
Interface WR62 (BJ140)

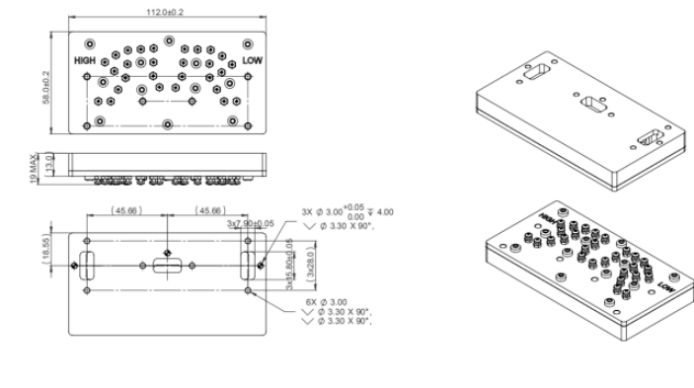

Dimension(mm) As below
Operating Humidity 5-95%
Operating Temperature ( ℃ ) -40 ~ +80
ROHS Compliance Yes
15GHz WR-62 WAVEGUIDE DUPLEXER
