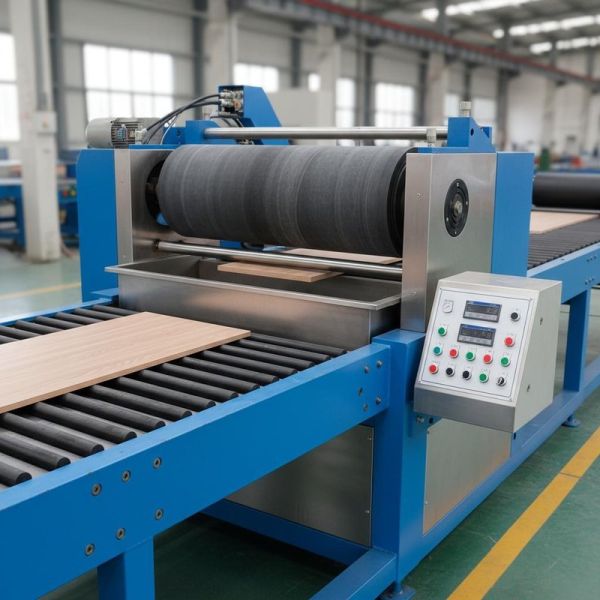

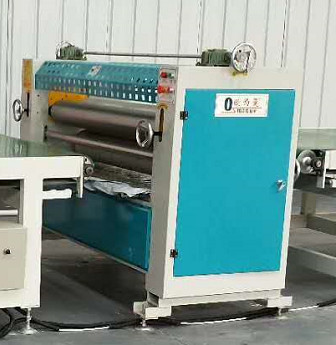

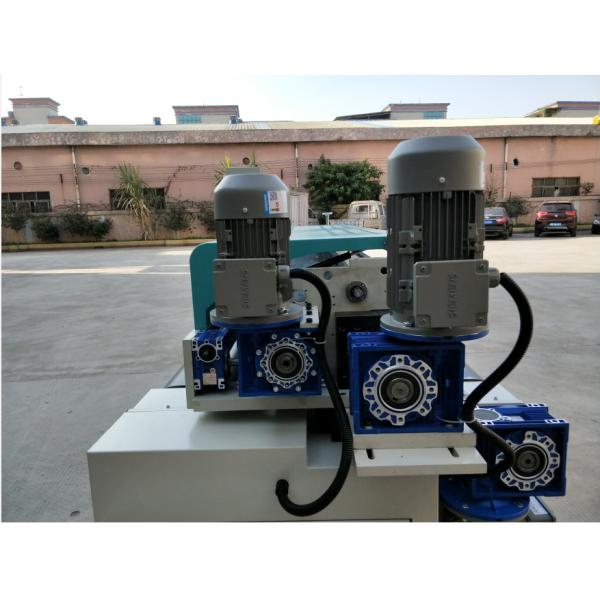

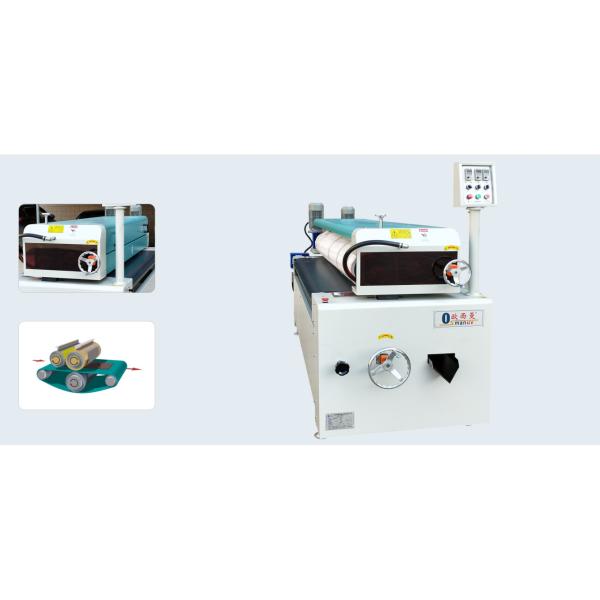

Wide-Width Heavy-Duty Single Roller Coater for Furniture Board Finishing
Wide-Width Heavy-Duty Single Roller Coater for Furniture Board Finishing
Wide-Width Heavy-Duty Single Roller Coater for Furniture Board Finishing
Wide-Width Heavy-Duty Single Roller Coater for Furniture Board Finishing
Wide-Width Heavy-Duty Single Roller Coater for Furniture Board Finishing
Wide-Width Heavy-Duty Single Roller Coater for Furniture Board Finishing
Wide-Width Heavy-Duty Single Roller Coater for Furniture Board Finishing
Wide-Width Heavy-Duty Single Roller Coater for Furniture Board Finishing
Wide-Width Heavy-Duty Single Roller Coater for Furniture Board Finishing
Wide-Width Heavy-Duty Single Roller Coater for Furniture Board Finishing
Wide-Width Heavy-Duty Single Roller Coater for Furniture Board Finishing
Wide-Width Heavy-Duty Single Roller Coater for Furniture Board Finishing
Specifications
Brand Name :
OSMANUV
Model Number :
OSM-GT-600
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
Negotiation
Delivery Time :
30~40 Days
Packaging Details :
Wooden Box
Packaging Material :
Wood,Plastic,Metal,Paper,Glass
Convey Direction :
From left to right
Glass Thickness :
2mm
Roller Speed :
0-20m/min
Conveyor Belt :
PVC
Machinery Test Report :
Provided
Control System :
PLC
Drying Type :
UV Curing
Description
Wide-Width Heavy-Duty Single Roller Coater for Furniture Board Finishing
Production Line Composition

This heavy-duty single roller coating line is engineered for continuous, high-volume finishing of large-format furniture panels and consists of:

  • Automatic Panel Feeding Conveyor: Synchronized infeed system with variable speed control
  • Precision Single Roller Coating Head: Core coating unit with chrome-plated dosing roller and rubber applicator roller
  • Integrated Coating Circulation System: Closed-loop paint supply with 100% coating recovery
  • PLC Control Cabinet with Touchscreen HMI: Centralized control system for parameter adjustment
  • Automatic Unloading Conveyor: Outfeed section with optional stacking unit
  • Optional UV Drying Tunnel: Modular drying section for instant curing
Product Overview

The Wide-Width Heavy-Duty Single Roller Coater is a professional coating machine engineered for applying primers, sealers, fillers, topcoats, UV coatings, water-based coatings, oils, and stains onto flat furniture board surfaces. Suitable for various materials including MDF, particleboard, plywood, solid wood panels, and other flat sheet materials.

Utilizing a precision-engineered single roller system, the machine delivers uniform, pinhole-free coating films with exceptional smoothness, effectively preventing issues such as sagging, streaking, and missed coating. The heavy-duty configuration features high-strength steel construction and premium components for long-term stable operation.

Technical Specifications
Parameter Specification / Description
Model Designation Customizable to customer requirements
Effective Working Width Up to 2600 mm (standard: 1300mm, 1600mm, 2100mm, 2600mm)
Working Thickness Range 2 - 80 mm (customizable up to 100 mm)
Minimum Working Length 300 mm
Feeding / Conveying Speed 0 - 30 m/min (stepless adjustable)
Coating Thickness (Wet) Adjustable: 0.01 - 2.0 mm
Coating Application Weight 5 - 25 g/m² (dry, customizable)
Applicator Roller Diameter Φ250 mm / Φ300 mm (customizable)
Dosing Roller Diameter Φ150 mm / Φ164 mm (customizable)
Total Installed Power 7.5 - 12 kW (customizable)
Power Supply 380V / 50Hz / 3-phase (configurable)
Control System PLC with color touchscreen HMI, recipe storage
Safety Certifications CE certified, ISO9001:2015 compliant
Applications

Ideal for uniform coating applications across multiple sectors:

  • Furniture manufacturing: Coating of MDF, particleboard, plywood for cabinets, wardrobes, and shelving
  • Door and window finishing: Application of primers and topcoats on wooden doors and window frames
  • Flooring production: UV coating and sealing of engineered wood and laminate flooring
  • Decorative panel processing: Coating of wall panels, composite boards, and high-pressure laminates
  • Kitchen and bathroom cabinets: Primer and topcoat application on cabinet door panels
Customization Options

The line configuration is fully customizable to fit specific factory requirements:

  • Working width customizable from 600mm to 2600mm
  • Roller diameter and hardness customizable based on coating type
  • Custom roller configurations for specialized applications
  • Integrated pre-treatment section for enhanced coating adhesion
  • Modular drying/curing section tailored to coating chemistry
  • Additional features including automatic viscosity control and double-sided coating
Key Features
  • Wide-Width Capability: Handles large-format panels up to 2600mm in single pass
  • Precision Coating Control: Adjustable pressure and variable roller speeds
  • High Material Utilization: 100% coating recovery with closed-loop system
  • Tool-Free Roller Maintenance: Quick color changes and cleaning in under 10 minutes
  • Heavy-Duty Construction: High-strength steel frame for continuous operation
  • User-Friendly Control: Intuitive touchscreen with recipe storage
  • Energy Efficiency: Optional energy-saving features available
Support and Services
  • Installation & Commissioning: On-site support for full line integration
  • Operator Training Programs: Comprehensive training covering operation and maintenance
  • Technical Hotline & Remote Support: Responsive assistance via phone and remote diagnostics
  • Preventive Maintenance Plans: Scheduled programs to maximize uptime
  • Spare Parts Availability: Lifetime supply of genuine spare parts
  • Process Optimization Consulting: Expert guidance on coating selection and efficiency
Packing and Shipping
  • Packaging: High-quality export wooden case with shock-proof foam
  • Shipping: Worldwide shipping with flexible logistics options
  • Delivery Time: 30-45 days standard; 45-60 days customized
  • Port of Loading: Major Chinese ports with full export documentation
Frequently Asked Questions
What types of coatings can be applied with this machine?
The machine is compatible with a wide range of coating materials including UV-curable coatings, water-based paints and primers, solvent-based coatings, PU and NC lacquers, oils, stains, waxes, fillers, and adhesives.
Can the coating thickness be customized for different applications?
Yes, coating thickness is fully adjustable via PLC-controlled parameters, typically ranging from 0.01mm to 2.0mm wet film thickness, to meet specific requirements for primers (thicker) or topcoats (thinner).
What is the maximum panel width this machine can handle?
The standard configuration handles up to 1300mm working width, but the machine is fully customizable up to 2600mm to accommodate large-format furniture panels and decorative building materials.
How easy is it to change colors or coating materials?
Very easy. The applicator roller can be removed without tools for quick cleaning, and the closed-loop circulation system allows for rapid material changeover. Color change typically takes 10-15 minutes.
