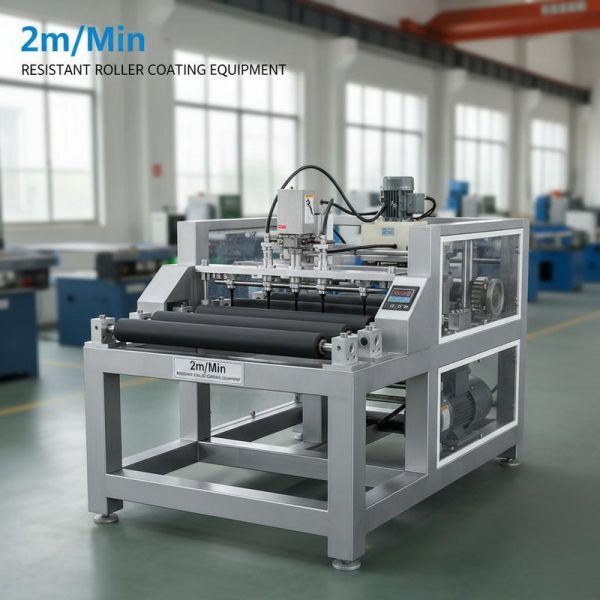

2m/Min Resistant Roller Coating Equipment 300mm Machining Length
2m/Min Resistant Roller Coating Equipment 300mm Machining Length
2m/Min Resistant Roller Coating Equipment 300mm Machining Length
2m/Min Resistant Roller Coating Equipment 300mm Machining Length
2m/Min Resistant Roller Coating Equipment 300mm Machining Length
2m/Min Resistant Roller Coating Equipment 300mm Machining Length
Specifications
Brand Name :
Osmanuv
Model Number :
OSM-GTJ-920I
Place of Origin :
CHINA
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T,Western Union
Delivery Time :
35-45 Working days
Packaging Details :
Wooden Box
Certification :
ISO9001 And CE
Supply Ability :
According to customer's demand
Product Name :
Double roll coating machine
Color :
Computer white / Green / Blue
Effecive width :
920mm
Coating Roll :
Silicone Rollet
Power :
10 KW
Weight :
1500KG
Description
2m/Min Resistant Roller Coating Equipment 300mm Machining Length
Product Overview

This advanced roller coating equipment is designed for high-precision surface coating applications across various materials including wood, plastic, and metal products. The system ensures smooth, uniform paint surfaces with excellent fullness and consistent color quality.

Key Features
  • Versatile application for wood, plastic, and metal products
  • Produces smooth surfaces with excellent fullness and no chromatic difference
  • Independent transducer and reactor control for electrooptic and rubber rollers ensuring precision
  • Imported PU doctor blade with anti-abrasive properties and solvent resistance
  • Compatible with various paint types including PU, VU, NC with zero wastage paint reclamation
  • Precise coating control between 5-10g/m²
Technical Specifications
Parameter Specification
Effective working width 920 mm
Effective processing thickness 2-50 mm
Minimum processing length 300 mm
Transmission speed 2-15 m/min
Cots roller diameter ￠300 mm
Measuring wheel diameter ￠180 mm
Diameter of anti-grain wheel ￠100 mm
Pressure wheel diameter ￠70 mm
Cots length 1450 ±0.1 mm
Measuring wheel length 1450 ±0.1 mm
Anti-grain wheel length 1450 ±0.1 mm
Length of pressure wheel 1220 mm
Machine inner width 1650 mm
Machine length 4000 mm
Machine height Conveyor belt is 850±30mm above the ground
2m/Min Resistant Roller Coating Equipment 300mm Machining Length
Frequently Asked Questions
Q: Are you trading company or manufacturer?
A: We are a manufacturer with independent import and export rights. Our factory is located in Guangdong, China.
Q: How can I know your machine has good quality?
A: We provide sample testing on our machines with video documentation. Factory visits are also available. Our products are widely used in China, Southeast Asia, South America, and Europe.
Q: What certifications do you have?
A: Our production follows GMP & ISO standards and our products have passed CE certification for export.
Q: What is your Quality Warranty?
A: One year warranty with lifelong maintenance and technical support.
