Specifications
Brand Name :
Osmanuv
Model Number :
OSM-GTJ-920I
Place of Origin :
CHINA
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T,Western Union
Delivery Time :
35-45 Working days
Packaging Details :
Wooden Box
Certification :
ISO9001 And CE
Supply Ability :
According to customer's demand
Product Name :
Double roll coating machine
Color :
Computer white / Green / Blue
Effecive width :
920mm
Coating Roll :
Silicone Rollet
Power :
10 KW
Weight :
1500KG
Description

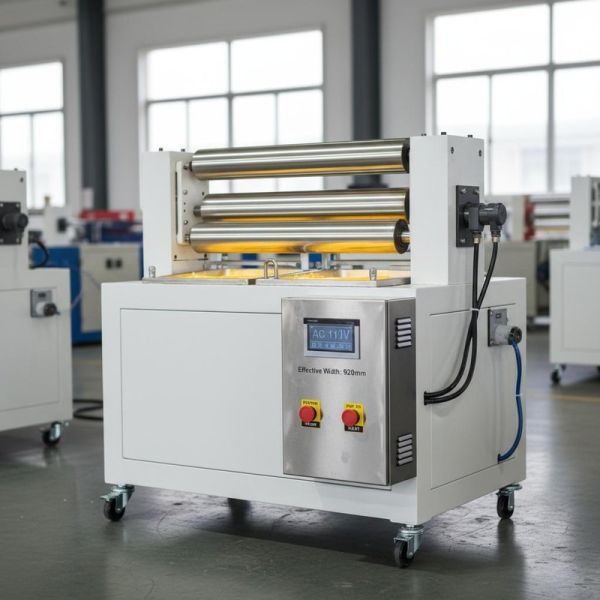

AC 110v White Double Hot Melt Roll Coater 920mm Effective Width
This high-performance roll coater is designed for coating various materials including wood, plastic, and metal products. It ensures smooth surface finishes with excellent fullness and consistent color application.
Key Features
  • Suitable for wood, plastic, and metal products with smooth, full surface finishes and no color difference
  • Independent transducer and reactor control for electrooptic and rubber rollers ensuring precision operation
  • Imported PU doctor blade with excellent abrasion resistance and solvent compatibility
  • Compatible with various paint types including PU, VU, NC with zero-waste paint reclamation system
  • Precise coating control between 5-10g/m²
Technical Specifications
Effective working width 920 mm
Effective processing thickness 2-50 mm
Minimum machining length 300 mm
Transmission speed 2-15 m/min
Cots roller diameter ￠300 mm
Measuring wheel diameter ￠180 mm
Diameter of anti-grain wheel ￠100 mm
Pressure wheel diameter ￠70 mm
Cots length 1450 ±0.1 mm
Measuring wheel length 1450 ±0.1 mm
Anti-grain wheel length 1450 ±0.1 mm
Length of pressure wheel 1220 mm
Machine inner width 1650 mm
Machine length 4000 mm
Machine height Conveyor belt is 850±30mm above the ground
AC 110v White Double Hot Melt Roll Coater 920mm Effecive Width
Frequently Asked Questions
Are you a trading company or manufacturer?
We are a manufacturer with independent import and export rights. Our factory is located in Guangdong, China.
How can I verify your machine quality?
We provide sample testing on our machines with video documentation. Factory visits are welcome. Our products are widely used in China, Southeast Asia, South America, and Europe.
What certifications do you have?
Our production follows GMP & ISO standards and our products have passed CE certification for export.
What is your Quality Warranty?
One year warranty with lifelong maintenance and technical support.
