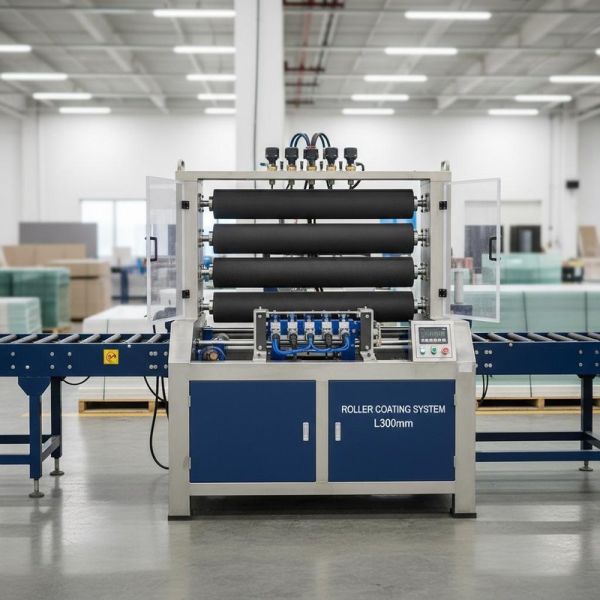

L300mm 20m/Min Roller Coating Equipment For Glass Magnesium Board
L300mm 20m/Min Roller Coating Equipment For Glass Magnesium Board
L300mm 20m/Min Roller Coating Equipment For Glass Magnesium Board
L300mm 20m/Min Roller Coating Equipment For Glass Magnesium Board
L300mm 20m/Min Roller Coating Equipment For Glass Magnesium Board
L300mm 20m/Min Roller Coating Equipment For Glass Magnesium Board
L300mm 20m/Min Roller Coating Equipment For Glass Magnesium Board
L300mm 20m/Min Roller Coating Equipment For Glass Magnesium Board
L300mm 20m/Min Roller Coating Equipment For Glass Magnesium Board
L300mm 20m/Min Roller Coating Equipment For Glass Magnesium Board
L300mm 20m/Min Roller Coating Equipment For Glass Magnesium Board
L300mm 20m/Min Roller Coating Equipment For Glass Magnesium Board
L300mm 20m/Min Roller Coating Equipment For Glass Magnesium Board
L300mm 20m/Min Roller Coating Equipment For Glass Magnesium Board
L300mm 20m/Min Roller Coating Equipment For Glass Magnesium Board
L300mm 20m/Min Roller Coating Equipment For Glass Magnesium Board
Specifications
Brand Name :
Osmanuv
Model Number :
OSM-GT-1320T
Place of Origin :
CHINA
MOQ :
1 Set
Price :
Negotiable
Delivery Time :
35-45 Working days
Payment Terms :
T/T,Western Union
Packaging Details :
Wooden Box
Certification :
ISO9001 And CE
Supply Ability :
According to customer's demand
Product Name :
Full-precision double-roll coating machine (positive and negative roller)
Color :
Computer White + Grass Green
Size :
1800mm length × 2300mm width × 1520mm height
Effective working size :
a, effective width: 1320mm; b, thickness: 3-80mmc, length (shortest): 300mm.
Conveying direction :
from left to right
Conveying speed :
5-20m/min
Description
L300mm 20m/Min Roller Coating Equipment For Glass Magnesium Board
This specialized roller coating equipment is designed for glass magnesium board applications, delivering high-quality surface coatings with precision and efficiency.
Key Features
  • Suitable for various materials including wood, plastic, and metal flat coatings
  • Produces smooth, full, and uniform surface finishes without color differences
  • Independent frequency converter and deceleration control for electro-optical wheel and rubber wheel operation
  • Equipped with imported PU scraper, wear-resistant and solvent-resistant
  • Compatible with various paints including PU, UV, and NC with efficient paint recovery
  • Precise coating control between 5-10g/m²
Technical Specifications
Material Shell made of 1.5mm steel plate bending and welding, surface treated with liquid paint, supporting wall made of 20cm steel plate (A3 material)
Coating System Two groups of rolling coating system, each consisting of steel roller and silica gel wheel, with independent lifting capability
Coating Rollers Diameter: ￠250mm, Length: 1470mm, Japanese quality silicone, wear-resistant with good elasticity, hardness customizable between 30-50 degrees, equipped with KHV bearings and Taiwan TDA frequency converter
Metering Wheel Diameter: ￠130mm, Length: 1470mm, made from 45# seamless steel tube with CO² welding, surface fine grinding, dynamic balance with runout less than 0.05mm, hard chrome plating with polished bright finish, direct plug-in connection drive
Conveyor Roller Power: 1.5KW, Diameter: ￠130mm, Length: 1320mm, made from 45# seamless steel tube with CO² welding, surface fine grinding, dynamic balance with runout less than 0.05mm, hard chrome plating with polished bright finish, direct plug-in connection drive
Conveyor Belt Green PVC plane conveyor belt for smooth transportation and long service life
L300mm 20m/Min Roller Coating Equipment For Glass Magnesium Board L300mm 20m/Min Roller Coating Equipment For Glass Magnesium Board
Frequently Asked Questions
Are you a trading company or manufacturer?
We are a manufacturer with independent import and export rights. Our factory is located in Guangdong, China.
How can I know your machine has good quality?
We provide sample testing with video documentation, and factory visits are available. Our products are widely used in China, Southeast Asia, South America, and Europe.
What certifications do you have?
Our production follows GMP & ISO standards, and our products have passed CE certification for exporting.
What is your Quality Warranty?
One year warranty with lifelong maintenance and technical support.
