9KW 850mm Height Wood Uv Roller Coating Machine With Motor
9KW 850mm Height Wood Uv Roller Coating Machine With Motor
9KW 850mm Height Wood Uv Roller Coating Machine With Motor
9KW 850mm Height Wood Uv Roller Coating Machine With Motor
9KW 850mm Height Wood Uv Roller Coating Machine With Motor
9KW 850mm Height Wood Uv Roller Coating Machine With Motor
9KW 850mm Height Wood Uv Roller Coating Machine With Motor
9KW 850mm Height Wood Uv Roller Coating Machine With Motor
Specifications
Brand Name :
Osmanuv
Model Number :
OSM-TB-1320
Place of Origin :
CHINA
MOQ :
1 Set
Price :
Negotiable
Delivery Time :
35-45 Working days
Payment Terms :
T/T,Western Union
Packaging Details :
Wooden Box
Certification :
ISO9001 And CE
Supply Ability :
According to customer's demand
Poduct Name :
Multi-function coating machine
Size :
2100mm x 2300 mm x 1520mm
Color :
Computer white / Green
Operational height :
850-900mm
Total Power :
9KW
Warranty :
1 Year
Description

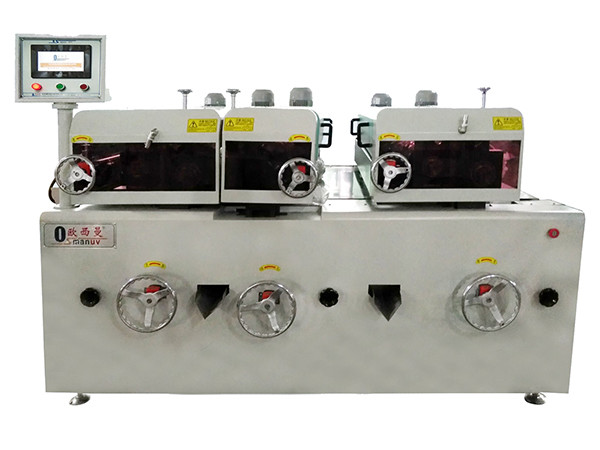

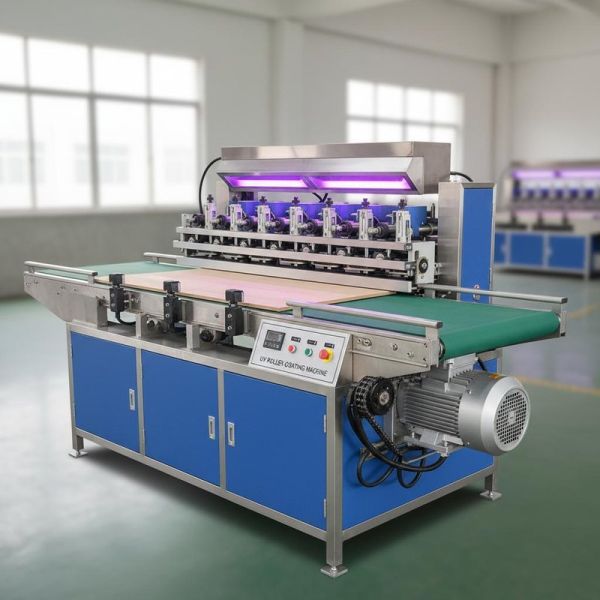

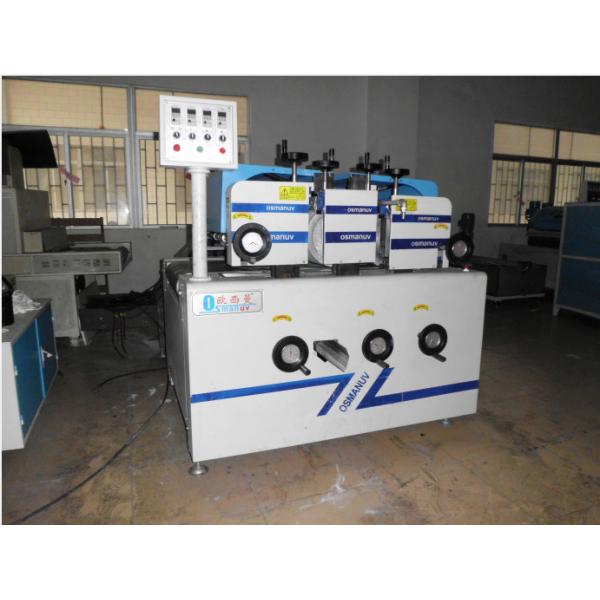

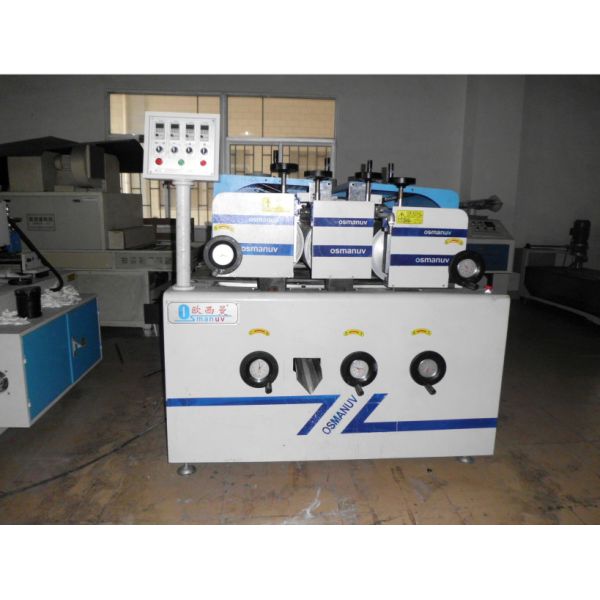

9KW 850mm Height Wood UV Roller Coating Machine With Motor
Product Overview
This 9KW 850mm Height Wood UV Roller Coating Machine is designed for filling various wood materials including solid wood, original planer board, medium density planer, or other substrates using waterborne UV light curing filling technology. The machine effectively fills holes in plates to achieve smooth surfaces while scraping away excess paint. Automated recycling eliminates manual filling, significantly improving production efficiency.
Technical Specifications
1 Filling Roller Diameter: ￠240mm, Power: 1.5KW, Length: 1420mm. Constructed from 45# seamless steel tube welded by CO², surface finely ground with dynamic balance ensuring runout less than 0.05mm. Surface hard chrome plated and polished for bright effect. Direct plug-in connection drive integrated with drive motor.
2 Cots Diameter: ￠240mm, Length: 1420mm. Made of Japanese high-quality rubber, wear-resistant, elastic. Hardness customizable between 30-50 degrees according to customer requirements. Resistant to various solvents.
3 Metering Wheel Diameter: ￠150mm, Length: 1420mm. Using 45# seamless steel tube CO² welded, surface fine grinding, dynamic balance with runout less than 0.05mm. Surface hard chrome plated and polished for bright effect. Direct plug-in connection drive integrated with drive motor.
4 Conveyor Roller Power: 2.2KW, Diameter: ￠130mm, Length: 1320mm. 45# seamless steel tube CO² welded, surface fine grinding, dynamic balance with runout less than 0.05mm. Surface polished after hard chrome plating. Direct plug-in connection drive integrated with drive motor.
5 Material Shell made of 1.5mm steel plate bending and welding, surface treated with liquid paint. Supporting wall made of 20cm steel plate (A3 material).
6 Transmission System Dutch imported plane anti-skid PVC belt, adjustable speed 5-20m/min. High-quality coupling transmission, KHV bearings. Controlled by Taiwan Delta frequency converter.
7 Control System Six sets of driving power for separate speed driving. Equipped with BNC motor and reducer.
8 Electrical Parts OMRON relay, Delta frequency converter, Waxin reducer, CHNT contactor, CKC brand delay, Japan Wazumi company switches. All components comply with CE standards.
9 Safety Device Leakage circuit breaker, control line fuse, and other safety components comply with international safety standards.
10 Delivery Direction From left to right.
9KW 850mm Height Wood Uv Roller Coating Machine With Motor 9KW 850mm Height Wood Uv Roller Coating Machine With Motor
Frequently Asked Questions
Q: Are you a trading company or manufacturer?
A: We are a manufacturer with independent import and export rights. Our factory is located in Guangdong, China.
Q: How can I know your machine has good quality?
A: We can test your samples on our machines and provide video documentation. Factory visits are also available. Our products are widely used in China, Southeast Asia, South America, and Europe.
Q: What certifications do you have?
A: Our production follows GMP & ISO standards, and our products have passed CE certification for exporting.
Q: What is your Quality Warranty?
A: One year warranty with lifelong maintenance and technical support.
