10KW 2m/Min Flat Offline Uv Roll Coating Machine With Conveyor Belt
10KW 2m/Min Flat Offline Uv Roll Coating Machine With Conveyor Belt
10KW 2m/Min Flat Offline Uv Roll Coating Machine With Conveyor Belt
10KW 2m/Min Flat Offline Uv Roll Coating Machine With Conveyor Belt
10KW 2m/Min Flat Offline Uv Roll Coating Machine With Conveyor Belt
10KW 2m/Min Flat Offline Uv Roll Coating Machine With Conveyor Belt
Specifications
Brand Name :
Osmanuv
Model Number :
OSM-GTJ-920I
Place of Origin :
CHINA
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T,Western Union
Delivery Time :
35-45 Working days
Packaging Details :
Wooden Box
Certification :
ISO9001 And CE
Supply Ability :
According to customer's demand
Product Name :
Double roll coating machine
Color :
Computer white / Green / Blue
Effecive width :
920mm
Coating Roll :
Silicone Rollet
Power :
10 KW
Weight :
1500KG
Description

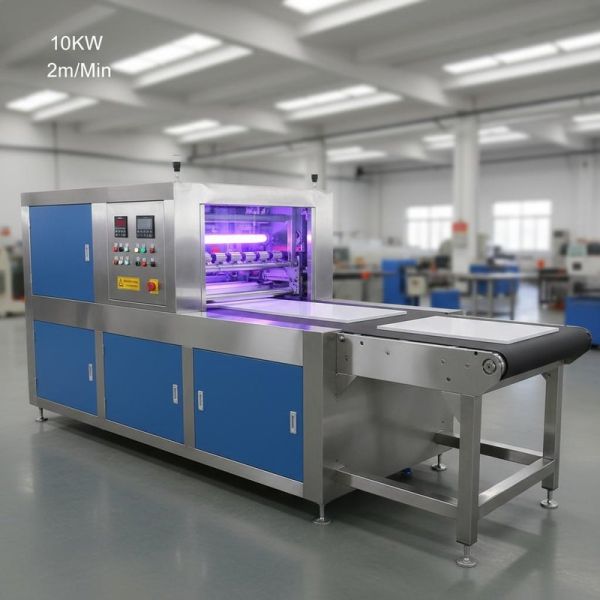

10KW 2m/Min Flat Offline UV Roll Coating Machine With Conveyor Belt
Product Overview

This advanced UV roll coating machine is designed for coating various materials including wood, plastic, and metal products. It ensures smooth surface finishes with excellent plumpness and no chromatic differences.

Key Features
  • Electrooptic roller and rubber roller independently controlled by transducer and reactor for precision operation
  • Imported PU doctor blade that is anti-abrasive and resistant to all solvents
  • Compatible with various paint types including PU, UV, NC, and more
  • Paint reclamation system eliminates wastage
  • Work piece coating control between 5-10g/m²
Technical Specifications
Effective working width 920 mm
Effective processing thickness 2-50 mm
Minimum machining length 300 mm
Transmission speed 2-15 m/min
Coating roller diameter ￠300 mm
Measuring wheel diameter ￠180 mm
Diameter of anti-grain wheel ￠100 mm
Pressure wheel diameter ￠70 mm
Coating roller length 1450 ±0.1 mm
Measuring wheel length 1450 ±0.1 mm
Anti-grain wheel length 1450 ±0.1 mm
Length of pressure wheel 1220 mm
Machine inner width 1650 mm
Machine length 4000 mm
Machine height Conveyor belt is 850±30 mm above the ground
10KW 2m/Min Flat Offline Uv Roll Coating Machine With Conveyor Belt
Frequently Asked Questions
Are you a trading company or manufacturer?

We are a manufacturer with independent import and export rights. Our factory is located in Guangdong, China.

How can I verify your machine quality?

We can test your samples on our machines and provide video documentation. Factory visits are also available. Our products are widely used in China, Southeast Asia, South America, and Europe.

What certifications do you have?

Our production follows GMP & ISO standards, and our products have passed CE certification for exporting.

What is your Quality Warranty?

One year warranty with lifelong maintenance and technical support.
