1320mm Effecive Width Antil Abrasive Roller Coating Equipment 10KW
1320mm Effecive Width Antil Abrasive Roller Coating Equipment 10KW
1320mm Effecive Width Antil Abrasive Roller Coating Equipment 10KW
1320mm Effecive Width Antil Abrasive Roller Coating Equipment 10KW
1320mm Effecive Width Antil Abrasive Roller Coating Equipment 10KW
1320mm Effecive Width Antil Abrasive Roller Coating Equipment 10KW
1320mm Effecive Width Antil Abrasive Roller Coating Equipment 10KW
1320mm Effecive Width Antil Abrasive Roller Coating Equipment 10KW
1320mm Effecive Width Antil Abrasive Roller Coating Equipment 10KW
1320mm Effecive Width Antil Abrasive Roller Coating Equipment 10KW
Specifications
Brand Name :
Osmanuv
Place of Origin :
CHINA
MOQ :
1 Set
Delivery Time :
35-45 Working days
Price :
Negotiable
Payment Terms :
T/T,Western Union
Packaging Details :
Wooden Box
Model Number :
OSM-GTJ-1230I
Certification :
ISO9001 And CE
Supply Ability :
According to customer's demand
Product Name :
Double roll coating machine
Color :
Computer white / Green / Blue
Effecive width :
1320mm
Coating Roll :
Silicone Rollet
Power :
10KW
Weight :
1500KG
Description
1320mm Effective Width Anti-Abrasive Roller Coating Equipment 10KW
Product Overview

This high-performance roller coating machine is designed for applying protective coatings to various materials including wood, plastic, and metal products. With a 10KW power rating and 1320mm effective working width, it delivers precision coating applications for industrial manufacturing.

  • Produces smooth, uniform surfaces with excellent fullness and no color difference
  • Independent transducer and reactor control for electrooptic and rubber rollers ensures precision operation
  • Features imported PU doctor blade with superior anti-abrasive properties and solvent resistance
  • Compatible with various paint types including PU, VU, NC with zero-waste paint reclamation system
  • Precise coating control between 5-10g/m²
Technical Specifications
Effective working width1320 mm
Effective processing thickness2-50 mm
Minimum machining length300 mm
Transmission speed2-15 m/min
Coating roller diameter￠300 mm
Measuring wheel diameter￠180 mm
Anti-grain wheel diameter￠100 mm
Pressure wheel diameter￠70 mm
Coating roller length1450 ±0.1 mm
Measuring wheel length1450 ±0.1 mm
Anti-grain wheel length1450 ±0.1 mm
Pressure wheel length1220 mm
Machine inner width1650 mm
Machine length4000 mm
Machine heightConveyor belt is 850±30mm above the ground

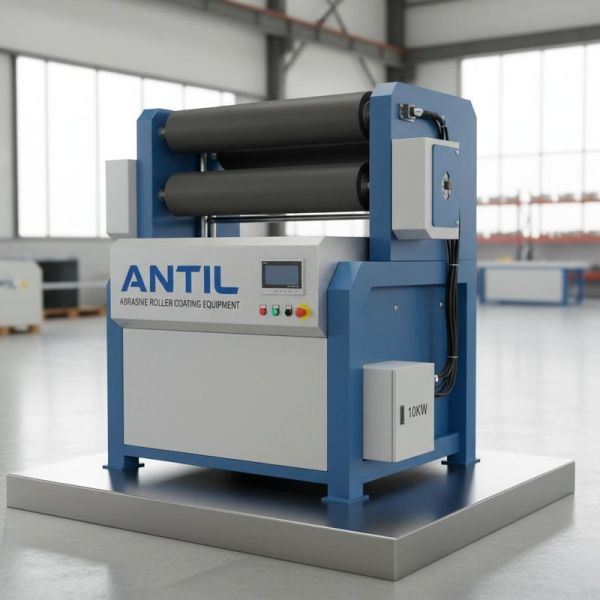

Product Images
1320mm Effecive Width Antil Abrasive Roller Coating Equipment 10KW 1320mm Effecive Width Antil Abrasive Roller Coating Equipment 10KW
Frequently Asked Questions
Are you a trading company or manufacturer?
We are a manufacturer with independent import and export rights. Our factory is located in Guangdong, China.
How can I verify your machine quality?
We provide sample testing on our machines with video documentation. Factory visits are welcome. Our products are widely used in China, Southeast Asia, South America, and Europe.
What certifications do you have?
Our production complies with GMP & ISO standards, and our products have passed CE certification for export.
What is your Quality Warranty?
One year warranty with lifelong maintenance and technical support.
