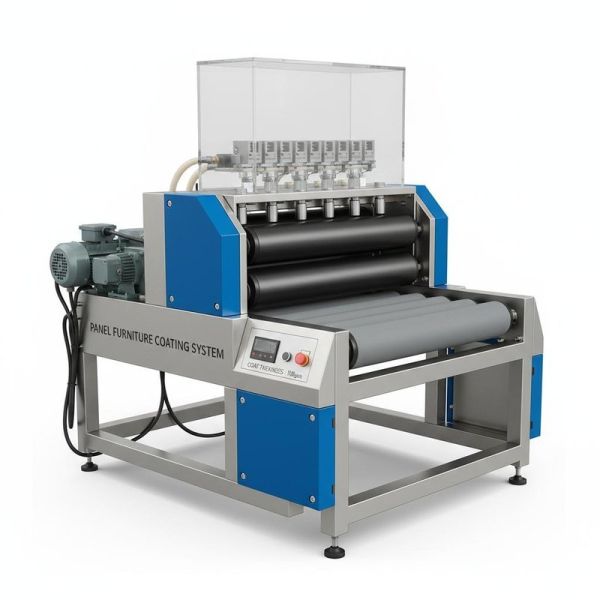

AC 110v 100mm Thick Roller Coating Equipment For Panel Furniture
AC 110v 100mm Thick Roller Coating Equipment For Panel Furniture
AC 110v 100mm Thick Roller Coating Equipment For Panel Furniture
AC 110v 100mm Thick Roller Coating Equipment For Panel Furniture
AC 110v 100mm Thick Roller Coating Equipment For Panel Furniture
AC 110v 100mm Thick Roller Coating Equipment For Panel Furniture
AC 110v 100mm Thick Roller Coating Equipment For Panel Furniture
AC 110v 100mm Thick Roller Coating Equipment For Panel Furniture
AC 110v 100mm Thick Roller Coating Equipment For Panel Furniture
AC 110v 100mm Thick Roller Coating Equipment For Panel Furniture
Specifications
Brand Name :
Osmanuv
Model Number :
OSM-GT-1350I
Place of Origin :
CHINA
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T,Western Union
Delivery Time :
35-45 Working days
Packaging Details :
Wooden Box
Certification :
ISO9001 And CE
Supply Ability :
According to customer's demand
Product Named :
Gumming Machine
Color :
Grass green / Computer white
Size :
2100mm long x 900mm wide x 1200mm high
Working Height :
0 ~ 850mm
Warranty :
1 Year
Weight :
600KG
Description
AC 110v 100mm Thick Roller Coating Equipment For Panel Furniture
This machine is primarily used for decorative veneer applications on plywood, calcium silicate boards, and panel furniture. It handles both strongly corrosive adhesives and non-corrosive glues, making it suitable for plywood factories, furniture manufacturers, audio equipment factories, and various woodworking applications. The equipment ensures uniform adhesive application with high efficiency and durability, featuring a unique baffle design that minimizes glue leakage.
Technical Specifications
1 Mechanical Size: 2100mm long × 900mm wide × 1200mm high (Subject to actual size)
2 Effective Working Size:
• Effective width: 1300mm
• Gluing product thickness: 2-100mm
• Minimum length: 300mm
3 Material: 1.5mm steel plate shell with liquid paint surface treatment; 20cm A3 steel plate supporting walls
4 Coating System: Double-sided rolling coating with steel and silicone rollers; each system can be lifted separately for double-sided coating
5 Rollers:
• Diameter: Ø190mm, Length: 1350mm
• Japanese high-quality silicone construction
• 15mm thickness per side
• Wear-resistant with good elasticity
• Customizable hardness (30-50 degrees)
• Resistant to various solvents
• High-quality coupling drive with KHV bearings
• Taiwan Delta frequency converter for speed control
6 Working Height: 0-850mm with position display
7 Electrical System: Frequency converter control with CHNT contactor and Izumi switches; compliant with international safety standards
8 Safety Features: Leakage circuit breaker, motor overload protection, emergency stop switch, control line fuses - all compliant with international safety standards
9 Delivery Direction: Left to right
10 Weight: 600kg
AC 110v 100mm Thick Roller Coating Equipment For Panel Furniture
Frequently Asked Questions
Q: Are you a trading company or manufacturer?
A: We are a manufacturer with independent import and export rights. Our factory is located in Guangdong, China.
Q: How can I verify your machine quality?
A: We can test your samples on our machines and provide video documentation. Factory visits are also welcome. Our products are widely used in China, Southeast Asia, South America, and Europe.
Q: What certifications do you have?
A: Our production follows GMP & ISO standards, and our products have CE certification for export.
Q: What is your Quality Warranty?
A: One-year warranty with lifelong maintenance and technical support.
