Specifications
Brand Name :
Osmanuv
Model Number :
OSM-GTJ-1320-I
Place of Origin :
CHINA
MOQ :
1 Set
Price :
Negotiable
Delivery Time :
35-45 Working days
Payment Terms :
T/T,Western Union
Packaging Details :
Wooden Box
Certification :
ISO9001 And CE
Supply Ability :
According to customer's demand
Product Name :
Photovoltaic glass AR flim coating machine
Size :
4000mm×2450mm×1300mm
Voltage :
360-410 volts, three-phase four-wire, 50 Hz
Feature :
This machine is suitable for roller coating of various primers and topcoats. The driving power is Mitsubishi servo motor.
Effective working width: :
1320mm
Total power :
6KW
Description

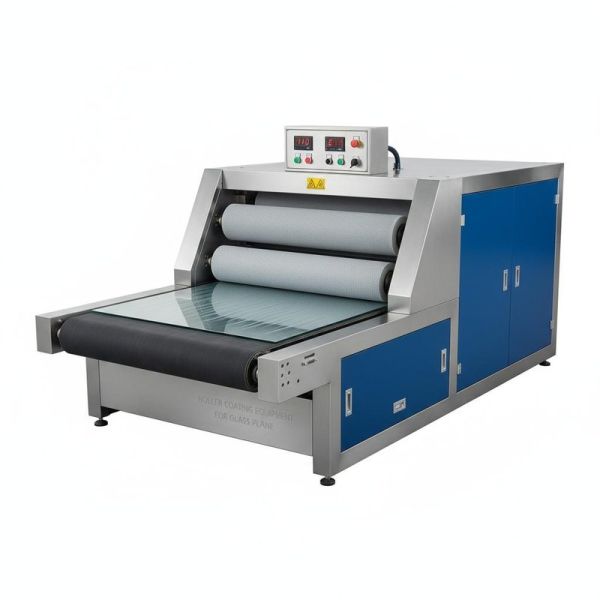

410 Volts 6KW Roller Coating Equipment Suitable For Glass Plane
Product Overview

This advanced roller coating equipment is specifically designed for applying various primers and topcoats on glass planes with precision and efficiency.

Key Features
  • Suitable for rolling all types of primers and topcoats
  • Powered by Mitsubishi servo motor for reliable performance
  • Four sets of power separate speed control drive
  • Seamless plane conveyor belt with 3mm thickness for long service life
  • Stainless steel V-shaped return groove conforms to hydrodynamics
  • High precision grating ruler for height measurement with error ≤ 0.1mm
Technical Specifications
Specification Value
Effective working width 1320 mm
Effective processing thickness 2-50 mm
Minimum machining length 300 mm
Transmission speed 2-15 m/min
Cots roller diameter ￠300 mm
Measuring wheel diameter ￠180 mm
Diameter of anti-grain wheel ￠100 mm
Pressure wheel diameter ￠70 mm
Cots length 1450 ±0.1 mm
Measuring wheel length 1450 ±0.1 mm
Length of pressure wheel 1220 mm
Machine inner width 1650 mm
Machine length 4000 mm
Machine running direction From right to left
Machine height Conveyor belt is 850±30mm above the ground
Machine size 4000mm × 2450mm × 1300mm
Coating quantity 2-15 g/m²
410 Volts 6KW Roller Coating Equipment Suitable For Glass Plane
Frequently Asked Questions
Are you a trading company or manufacturer?
We are a manufacturer with independent import and export rights. Our factory is located in Guangdong, China.
How can I know your machine has good quality?
We provide sample testing on our machines with video documentation. Factory visits are available. Our products are widely used in China, Southeast Asia, South America, and Europe.
What certifications do you have?
Our production follows GMP & ISO standards, and our products have passed CE certification for exporting.
What is your Quality Warranty?
One year warranty with lifelong maintenance and technical support.
