220V 2m/Min Plastic Roller Coating Equipment With Good Plumpness
220V 2m/Min Plastic Roller Coating Equipment With Good Plumpness
220V 2m/Min Plastic Roller Coating Equipment With Good Plumpness
220V 2m/Min Plastic Roller Coating Equipment With Good Plumpness
220V 2m/Min Plastic Roller Coating Equipment With Good Plumpness
220V 2m/Min Plastic Roller Coating Equipment With Good Plumpness
220V 2m/Min Plastic Roller Coating Equipment With Good Plumpness
220V 2m/Min Plastic Roller Coating Equipment With Good Plumpness
220V 2m/Min Plastic Roller Coating Equipment With Good Plumpness
220V 2m/Min Plastic Roller Coating Equipment With Good Plumpness
Specifications
Brand Name :
Osmanuv
Model Number :
OSM-GTJ-1230I
Place of Origin :
CHINA
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T,Western Union
Delivery Time :
35-45 Working days
Packaging Details :
Wooden Box
Certification :
ISO9001 And CE
Supply Ability :
According to customer's demand
Product Name :
Double roll coating machine
Color :
Computer white / Green / Blue
Effecive width :
1320mm
Coating Roll :
Silicone Rollet
Power :
10 KW
Weight :
1500KG
Description

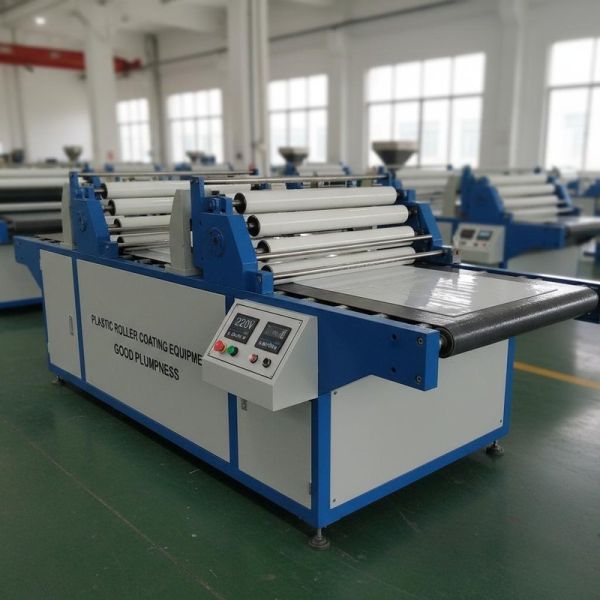

220V 2m/Min Plastic Roller Coating Equipment With Good Plumpness
Product Overview

This advanced roller coating equipment delivers superior surface finishing with excellent plumpness and consistent color application for various materials.

  • Versatile application for wood, plastic, and metal products
  • Ensures smooth surface finish with excellent plumpness and no chromatic difference
  • Independent transducer and reactor control for electrooptic and rubber rollers
  • Imported PU doctor blade with anti-abrasive properties and solvent resistance
  • Compatible with various paint types including PU, VU, NC with paint reclamation
  • Precise coating control between 5-10g/m²
Technical Specifications
Specification Value
Effective working width 1320 mm
Effective processing thickness 2-50 mm
Minimum machining length 300 mm
Transmission speed 2-15 m/min
Cots roller diameter ￠300 mm
Measuring wheel diameter ￠180 mm
Diameter of anti-grain wheel ￠100 mm
Pressure wheel diameter ￠70 mm
Cots length 1450 ±0.1 mm
Measuring wheel length 1450 ±0.1 mm
Anti-grain wheel length 1450 ±0.1 mm
Length of pressure wheel 1220 mm
Machine inner width 1650 mm
Machine length 4000 mm
Machine height Conveyor belt is 850±30mm above the ground
Product Images
220V 2m/Min Plastic Roller Coating Equipment With Good Plumpness 220V 2m/Min Plastic Roller Coating Equipment With Good Plumpness
Frequently Asked Questions
Are you a trading company or manufacturer?
We are a manufacturer with independent import and export rights. Our factory is located in Guangdong, China.
How can I know your machine has good quality?
We provide sample testing on our machines with video documentation. Factory visits are available. Our products are widely used in China, Southeast Asia, South America, and Europe.
What certifications do you have?
Our production follows GMP & ISO standards and our products have passed CE certification for exporting.
What is your Quality Warranty?
One year warranty with lifelong maintenance and technical support.
