Finisar Optical Modules FTLC9551REPM 100gbase sR4 QSFP28 150m For Ethernet And Fibre Channel
Finisar Optical Modules FTLC9551REPM 100gbase sR4 QSFP28 150m For Ethernet And Fibre Channel
Finisar Optical Modules FTLC9551REPM 100gbase sR4 QSFP28 150m For Ethernet And Fibre Channel
Finisar Optical Modules FTLC9551REPM 100gbase sR4 QSFP28 150m For Ethernet And Fibre Channel
Specifications
Brand Name :
Finisar
Model Number :
FTLC9551REPM
MOQ :
1
Price :
$84
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
1000pcs
Delivery Time :
1-3 days
Description :
8.5G SFP+ Optical Transceiver Module, 850nm, 150m for Fibre Channel and Ethernet
Condition :
Original New; In stock
Form Factor :
SFP (Small Form-factor Pluggable)
Power Consumption :
≤ 1 W
Protocol Support :
Ethernet, Fiber Channel
Dimensions :
13.4 mm x 56.5 mm x 8.5 mm
Compliance :
RoHS, IEEE 802.3z
Connector Type :
LC
Mtbf :
≥ 1,000,000 hours
Transmission Distance :
550 meters on multimode fiber
Laser Type :
VCSEL
Data Rate :
1.25 Gbps
Supply Voltage :
3.3 V
Wavelength :
850 nm
Operating Temperature :
0°C to 70°C
Digital Diagnostic Monitoring :
Supported
Description

Finisar FTLC9551REPM

100m Parallel MMF QSFP28 100GBASE-SR4 850nm Optical Transceiver Module



Finisar's FTLC9551REPM 100G QSFP28 transceiver modules are designed for use in 100 Gigabit Ethernet links over multimode fiber. They are compliant with the QSFP28 MSA and IEEE 802.3bm 100GBASE-SR42 and CAUI-4. Digital diagnostics functions are available via the I2C interface, as specified by the QSFP28 MSA1 and Finisar Application Note AN-2141. The transceiver is RoHS-6 compliant per Directive 2011/65/EU and Finisar Application Note AN-2038.


Quick Specification
















Model

FTLC9551REPM

Description

Finisar 100GBASE-SR4 QSFP28 850NM MPO MMF Fiber optic module

Form Factor

QSFP28

Extinction Ratio

2dB

Commercial Temperature Range

0 to 70°C (32 to 158°F)

TX Power

-8.4~2.4dBm

Max Data Rate

103.125Gbps (4x 25.78Gbps)

Power Consumption

3.5W

Transmit and Dispersion Penalty

5dB

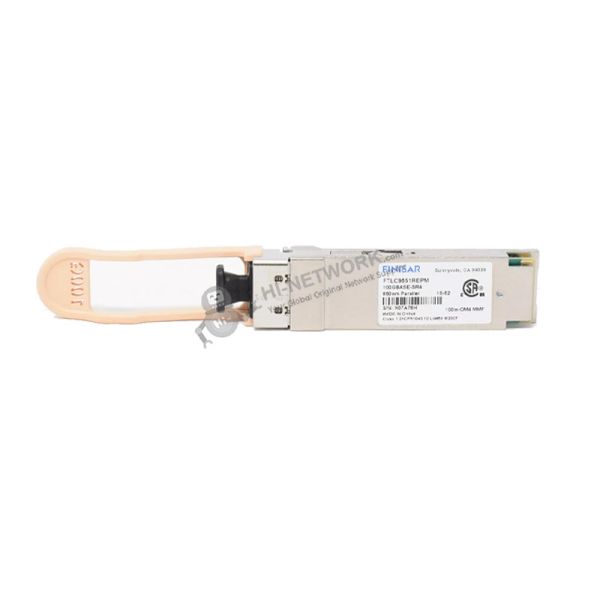

Figure 1 shows the appearance of FTLC9551REPM.
