Finisar Multimode Fiber Sfp FTL410QE4C QSFP+ Optical Transceiver 40Gbps 850nm
Finisar Multimode Fiber Sfp FTL410QE4C QSFP+ Optical Transceiver 40Gbps 850nm
Specifications
Brand Name :
Finisar
Model Number :
FTL410QE4C
MOQ :
1
Price :
$94
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
1000pcs
Delivery Time :
1-3 days
Description :
QSFP+ 40G SR4 850nm 150m MPO Parallel MMF Data Center Transceiver for 40GB Ethernet
Condition :
Original New; In stock
Wavelength :
850 nm
Mtbf :
≥ 1,000,000 hours
Operatingtemperature :
0°C to 70°C
Digitaldiagnostics :
Supported
Productname :
Finisar SFP
Voltage :
3.3 V
Compatibility :
Compatible with IEEE 802.3z 1000BASE-SX
Connectortype :
LC
Datarate :
1.25 Gbps
Formfactor :
SFP (Small Form-factor Pluggable)
Rohscompliant :
Yes
Lasertype :
VCSEL
Powerconsumption :
≤ 1 W
Application :
Gigabit Ethernet, Fiber Channel
Transmissiondistance :
550 meters
Description

Finisar FTL410QE4C 40GBASE-SR4 850nm QSFP Optical Transceiver Module



The FTL410QE4C is a parallel 40Gbps Quad Small Form-factor Pluggable (QSFP+) optical module. It provides increased port density and total system cost savings. The QSFP+ full-duplex optical module offers 4 independent transmit and receive channels, each capable of 10Gbps operation for an aggregate data rate of 40Gbps over 100 meters of OM3 multi-mode fiber. An optical fiber ribbon cable with an MPO/MTPTM connector can be plugged into the QSFP+ module receptacle. Proper alignment is ensured by the guide pins inside the receptacle. Electrical connection is achieved through a z-pluggable 38-pin IPASS® connector. The module operates via a single +3.3V power supply. LVCMOS/LVTTL global control signals, such as Module Present, Reset, Interrupt and Low Power Mode, are available with the modules. A 2-wire serial interface is available to send and receive more complex control signals, and to receive digital diagnostic information. Individual channels can be addressed and unused channels can be shut down for maximum design flexibility. The FTL410QE4C is designed with form factor, optical/electrical connection and digital diagnostic interface according to the QSFP+ Multi-Source Agreement (MSA). It has been designed to meet the harshest external operating conditions including temperature, humidity and EMI interference. The module offers very high functionality and feature integration, accessible via a two-wire serial interface.


Quick Specification









Model

FTL410QE4C

Description

Finisar QSFP+ 40G SR4 850nm 150m MPO Parallel MMF Data Center Transceiver for 40GB Ethernet

Optical Power Budget

1.9dB

TX Power Min/Max

-7.6 to +2.4 dBm

RX Power Min/Max

-9.5 to 2.4 dBm

Form Factor

QSFP

TX Wavelength

850nm

Reach

150m

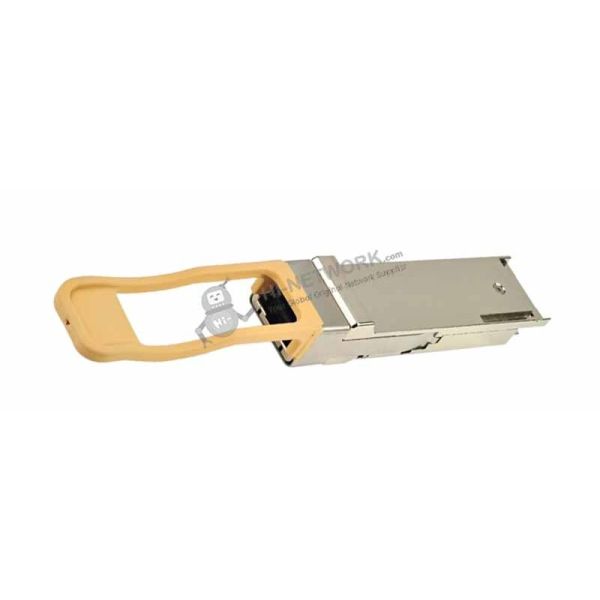

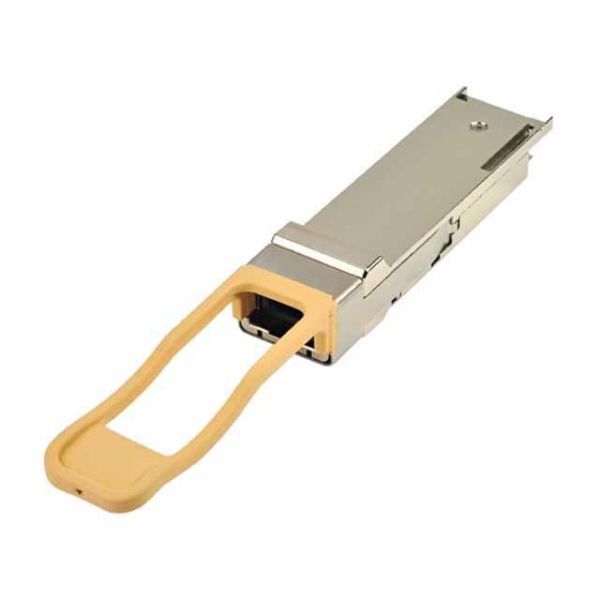

Figure 1 shows the appearance of FTL410QE4C.

Finisar Multimode Fiber Sfp FTL410QE4C QSFP+ Optical Transceiver 40Gbps 850nm





Specific Data Sheet:



FTL410QE4C Specification

Model

FTL410QE4C

Description

Finisar QSFP+ 40G SR4 850nm 150m MPO Parallel MMF Data Center Transceiver for 40GB Ethernet

Form Factor

QSFP

TX Wavelength

850nm

Reach

150m

Cable Type

MMF

Rate Category

40GBase

Interface Type

SR4

DDM

Yes

Connector Type

MPO

Optical Power Budget

1.9dB

TX Power Min/Max

-7.6 to +2.4 dBm

RX Power Min/Max

-9.5 to 2.4 dBm
