Finisar Optical Multimode SFP Transceiver FTLF1323P1BTR 155Mbps 1310nm 15km
Finisar Optical Multimode SFP Transceiver FTLF1323P1BTR 155Mbps 1310nm 15km
Finisar Optical Multimode SFP Transceiver FTLF1323P1BTR 155Mbps 1310nm 15km
Finisar Optical Multimode SFP Transceiver FTLF1323P1BTR 155Mbps 1310nm 15km
Specifications
Brand Name :
Finisar
Model Number :
FTLF1323P1BTR
MOQ :
1
Price :
$12.5
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
1000pcs
Delivery Time :
1-3 days
Description :
Finisar 155M 1310nm 15km Optical transceiver module
Condition :
Original New; In stock
Data Rate :
1 Gbps
Connector Type :
LC
Operating Temperature :
-5°C to 70°C
Transmission Distance :
Up to 10 km (varies by model)
Rohs Compliance :
Yes
Mtbf :
≥ 1,000,000 hours
Interface :
Serial Optical Interface
Power Consumption :
≤ 1 W
Voltage :
3.3 V
Form Factor :
SFP (Small Form-factor Pluggable)
Wavelength :
850 nm / 1310 nm / 1550 nm (depending on model)
Compatibility :
Compatible with IEEE 802.3 standards
Application :
Fiber Channel, Gigabit Ethernet, SONET/SDH
Laser Type :
VCSEL / DFB Laser
Description

Finisar FTLF1323P1BTR 155M 1310nm 15km Optical Transceiver Module



FTLF1323P1BTR is a Finisar Compatible OC-3 IR-1/STM S-1.1 RoHS Compliant Pluggable SFP Transceiver, operating over Double Fiber Single-Mode Fiber (SMF) optical cable. It can also serve as a compatible alternative to the Finisar FTLF1323P1WTR transceiver. It has minimum guaranteed optical budget of 19 dB, with in most cases is enough to reach about 15 km distance. However, distance is just indicative parameter calculated for comfort of identification.



Quick Specification



Model

FTLF1323P1BTR

Description

Original Finisar 155M 1310nm 15km Optical transceiver module

TX Wavelength:

1310 nm.

RX Wavelength:

1310 nm.

Minimum Optical Budget:

19 dB

Maximum Distance:

15km

Supported Data Rate:

100-155Mbps

Supported Applications:

100M Ethernet (100Mbps), STM-1 (155Mbps)

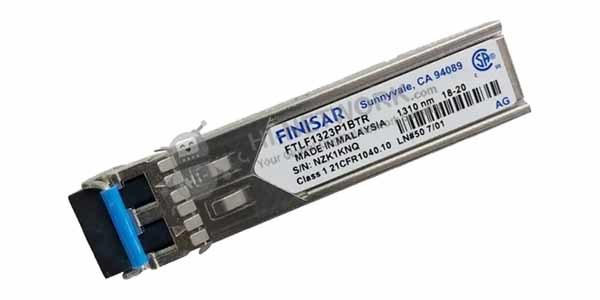

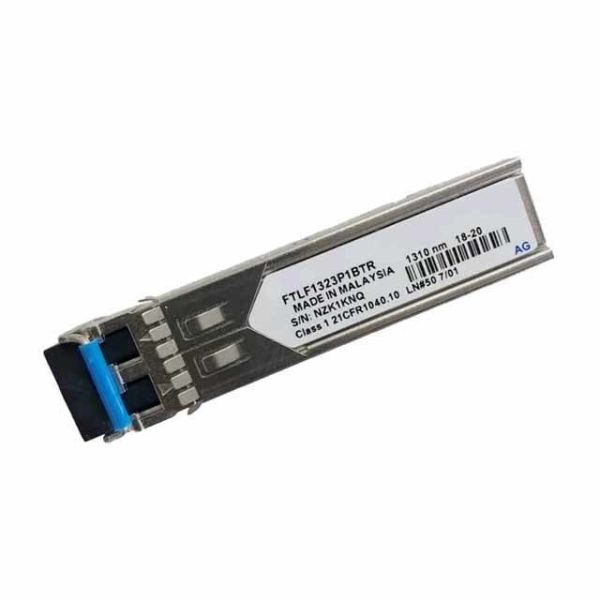

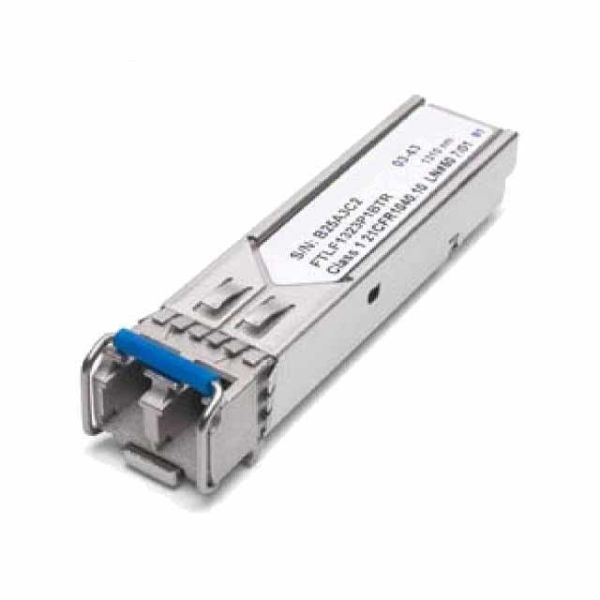

Figure 1 shows the appearance of FTLF1323P1BTR.

Finisar Optical Multimode SFP Transceiver FTLF1323P1BTR 155Mbps 1310nm 15km





Specific Data Sheet:




FTLF1323P1BTR Specification

Model

FTLF1323P1BTR

Description

Original Finisar 155M 1310nm 15km Optical transceiver module

Media Type:

Single-Mode Fiber (SMF)

TX Wavelength:

1310 nm.

RX Wavelength:

1310 nm.

Minimum Optical Budget:

19 dB

Maximum Distance:

15km

Supported Data Rate:

100-155Mbps

Supported Applications:

100M Ethernet (100Mbps), STM-1 (155Mbps)

DDM/DOM:

Support

Temperature Range:

Industrial -45°C – +85°C

Connectors:

Double LC

Tx Wavelength Bandwidth:

100 nm (1260-1360 nm)

Rx Wavelength Bandwidth:

100 nm (1260-1360 nm)

Minimum Transmitting Power:

-15 dB

Maximum Transmitting Power:

-8 dB

Receiver Sensitivity:

-34 dBm

Receiver Overload:

-3 dBm

Dispersion:

110-200 ps/nm

Transmitter Type:

FP Laser

Receiver Type:

PIN photodiode

Power:

+3.3V single power supply

Chipset:

MAXIM, MINDSPEED, SEMTECH

Compliance:

CE, Class 1 FDA and IEC60825-1 Laser Safety Compliant, INF-8074i, RoHS, SFP MSA

Transceiver Type:

SFP
