10G Finisar SFP+ Module Transceiver FTLX1475D3BCL Digital Diagnostics Monitoring
10G Finisar SFP+ Module Transceiver FTLX1475D3BCL Digital Diagnostics Monitoring
10G Finisar SFP+ Module Transceiver FTLX1475D3BCL Digital Diagnostics Monitoring
10G Finisar SFP+ Module Transceiver FTLX1475D3BCL Digital Diagnostics Monitoring
Specifications
Brand Name :
Finisar
Model Number :
FTLX1475D3BCL
MOQ :
1
Price :
$68
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
1000pcs
Delivery Time :
1-3 days
Description :
Finisar 10G SFP+ LR 10km Singlemode Optical Transceiver for Campus Network Data Center
Condition :
Original New; In stock
Description

Finisar FTLX1475D3BCL 10GBASE-LR/LW SFP+ Transceiver Module



The FTLX1475D3BCL 10Gb/s Enhanced Small Form Factor Pluggable SFP+ optical transceivers are specifically engineered for use in 10-Gigabit Ethernet connections spanning up to 10km over Single Mode fiber. These transceivers are fully compliant with SFF-8431, SFF-8432, and IEEE 802.3ae 10GBASE-LR/LW, as well as 10G Fibre Channel 1200-SM-LL-L. They feature digital diagnostics monitoring, accessible via a 2-wire serial interface, in line with SFF-8472 specifications. Additionally, the FTLX1475D3BCL model incorporates a limiting receiver.


Quick Specification














Model

FTLX1475D3BCL

Description

Finisar 10G SFP+ LR 10km Singlemode Optical Transceiver for Campus Network Data Center

Media Type:

Single-Mode Fiber (SMF)

TX Wavelength:

1310 nm.

RX Wavelength:

1310 nm.

Minimum Optical Budget:

6 dB

Maximum Distance:

10km

Temperature Range:

Commercial -5° to 70°C

Connectors:

Double LC

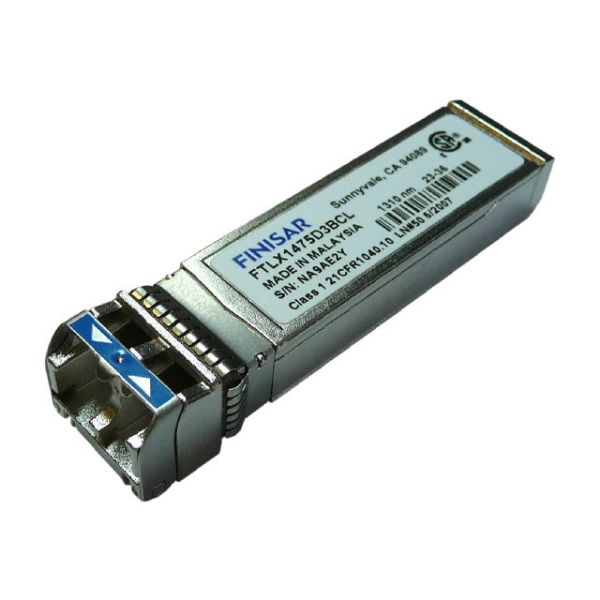

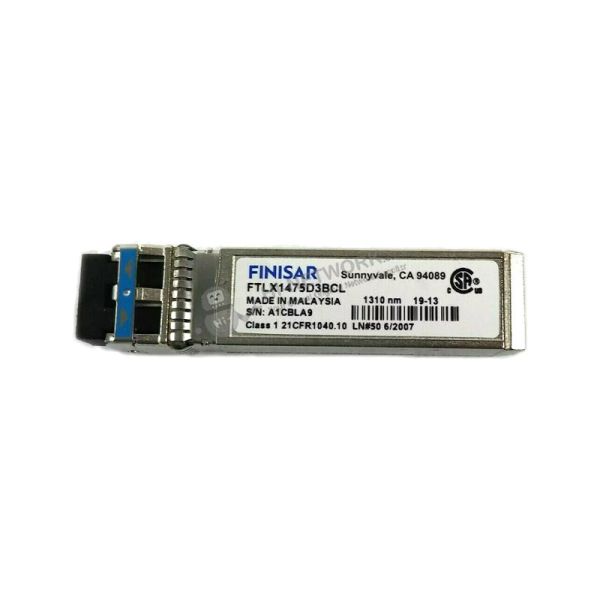

Figure 1 shows the appearance of FTLX1475D3BCL.

10G Finisar SFP+ Module Transceiver FTLX1475D3BCL Digital Diagnostics Monitoring





Specific Data Sheet:



FTLX1475D3BCL Specification

Model

FTLX1475D3BCL

Description

Finisar 10G SFP+ LR 10km Singlemode Optical Transceiver for Campus Network Data Center

Media Type:

Single-Mode Fiber (SMF)

TX Wavelength:

1310 nm.

RX Wavelength:

1310 nm.

Minimum Optical Budget:

6 dB

Maximum Distance:

10km

Supported Data Rate:

1.25-10.31 Gbps

Supported Applications:

10G Ethernet (10.31Gbps), Gigabit Ethernet (1.25 Gbps), STM-64 (9.95Gbps)

DDM/DOM:

Support

Temperature Range:

Commercial -5° to 70°C

Connectors:

Double LC

Tx Wavelength Bandwidth:

100 nm (1260-1360 nm)

Rx Wavelength Bandwidth:

100 nm (1260-1360 nm)

Minimum Transmitting Power:

-8 dB

Maximum Transmitting Power:

-0.5 dB

Receiver Sensitivity:

-14 dBm

Receiver Overload:

0.5 dBm

Dispersion:

70-100 ps/nm

Transmitter Type:

DFB Laser

Receiver Type:

PIN photodiode

Power:

+3.3V single power supply

Chipset:

MAXIM, MINDSPEED, SEMTECH

Compliance:

CE, Class 1 FDA and IEC60825-1 Laser Safety Compliant, RoHS, SFF-8431, SFP MSA

Transceiver Type:

SFP+
