Industrial Finisar SFP FCLF8521P2BTL Transceiver With 10/100/1000Base-T RJ45
Industrial Finisar SFP FCLF8521P2BTL Transceiver With 10/100/1000Base-T RJ45
Specifications
Brand Name :
Finisar
Model Number :
FCLF8521P2BTL
MOQ :
1
Price :
$19.5
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
1000pcs
Delivery Time :
1-3 days
Description :
Finisar Transceiver, SFP, 10/100/1000Base-T, RJ45, Copper, Ind Temp, 100m
Condition :
Original New; In stock
Description

Finisar FCLF8521P2BTL Extended 10/100/1000BASE-T SFP Copper RJ-45 100m Optical Transceiver Module



FCLF8521P2BTL 1000BASE-T Copper Small Form Pluggable (SFP) transceivers are based on the SFP Multi Source Agreement (MSA). They are compatible with the Gigabit Ethernet and 1000BASE-T standards as specified in IEEE Std 802.3. The optical transceiver is RoHS compliant as described in Application Note AN-2038. The 1000BASE-T physical layer IC (PHY) can be accessed via I2C, allowing access to all PHY settings and features.



Quick Specification


Features



• Up to 1.25 Gb/s bi-directional data links

• Hot-pluggable SFP footprint

• Gigabit Ethernet over Cat 5 cable

• Industrial temperature range: -40°C to 85°C

• Fully metallic enclosure for low EMI

• RoHS compliant and Lead Free

• Low power dissipation (1.05 W typical)

• Compact RJ-45 connector assembly

• Access to physical layer IC via 2-wire serial bus

• 10/100/1000 BASE-T operation in host systems with SGMII interface

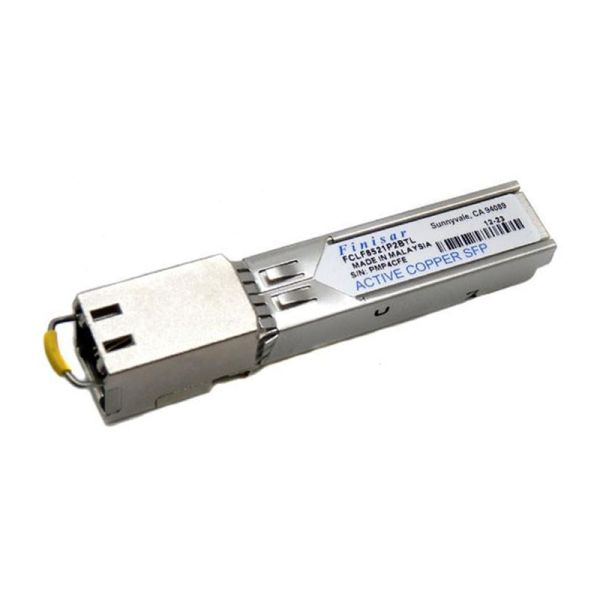

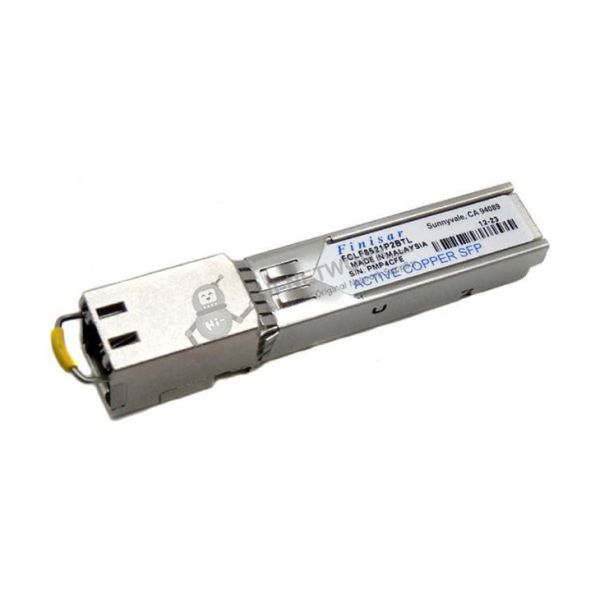

Figure 1 shows the appearance of FCLF8521P2BTL.

Industrial Finisar SFP FCLF8521P2BTL Transceiver With 10/100/1000Base-T RJ45





Specific Data Sheet:




FCLF8521P2BTL Specification

Distance

100 m

Data

1.25 Gb/s

Protocol

1000Base-T Compliant

Connector

RJ-45

Operating Supply Voltage

3.3 V

Operating Temperature

-40 to 85 °C

Pin Count

20

Product Dimensions

70.2 x 13.27 x 13.4 mm

Screening Level

Extended

Type

TX/RX

Typical Rise Time

0.175(Typ) ns
