Finisar FTLF1217P2BTL 100BASE-FX SFP Transceiver with 2 km Distance and 1310nm Wavelength
Finisar FTLF1217P2BTL 100BASE-FX SFP Transceiver with 2 km Distance and 1310nm Wavelength
Finisar FTLF1217P2BTL 100BASE-FX SFP Transceiver with 2 km Distance and 1310nm Wavelength
Finisar FTLF1217P2BTL 100BASE-FX SFP Transceiver with 2 km Distance and 1310nm Wavelength
Specifications
Brand Name :
Finisar
Model Number :
FTLF1217P2BTL
MOQ :
1
Price :
$55
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
1000pcs
Delivery Time :
1-3 days
Description :
Finisar FTLF1217P2BTL 100BASE-FX SFP Transceiver
Condition :
Original New; In stock
Description

Finisar FTLF1217P2BTL SFP 100BASE-FX Transceiver Module



The Finisar FTLF1217P2BTL 100BASE-SX Ethernet transceiver is a Duplex SFP transceiver for optical communications, rated for distances up to 2 km and a maximum bandwidth of .155Gbps. The FTLF1217P2BTL transceiver operates at 1310nm wavelength. FE 1310nm LED SFP Transceiver.


Quick Specification

























Model

FTLF1217P2BTL

Description

Finisar FTLF1217P2BTL 100BASE-FX SFP Transceiver

Temperature Range

Industrial -45°C – +85°C

Connectors

Double LC

Tx Wavelength Bandwidth

100 nm (1260-1360 nm)

Rx Wavelength Bandwidth

100 nm (1260-1360 nm)

Minimum Transmitting Power

-19 dB

Maximum Transmitting Power

-14 dB

Dispersion

100-110 ps/nm

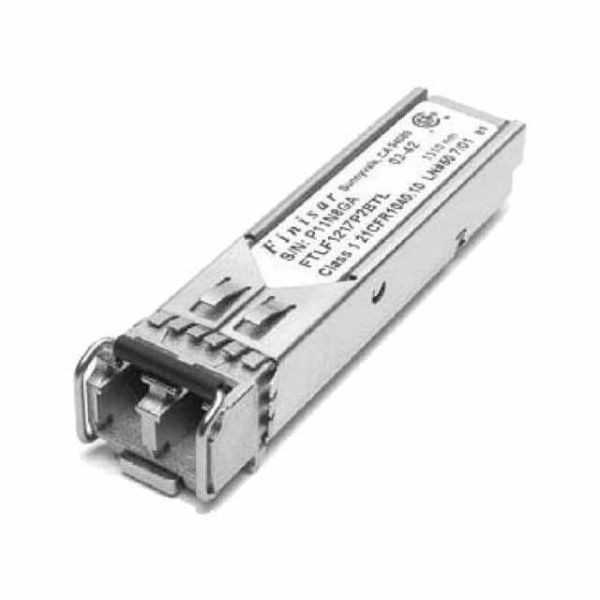

Figure 1 shows the appearance of FTLF1217P2BTL.

Finisar FTLF1217P2BTL 100BASE-FX SFP Transceiver with 2 km Distance and 1310nm Wavelength




Specific Data Sheet:



FTLF1217P2BTL Specification

Model

FTLF1217P2BTL

Description

Finisar FTLF1217P2BTL 100BASE-FX SFP Transceiver

Media Type

Multi-Mode Fiber (MMF)

TX Wavelength

1310 nm.

RX Wavelength

1310 nm.

Minimum Optical Budget

11 dB

Maximum Distance

2km

Supported Data Rate

100-155Mbps

Supported Applications

100M Ethernet (100Mbps), STM-1 (155Mbps)

DDM/DOM

Support

Temperature Range

Industrial -45°C – +85°C

Connectors

Double LC

Tx Wavelength Bandwidth

100 nm (1260-1360 nm)

Rx Wavelength Bandwidth

100 nm (1260-1360 nm)

Minimum Transmitting Power

-19 dB

Maximum Transmitting Power

-14 dB

Receiver Sensitivity

-30 dBm

Receiver Overload

-3 dBm

Dispersion

100-110 ps/nm

Transmitter Type

FP Laser

Receiver Type

PIN photodiode

Power

+3.3V single power supply

Chipset

MAXIM, MINDSPEED, SEMTECH

Compliance

CE, Class 1 FDA and IEC60825-1 Laser Safety Compliant, INF-8074i, RoHS, SFP MSA

Transceiver Type

SFP
