40Gbps 1310nm Fiber QSFP+ Finisar Transceiver FTL4C1QE1C 40GBASE-LR4
40Gbps 1310nm Fiber QSFP+ Finisar Transceiver FTL4C1QE1C 40GBASE-LR4
40Gbps 1310nm Fiber QSFP+ Finisar Transceiver FTL4C1QE1C 40GBASE-LR4
40Gbps 1310nm Fiber QSFP+ Finisar Transceiver FTL4C1QE1C 40GBASE-LR4
Specifications
Brand Name :
Finisar
Model Number :
FTL4C1QE1C
MOQ :
1
Price :
$82
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
1000pcs
Delivery Time :
1-3 days
Description :
Finisar 40GBASE-LR4 40Gbps QSFP+ Fiber Transceiver 40 G 10 Km Optic Fiber
Condition :
Original New; In stock
Description

Finisar FTL4C1QE1C 40GBASE-LR4 40Gbps Fiber Transceiver Module



Finisar's FTL4C1QE1C QSFP+ transceiver modules are designed for use in 40 Gigabit Ethernet links over single mode fiber. They are compliant with the QSFP+ MSA and IEEE 802.3ba 40GBASE-LR42. Digital diagnostics functions are available via an I2C interface, as specified by the QSFP+ MSA. The optical transceiver is compliant per the RoHS Directive 2011/65/EU. See Finisar Application Note AN-2038 for more details..


Quick Specification
























Model

FTL4C1QE1C

Description

FTL4C1QE1C Finisar 40GBASE-LR4 40Gbps QSFP+ Fiber Transceiver 40 G 10 Km Optic Fiber

Temperature Range:

Standard 0°-70°C

Connectors:

Double LC

Tx Wavelength Bandwidth:

4 WDM Seperated 1310nm Lanes (13 nm (1271, 1291, 1311, 1331))

Rx Wavelength Bandwidth:

4 WDM Seperated 1310nm Lanes (13nm (1271, 1291, 1311, 1331))

Minimum Transmitting Power:

Each Lane -4 dB

Maximum Transmitting Power:

Each Lane 2.3 dB

Receiver Sensitivity:

Each Lane -13.7 dBm

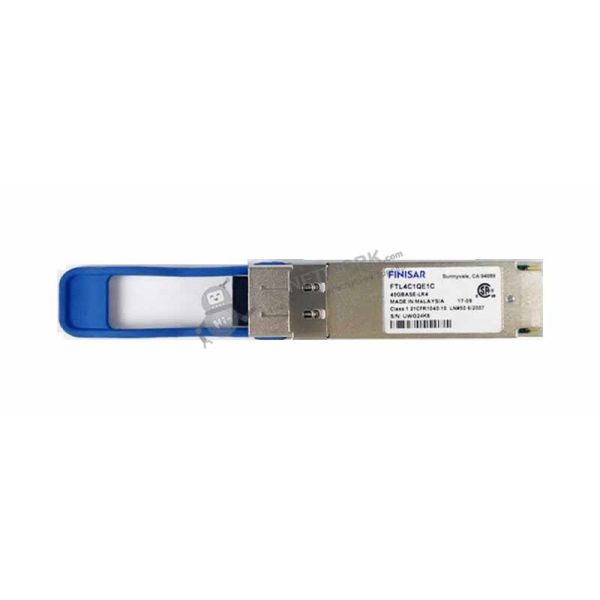

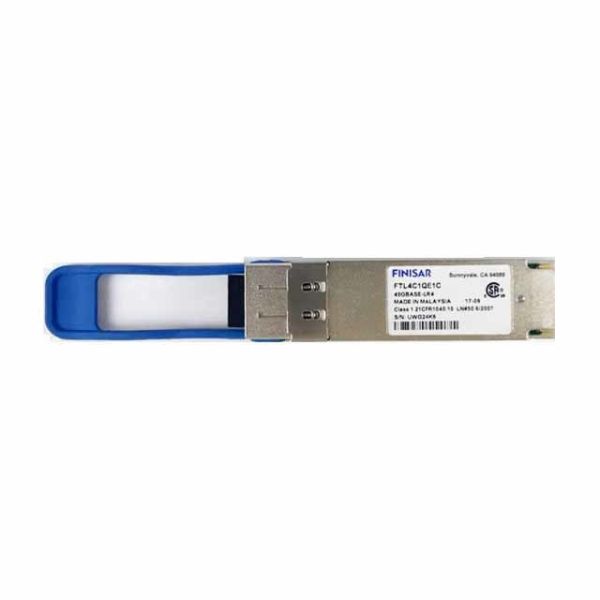

Figure 1 shows the appearance of FTL4C1QE1C.

40Gbps 1310nm Fiber QSFP+ Finisar Transceiver FTL4C1QE1C 40GBASE-LR4




Specific Data Sheet:



FTL4C1QE1C Specification

Model

FTL4C1QE1C

Description

FTL4C1QE1C Finisar 40GBASE-LR4 40Gbps QSFP+ Fiber Transceiver 40 G 10 Km Optic Fiber

Media Type:

Single-Mode Fiber (SMF)

TX Wavelength:

1310 nm.

Transceiver Type:

QSFP

RX Wavelength:

1310 nm.

Minimum Optical Budget:

9.7 dB

Maximum Distance:

10km

Supported Data Rate:

39.81 – 44.8 Gbps

Supported Applications:

40G Ethernet (41.25Gbps), STM-256 (39.81 Gbps), OTU3 (43.01Gbps), OTU3e2 (44.58Gbps)

DDM/DOM:

Supported

Temperature Range:

Standard 0°-70°C

Connectors:

Double LC

Tx Wavelength Bandwidth:

4 WDM Seperated 1310nm Lanes (13 nm (1271, 1291, 1311, 1331))

Rx Wavelength Bandwidth:

4 WDM Seperated 1310nm Lanes (13nm (1271, 1291, 1311, 1331))

Minimum Transmitting Power:

Each Lane -4 dB

Maximum Transmitting Power:

Each Lane 2.3 dB

Receiver Sensitivity:

Each Lane -13.7 dBm

Receiver Overload:

Each Lane 2.3 dBm

Transmitter Type:

DFB Laser

Receiver Type:

PIN photodiode

Power:

+3.3V single power supply

Chipset:

MAXIM, MINDSPEED, SEMTECH, UX

Compliance:

802.3ba 40GBASE-LR4, CE, Class 1 FDA and IEC60825-1 Laser Safety Compliant, INF-8438i, QSFP+ MSA, RoHS, SFF-8436
