LR Optical corp Finisar SFP Transceiver FTLX8574D3BCL 10G ODM
LR Optical corp Finisar SFP Transceiver FTLX8574D3BCL 10G ODM
LR Optical corp Finisar SFP Transceiver FTLX8574D3BCL 10G ODM
LR Optical corp Finisar SFP Transceiver FTLX8574D3BCL 10G ODM
Specifications
Brand Name :
Finisar
Model Number :
FTLX8574D3BCL
MOQ :
1
Price :
$34
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
1000pcs
Delivery Time :
1-3 days
Description :
Finisar 10G SFP+ LR 10km Singlemode Optical Transceiver for Campus Network Data Center
Condition :
Original New; In stock
Description

Finisar FTLX1475D3BCL 10GBASE-LR/LW SFP+ Transceiver Module



The FTLX1475D3BCL 10Gb/s Enhanced Small Form Factor Pluggable SFP+ optical transceivers are specifically engineered for use in 10-Gigabit Ethernet connections spanning up to 10km over Single Mode fiber. These transceivers are fully compliant with SFF-8431, SFF-8432, and IEEE 802.3ae 10GBASE-LR/LW, as well as 10G Fibre Channel 1200-SM-LL-L. They feature digital diagnostics monitoring, accessible via a 2-wire serial interface, in line with SFF-8472 specifications. Additionally, the FTLX1475D3BCL model incorporates a limiting receiver.


Quick Specification














Model

FTLX1475D3BCL

Description

Finisar 10G SFP+ LR 10km Singlemode Optical Transceiver for Campus Network Data Center

Media Type:

Single-Mode Fiber (SMF)

TX Wavelength:

1310 nm.

RX Wavelength:

1310 nm.

Minimum Optical Budget:

6 dB

Maximum Distance:

10km

Temperature Range:

Commercial -5° to 70°C

Connectors:

Double LC

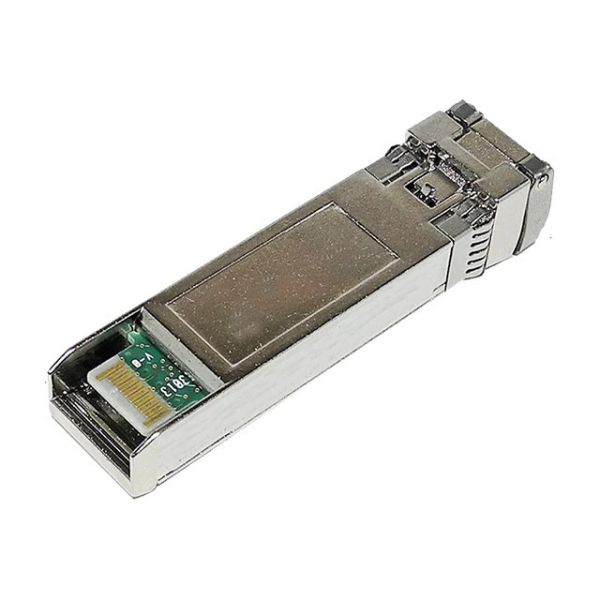

Figure 1 shows the appearance of FTLX1475D3BCL.

LR Optical corp Finisar SFP Transceiver FTLX8574D3BCL 10G ODM





Specific Data Sheet:



FTLX1475D3BCL Specification

Model

FTLX1475D3BCL

Description

Finisar 10G SFP+ LR 10km Singlemode Optical Transceiver for Campus Network Data Center

Media Type:

Single-Mode Fiber (SMF)

TX Wavelength:

1310 nm.

RX Wavelength:

1310 nm.

Minimum Optical Budget:

6 dB

Maximum Distance:

10km

Supported Data Rate:

1.25-10.31 Gbps

Supported Applications:

10G Ethernet (10.31Gbps), Gigabit Ethernet (1.25 Gbps), STM-64 (9.95Gbps)

DDM/DOM:

Support

Temperature Range:

Commercial -5° to 70°C

Connectors:

Double LC

Tx Wavelength Bandwidth:

100 nm (1260-1360 nm)

Rx Wavelength Bandwidth:

100 nm (1260-1360 nm)

Minimum Transmitting Power:

-8 dB

Maximum Transmitting Power:

-0.5 dB

Receiver Sensitivity:

-14 dBm

Receiver Overload:

0.5 dBm

Dispersion:

70-100 ps/nm

Transmitter Type:

DFB Laser

Receiver Type:

PIN photodiode

Power:

+3.3V single power supply

Chipset:

MAXIM, MINDSPEED, SEMTECH

Compliance:

CE, Class 1 FDA and IEC60825-1 Laser Safety Compliant, RoHS, SFF-8431, SFP MSA

Transceiver Type:

SFP+
