2.125Gbps transceiver finisar FTRJ8519P1BNL Module 1000Base-SX 850nm Multimode Fiber
2.125Gbps transceiver finisar FTRJ8519P1BNL Module 1000Base-SX 850nm Multimode Fiber
Specifications
Brand Name :
Finisar
Model Number :
FTRJ8519P1BNL
MOQ :
1
Price :
$25
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
1000pcs
Delivery Time :
1-3 days
Description :
Finisar 2.125Gbps 1000Base-SX Multi-mode Fiber Short Wave 550m 850nm Duplex LC Connector SFP Transceiver Module
Condition :
Original New; In stock
Description

Finisar FTRJ8519P1BNL Dual-Rate 1000BASE-SX SFP Transceiver Module



Finisar FTRJ8519P1BNL Transceiver Module emerges as a powerful player, specifically designed to harness the capabilities of 2 Gigabit Fibre Channel technology. This Optical Low-current SFP (Small Form-factor Pluggable) transceiver module is a key component in the world of data transmission, offering enhanced performance and reliability.


Quick Specification















Model

FTRJ8519P1BNL

Description

Finisar 2.125Gbps 1000Base-SX Multi-mode Fiber Short Wave 550m 850nm Duplex LC Connector SFP Transceiver Module

Body Breadth

13.72 mm

Body Height

12.43 mm

Body Length or Diameter

56.64 mm

Operating Temperature-Max

90.0 Cel

Operating Wavelength-Max

860.0 nm

Operating Wavelength-Max

860.0 nm

Supply Voltage-Max

3.6 V

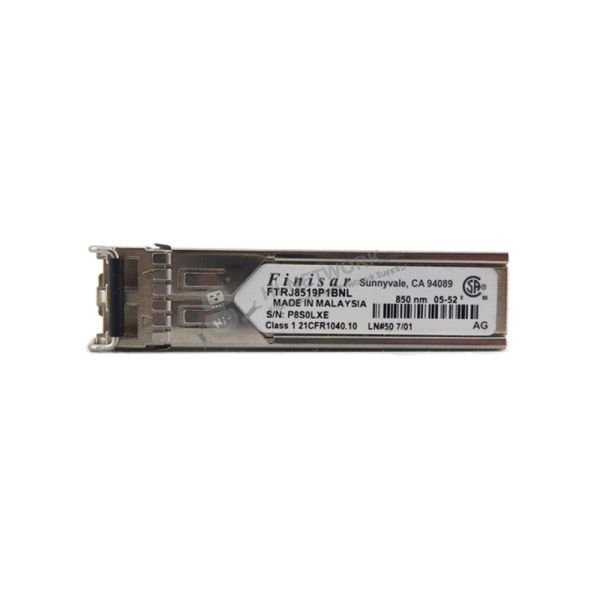

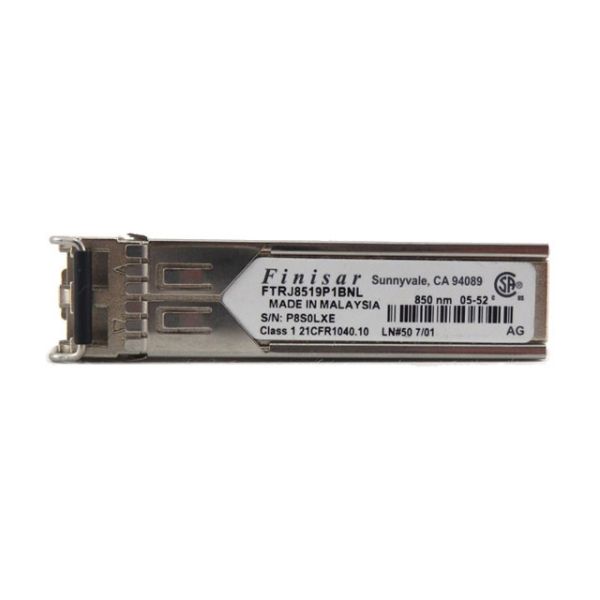

Figure 1 shows the appearance of FTRJ8519P1BNL.

2.125Gbps transceiver finisar FTRJ8519P1BNL Module 1000Base-SX 850nm Multimode Fiber





Specific Data Sheet:



FTRJ8519P1BNL Specification

Model

FTRJ8519P1BNL

Description

Finisar 2.125Gbps 1000Base-SX Multi-mode Fiber Short Wave 550m 850nm Duplex LC Connector SFP Transceiver Module

Fiber Optic Device Type

TRANSCEIVER

Emitter/Detector Type

LASER

Fiber Type

50/125, MMF, 62.5/125, SMF

Body Breadth

13.72 mm

Body Height

12.43 mm

Body Length or Diameter

56.64 mm

Communication Standard

GBE, OC-3; OC-48

Connection Type

LC CONNECTOR

Data Rate (Rx)

2125.0 Mbps

Data Rate (Tx)

2125.0 Mbps

Mounting Feature

PANEL MOUNT

Operating Temperature-Min

-20.0 Cel

Operating Temperature-Max

90.0 Cel

Operating Wavelength-Nom

845.0 nm

Operating Wavelength-Min

830.0 nm

Operating Wavelength-Max

860.0 nm

Optical Power Output-Nom

0.4466 mW

Return Loss-Min

12.0 dB

Sensitivity

-18.0 dBm

Sub Category

Fiber Optic Transceivers

Supply Voltage-Nom

3.3 V

Supply Voltage-Min

3.0 V

Supply Voltage-Max

3.6 V
