500m Finisar 1310nm SFP Optical Transceiver Module FTLF8519P3BNL 1000BASE-SX
500m Finisar 1310nm SFP Optical Transceiver Module FTLF8519P3BNL 1000BASE-SX
500m Finisar 1310nm SFP Optical Transceiver Module FTLF8519P3BNL 1000BASE-SX
500m Finisar 1310nm SFP Optical Transceiver Module FTLF8519P3BNL 1000BASE-SX
500m Finisar 1310nm SFP Optical Transceiver Module FTLF8519P3BNL 1000BASE-SX
500m Finisar 1310nm SFP Optical Transceiver Module FTLF8519P3BNL 1000BASE-SX
Specifications
Brand Name :
Finisar
Model Number :
FTLF8519P3BNL
MOQ :
1
Price :
$27
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
1000pcs
Delivery Time :
1-3 days
Description :
Finisar Optical Transceiver Module Dual LC MMF 850nm 1000BASE-SX 1.25G SFP 500m
Condition :
Original New; In stock
Description

Finisar FTLF8519P3BNL SFP 500m Gigabit Ethernet Optical Transceiver Module



Finisar's FTLF8519P3BNL Small Form Factor Pluggable (SFP) transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA). They are simultaneously compatible with Gigabit Ethernet as specified in IEEE std 802.3 and fiber channel. They are RoHS compliant. Digital diagnostics functions are available via the 2-wire serial bus specified in the SFP MSA.


Quick Specification























Model

FTLF8519P3BNL

Description

Finisar Optical Transceiver Module Dual LC MMF 850nm 1000BASE-SX 1.25G SFP 500m

TX Wavelength:

850 nm.

RX Wavelength:

850 nm.

Minimum Optical Budget:

7.5 dB

Tx Wavelength Bandwidth:

20 nm (840-860 nm)

Rx Wavelength Bandwidth:

20 nm (840-860 nm)

Minimum Transmitting Power:

-9.5 dB

Maximum Transmitting Power:

-3 dB

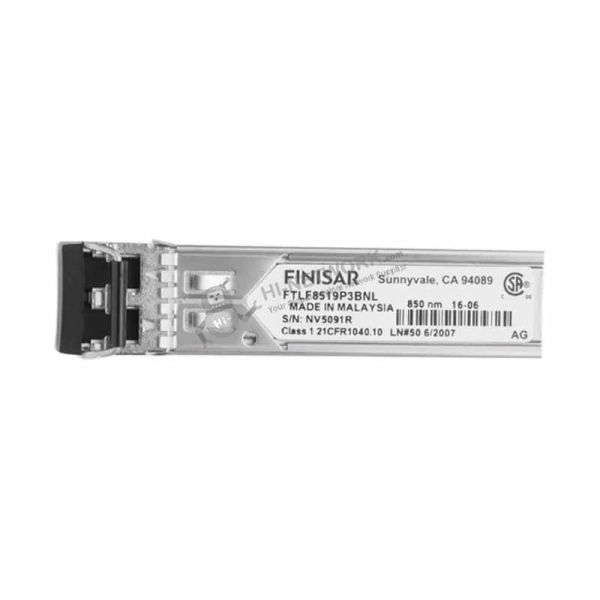

Figure 1 shows the appearance of FTLF8519P3BNL.

500m Finisar 1310nm SFP Optical Transceiver Module FTLF8519P3BNL 1000BASE-SX





Specific Data Sheet:



FTLF8519P3BNL Specification

Model

FTLF8519P3BNL

Description

Finisar Optical Transceiver Module Dual LC MMF 850nm 1000BASE-SX 1.25G SFP 500m

Media Type:

Multi-Mode Fiber (MMF)

TX Wavelength:

850 nm.

RX Wavelength:

850 nm.

Minimum Optical Budget:

7.5 dB

Maximum Distance:

300m

Supported Data Rate:

100-2.67Gbps

DDM/DOM:

Support

Temperature Range:

Extended -20° to 85°C

Connectors:

Double LC

Tx Wavelength Bandwidth:

20 nm (840-860 nm)

Rx Wavelength Bandwidth:

20 nm (840-860 nm)

Minimum Transmitting Power:

-9.5 dB

Maximum Transmitting Power:

-3 dB

Receiver Sensitivity:

-17 dBm

Receiver Overload:

-3 dBm

Dispersion:

110 ps/nm

Transmitter Type:

VSCEL Laser

Receiver Type:

PIN photodiode

Power:

+3.3V single power supply

Chipset:

MAXIM, MINDSPEED, SEMTECH

Compliance:

CE, Class 1 FDA and IEC60825-1 Laser Safety Compliant, INF-8074i, RoHS, SFP MSA

Transceiver Type:

SFP
