MSA IEEE802.3ba Finisar Sfp Transceiver Module FTLC1151RDPL
MSA IEEE802.3ba Finisar Sfp Transceiver Module FTLC1151RDPL
MSA IEEE802.3ba Finisar Sfp Transceiver Module FTLC1151RDPL
MSA IEEE802.3ba Finisar Sfp Transceiver Module FTLC1151RDPL
Specifications
Brand Name :
Finisar
Model Number :
FTLC1151RDPL
MOQ :
1
Price :
$599
Payment Terms :
D/P,T/T,Western Union
Supply Ability :
1000
Delivery Time :
1-3 days
Description :
Finisar 100G 1310NM 100GE-LR4 maximum bit rate LC Multi-Vendor MSA transceiver optic SFP transceiver modules
Condition :
Original New; In stock
Description

Finisar FTLC1151RDPL 100GB BASE-LR4 1310nm QSFP28 Transceiver Module

The QSFP28-100GBaseLR4 is a 103/112 Gbps transceiver module designed for optical communication applications compliant to 100GBASE-LR4 of the IEEE P802.3ba standard and OUT-4. The module converts 4 input channels of 25/28 Gbps electrical data to 4 channels of LAN WDM optical signals and then multiplexes them into a single channel for 103/112 Gbps optical transmission. Reversely on the receiver side, the module de-multiplexes a 103/112 Gbps optical input into 4 channels of LAN WDM optical signals and then converts them to 4 output channels of electrical data. The central wavelengths of the 4 LAN WDM channels are 1295.56, 1300.05, 1304.58 and 1309.14 nm as members of the LAN WDM wavelength grid defined in IEEE 802.3ba. The high-performance cooled LAN WDM EA-DFB transmitters and high sensitivity PIN receivers provide superior performance for 100G applications up to 10km links and compliant to optical interface with IEEE802.3ba Clause 88 100GBASE-LR4 and OUT-4l1-9D1F requirements. The product is designed with form factor, optical/electrical connection and digital diagnostic interface according to the QSFP+ Multi-Source Agreement (MSA).

Quick Specification

Model

FTLC1151RDPL

Description

Finisar 100G 1310NM 100GE-LR4 maximum bit rate LC Multi-Vendor MSA transceiver optic SFP transceiver modules

Form Factor

QSFP28

TX Wavelength

1310nm

Reach

10km

Optical Power Budget

7.3 dB

TX Power Min/Max

-1.3 to 4.5 dBm

RX Power Min/Max

-8.6 to 4.5 dBm

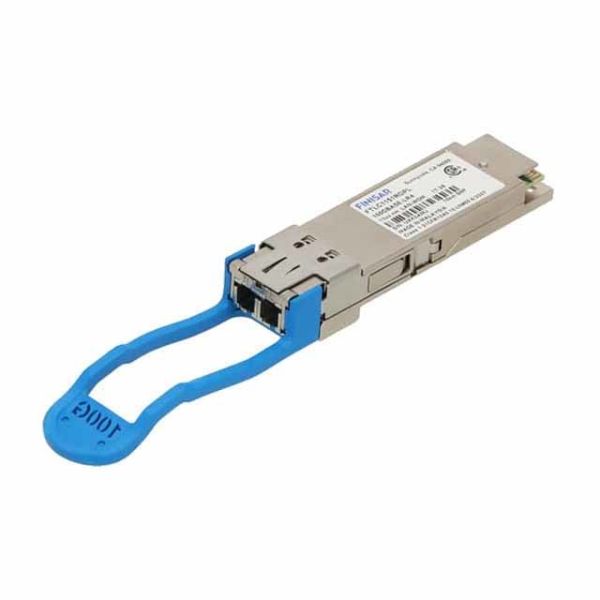

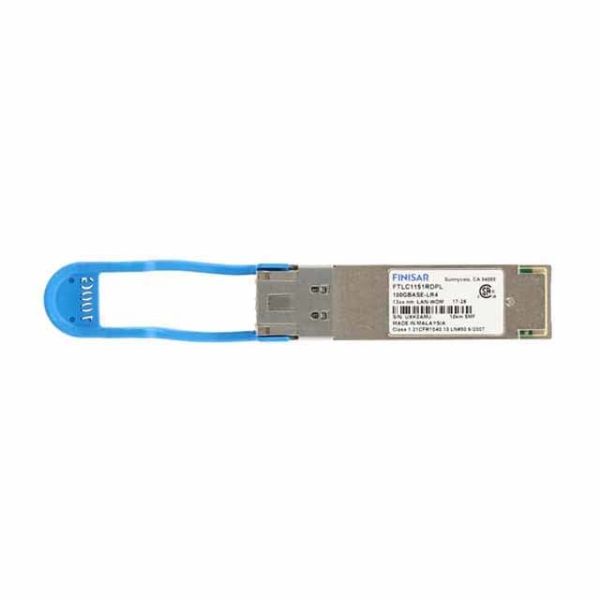

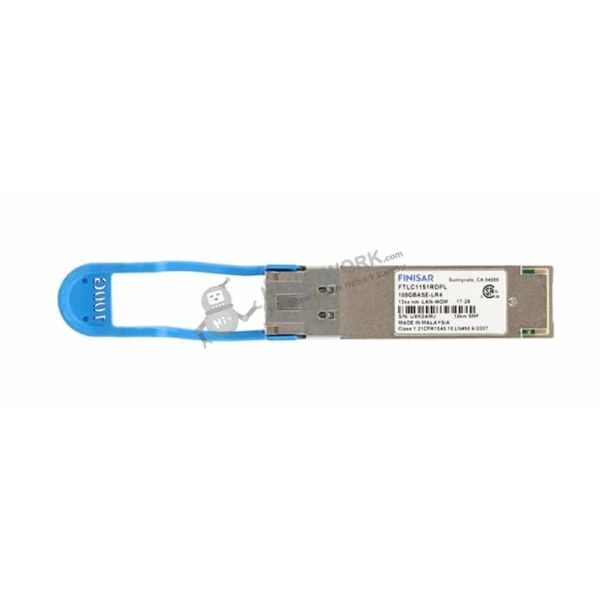

Figure 1 shows the appearance of FTLC1151RDPL.
