Specifications
Brand Name :
FANBAO
Place of Origin :
chinaPort
MOQ :
1
Price :
negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
150sets per month
Delivery Time :
5-8 work days
Packaging Details :
standard export wooden case
Output Torque :
108100N.m
Output Speed :
0.64-350rmp
Input Speed :
750-1500rpm
Weight (KG) :
10kg
Mounting :
Foot mounted, flange mounted
Material :
Steel or cast iron
Gearing Arrangement :
Planetary motor
Port :
Shanghai, Ningbo
Description
Transmission Inline Planetary Cycloidal Gear Reducer Motor For Construction Machinery
Planetary Cycloidal Gear Reducer Specifications
Attribute Value
Gearing Arrangement Planetary motor
Output Torque 108100N.m
Input Speed 750-1500rpm
Output Speed 0.64-350rpm
Weight 10kg
Material Steel or cast iron
Port Shanghai, Ningbo
Mounting Foot mounted, flange mounted
Planetary Cycloidal Gear Reducer Description

The Horizontal Cycloid Gear Motor Cycloidal Drive Reducer is a high-performance transmission device based on planetary transmission principles with cycloidal needle tooth meshing (JB/T2982 compliant). This robust reducer is engineered for demanding industrial applications across multiple sectors.

Key Features
  • Novel transmission mechanism with planetary cycloidal pin-tooth meshing
  • Three-part construction: input, deceleration, and output sections

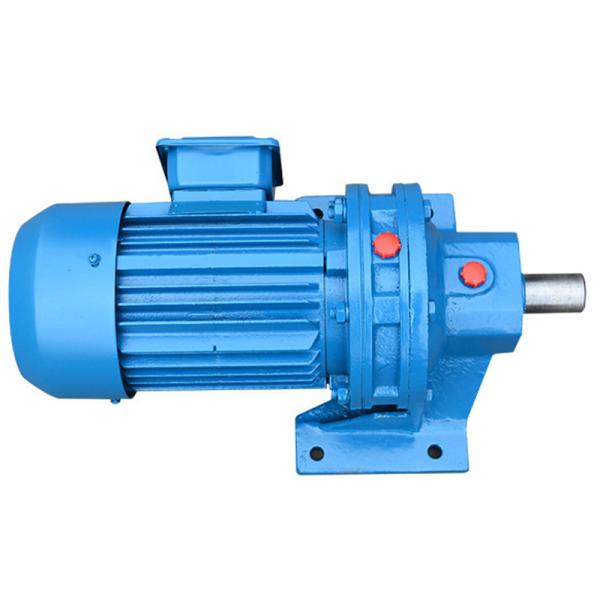

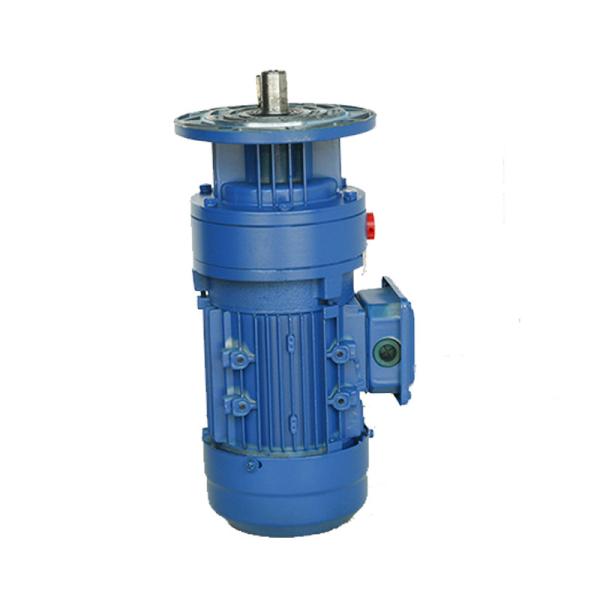

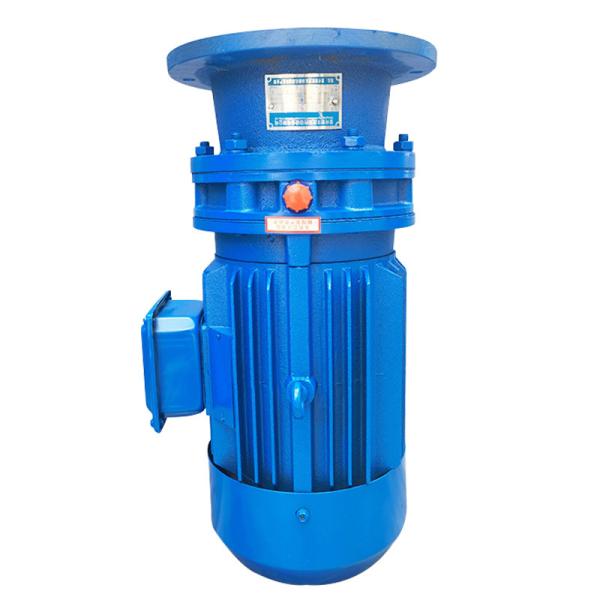

  • Available in horizontal, vertical, biaxial, and direct-connected configurations
  • Durable steel or cast iron construction
  • Compact design with high torque capacity
Industrial Applications

This cycloidal reducer is widely used in:

  • Textile printing and dyeing
  • Light industry and food processing
  • Metallurgical and mining operations
  • Petrochemical plants
  • Hoisting and transportation systems
  • Construction machinery
  • Environmental protection equipment
  • Pharmaceutical and printing industries
  • Power generation facilities
Transmission Inline Cyclo Planetary Gearbox / Cycloidal Drive Reducer 0.64-350rmp 108100N.M Transmission Inline Cyclo Planetary Gearbox / Cycloidal Drive Reducer 0.64-350rmp 108100N.M Transmission Inline Cyclo Planetary Gearbox / Cycloidal Drive Reducer 0.64-350rmp 108100N.M
Model Specifications
Model Power (KW) Shaft Diameter (mm) Center Height (mm) Mounting Pitch (mm) Key Size (mm) Shaft Length (mm) Shaft to Hole (mm)
BWD-B0-0.75 0.75 30 100 90*150 8 35 93
BWD-B1-1.1 1.1 35 120 110*240 10 56 125
BWD-B1-1.5 1.5 35 120 110*240 10 56 125
BWD-B2-2.2 2.2 45 140 150*280 14 68 144
BWD-B2-3.0 3.0 45 140 150*280 14 68 144
BWD-B3-5.5 5.5 55 160 200*340 16 80 149
BWD-B3-7.5 7.5 55 160 200*340 16 80 149
