Foot / Flange Mounted 10kg Cycloidal Reducer Planetary Reduction Gearbox 750rpm-1500rpm
Foot / Flange Mounted 10kg Cycloidal Reducer Planetary Reduction Gearbox 750rpm-1500rpm
Foot / Flange Mounted 10kg Cycloidal Reducer Planetary Reduction Gearbox 750rpm-1500rpm
Foot / Flange Mounted 10kg Cycloidal Reducer Planetary Reduction Gearbox 750rpm-1500rpm
Foot / Flange Mounted 10kg Cycloidal Reducer Planetary Reduction Gearbox 750rpm-1500rpm
Foot / Flange Mounted 10kg Cycloidal Reducer Planetary Reduction Gearbox 750rpm-1500rpm
Specifications
Brand Name :
FANBAO
Place of Origin :
chinaPort
MOQ :
1
Price :
negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
150sets per month
Delivery Time :
5-8 work days
Packaging Details :
standard export wooden case
Gearing Arrangement :
Planetary motor
Mounting :
Foot mounted, flange mounted
Output Speed :
0.64-350rmp
Weight (KG) :
10kg
Output Torque :
108100N.m
Input Speed :
750-1500rpm
Material :
Steel or cast iron
Port :
Shanghai, Ningbo
Description
750rpm-1500rpm Cycloidal Reducer Planetary Reduction Gearbox
Cycloidal Reducer Specifications
Attribute Value
Gearing Arrangement Planetary motor
Output Torque 108100N.m
Cycloidal Reducer Input Speed 750-1500rpm
Output Speed 0.64-350rpm
Weight 10kg
Material Steel or cast iron
Port Shanghai, Ningbo
Mounting Foot mounted, flange mounted
Cycloidal Reducer Overview

The cycloidal reducer is a high-performance transmission mechanism utilizing planetary transmission principles with cycloidal needle tooth meshing, compliant with JB/T2982 standards. Its robust design makes it ideal for demanding applications across multiple industries.

Cycloidal Reducer Key Features
  • Innovative planetary cycloid transmission system
  • Three-component structure: input, reduction, and output sections
  • Versatile mounting options (horizontal, vertical, dual-axis, direct-coupled)
  • High-quality steel or cast iron construction
  • Precision-engineered for smooth operation and durability
Technical Specifications
Model Power (KW) Shaft Diameter (mm) Center Height (mm) Mounting Pitch (mm) Key Size (mm) Shaft Length (mm) Shaft to Hole (mm)
BWD-B0-0.75 0.75 30 100 90*150 8 35 93
BWD-B1-1.1 1.1 35 120 110*240 10 56 125
BWD-B1-1.5 1.5 35 120 110*240 10 56 125
BWD-B2-2.2 2.2 45 140 150*280 14 68 144
BWD-B2-3.0 3.0 45 140 150*280 14 68 144
BWD-B3-5.5 5.5 55 160 200*340 16 80 149
BWD-B3-7.5 7.5 55 160 200*340 16 80 149
Construction Details

The frame is manufactured from high-quality materials with exceptional tensile strength. The casting process includes double-shot treatment to ensure clean inner cavities and perfectly flat surfaces for optimal performance.

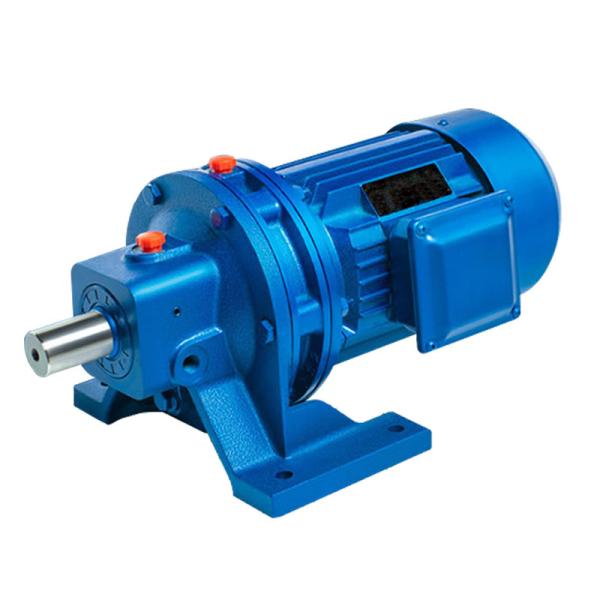

Cycloidal Reducer Images
Foot / Flange Mounted 10kg Cycloidal Reducer Planetary Reduction Gearbox 750rpm-1500rpm Foot / Flange Mounted 10kg Cycloidal Reducer Planetary Reduction Gearbox 750rpm-1500rpm Foot / Flange Mounted 10kg Cycloidal Reducer Planetary Reduction Gearbox 750rpm-1500rpm Foot / Flange Mounted 10kg Cycloidal Reducer Planetary Reduction Gearbox 750rpm-1500rpm Foot / Flange Mounted 10kg Cycloidal Reducer Planetary Reduction Gearbox 750rpm-1500rpm
Industrial Cycloidal Reducer Applications

This cycloidal reducer is widely used in diverse industries including:

  • Textile printing and dyeing
  • Food processing and packaging
  • Mining and metallurgy
  • Petrochemical processing
  • Construction machinery
  • Material handling and transportation
  • Power generation equipment
  • Pharmaceutical manufacturing
