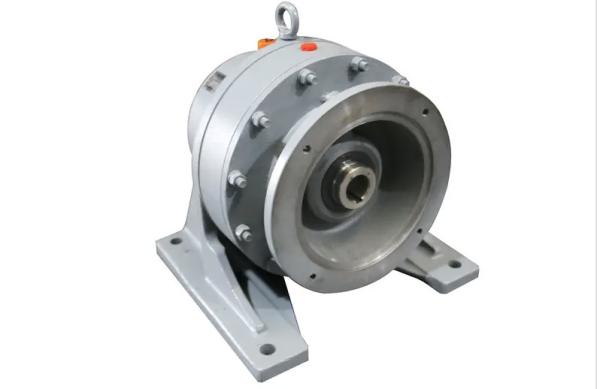

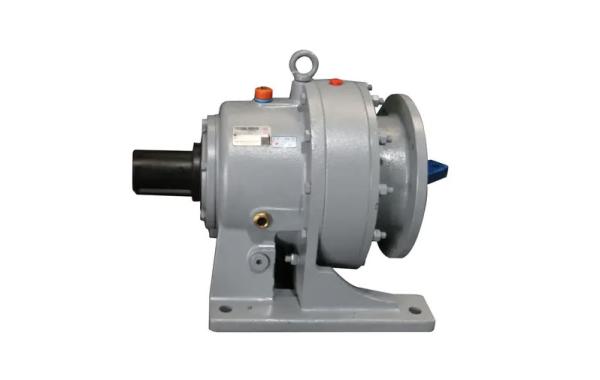

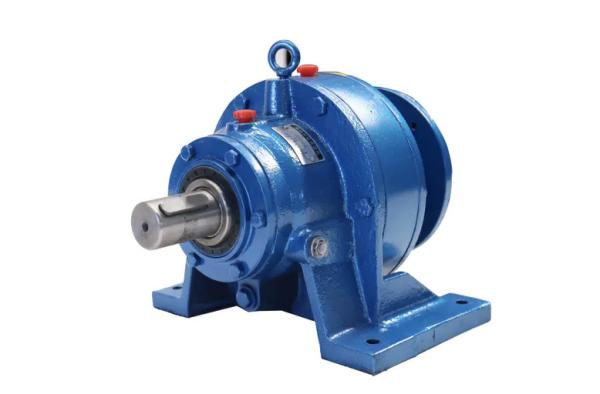

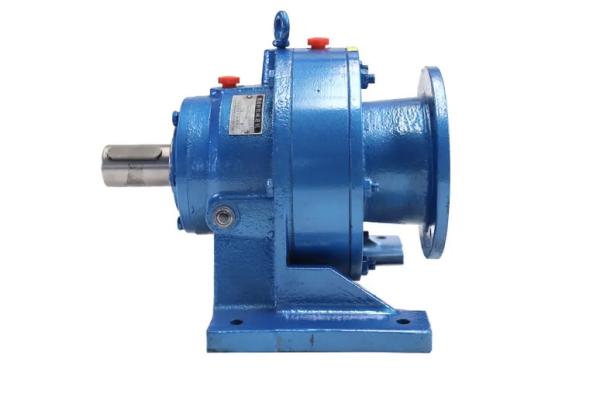

Pinwheel Drive Helical Cycloidal Reducer Gearbox 200HP BW BWD XW XWD
Pinwheel Drive Helical Cycloidal Reducer Gearbox 200HP BW BWD XW XWD
Pinwheel Drive Helical Cycloidal Reducer Gearbox 200HP BW BWD XW XWD
Pinwheel Drive Helical Cycloidal Reducer Gearbox 200HP BW BWD XW XWD
Pinwheel Drive Helical Cycloidal Reducer Gearbox 200HP BW BWD XW XWD
Pinwheel Drive Helical Cycloidal Reducer Gearbox 200HP BW BWD XW XWD
Pinwheel Drive Helical Cycloidal Reducer Gearbox 200HP BW BWD XW XWD
Pinwheel Drive Helical Cycloidal Reducer Gearbox 200HP BW BWD XW XWD
Specifications
Brand Name :
FANBAO
Model Number :
BW、BWD、XW、XWD
MOQ :
2
Price :
USD
Payment Terms :
T/T
Packaging Details :
standard export wooden case
Main Motor Power :
22 KW
Mounting Position :
Horizontal
Weight :
10 kg
Export Market :
Global
Lubrication :
Oil Bath
Ratio :
47:1 and 63:1
Model :
HJR tower model
Voltage :
As per required
Moc :
SS304, SS316
Colour :
Blue/ Red/Grey
Axial Load :
15000
Housing Material :
Cast Iron
Noise Level :
Less than 70 dB
Pitch Angle :
100
Temperature Range :
-10°C to 80°C
Description
200HP Pinwheel Drive Helical Cycloidal Gear Reducer BW BWD XW XWD
Cycloidal Gear Reducer Specifications
Attribute Value
Mounting Position Horizontal
Export Market Global
Lubrication Oil Bath
Ratio 47:1 and 63:1
Main Motor Power 22 KW
Model HJR tower model
Voltage As per required
Weight 10 kg
Axial Load 15000
Housing Material Cast Iron
Noise Level Less than 70 dB
Pitch Angle 100
Temperature Range -10°C to 80°C
Material of Construction SS304, SS316
Color Blue/Red/Grey
BLD BL Cycloid Drive Gear Reducer
The exceptional performance and reliability of our Cycloidal Drive stems from its unique design where 67% of reduction components maintain constant contact. This surpasses traditional helical and planetary gear systems, operating through compression rather than shear to withstand shock loads exceeding 500% of rated capacity.
Pinwheel Drive Helical Cycloidal Reducer Gearbox 200HP BW BWD XW XWD Pinwheel Drive Helical Cycloidal Reducer Gearbox 200HP BW BWD XW XWD
Key Advantages
  • Wide Range of Capacities: Available in sizes up to 200HP with reduction ratios to 658,503:1, customizable for specific industry requirements.
  • Smooth Operation: Rolling motion design eliminates tooth breakage common in conventional gear systems.
  • High Efficiency: 93% efficiency in single stage and 86% in double stage configurations through rolling contact technology.
  • Durable Construction: High carbon chromium bearing grade steel components hardened to HRC 61-63 withstand intermittent shock loads up to 500% of rated torque.
Pinwheel Drive Helical Cycloidal Reducer Gearbox 200HP BW BWD XW XWD Pinwheel Drive Helical Cycloidal Reducer Gearbox 200HP BW BWD XW XWD
Technical Specifications
BW, BWD, XW, XWD Type (Single Stage) Dimensions
NO. Dimensions Installation Size Shaft End Size Weight
B10 120 185 214 165
11 160 280 263 194
12 200 320 320 246
