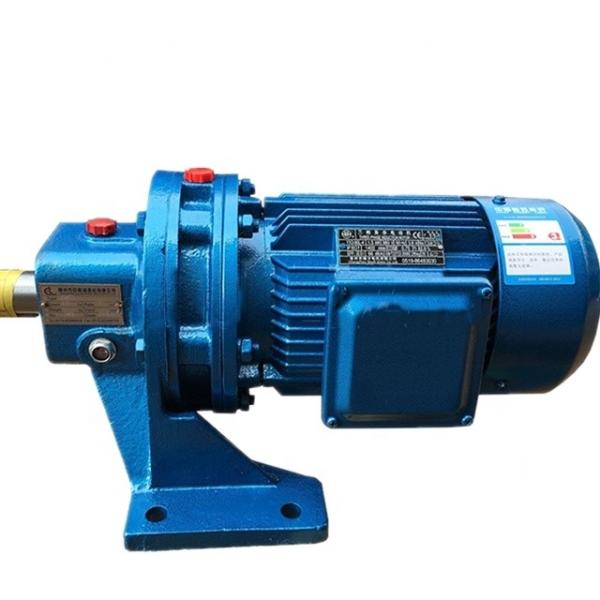

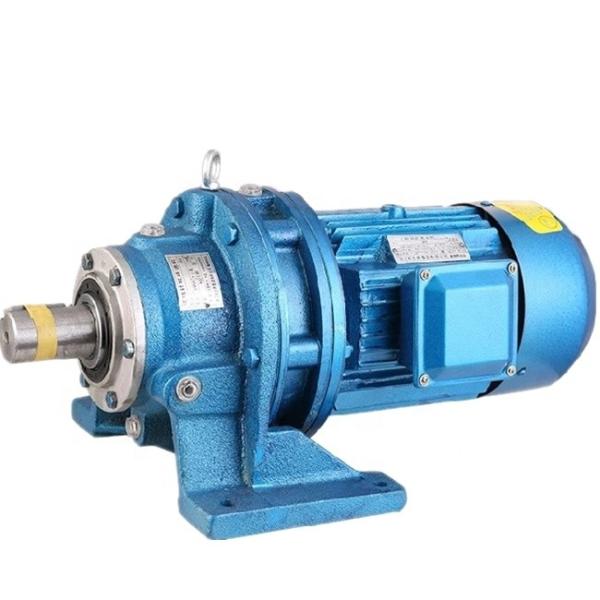

Customized 43:1 Planetary Cycloidal Gear Reducer Small For Transmission
Customized 43:1 Planetary Cycloidal Gear Reducer Small For Transmission
Customized 43:1 Planetary Cycloidal Gear Reducer Small For Transmission
Customized 43:1 Planetary Cycloidal Gear Reducer Small For Transmission
Customized 43:1 Planetary Cycloidal Gear Reducer Small For Transmission
Customized 43:1 Planetary Cycloidal Gear Reducer Small For Transmission
Specifications
Brand Name :
FANBAO
Model Number :
BWD4
Certification :
CE
Place of Origin :
chinaPort
MOQ :
1
Price :
negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
150sets per month
Delivery Time :
5-8 work days
Packaging Details :
standard export wooden case
Product name :
Bwd4 Horizontal Foot Plate Mounted Ordinary Motor Direct Link Cycloidal Pin Gearbox
Input Speed :
300-1800Rpm
Gearing Arrangement :
Planetary motor
Output Torque :
2.6-1195N.M
Output Speed :
14-280rpm
Weight (KG) :
30kg
Ratio :
9-2800
Material :
Steel or cast iron
Port :
Shanghai, Ningbo
Description
Small Transmission Planetary Cycloid Reducer Gearbox 43:1 Customized
Cycloid Reducer Gearbox Specifications
Attribute Value
Gearing Arrangement Planetary motor
Output Torque 2.6-1195N.M
Input Speed 300-1800Rpm
Output Speed 14-280rpm
Weight 30kg
Ratio 9-2800
Material Steel or cast iron
Port Shanghai, Ningbo
Cycloid Reducer Gearbox Overview

The cycloidal gear reducer operates on a cycloid needle teeth meshing planetary transmission principle. This versatile transmission system offers high efficiency and can operate in both positive and negative directions.

Industrial Applications
  • Power Plant Equipment
  • Metallurgical Industry
  • Metal Forming Machinery
  • Petrochemical Industry & Mining Machines
  • Hoisting Machinery
  • Construction Industry
  • Environmental Protection Industry
  • Cable Industry
  • Food Machinery
Key Features
  • Single stage drive with reduction ratio up to 1:87 and high efficiency
  • Compact structure with input and output shafts aligned on the same axis
  • Cycloid gear design provides high overlap coefficient for stable operation and reduced noise
  • Constructed from bearing steel for extended service life
Technical Parameters
Parameter Specification
Stage Number One-stage or two-stage
Housing Material Iron casting
Hardness of Tooth Surface HRC58-62
Installation Type Horizontal or vertical
Bearing NSK, NAK, FAG, HRB, etc.
Ratio 9-7569
Customized 43:1 Planetary Cycloidal Gear Reducer Small For Transmission
Dimensional Specifications

Detailed dimensional data available upon request. Please contact our technical team for complete specifications including contour dimensions, installation dimensions, and shaft end sizes.
