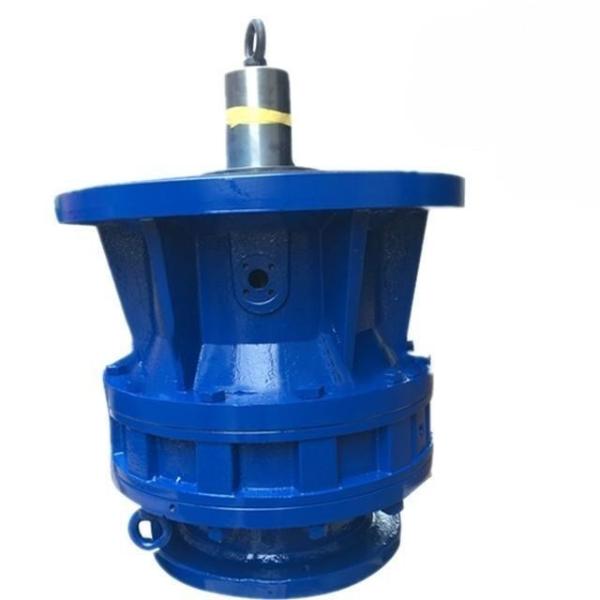

FANBAO Vertical Planetary Cycloidal Gear Motor Reducer Flange Mounted 40kg Weight
FANBAO Vertical Planetary Cycloidal Gear Motor Reducer Flange Mounted 40kg Weight
FANBAO Vertical Planetary Cycloidal Gear Motor Reducer Flange Mounted 40kg Weight
FANBAO Vertical Planetary Cycloidal Gear Motor Reducer Flange Mounted 40kg Weight
FANBAO Vertical Planetary Cycloidal Gear Motor Reducer Flange Mounted 40kg Weight
FANBAO Vertical Planetary Cycloidal Gear Motor Reducer Flange Mounted 40kg Weight
FANBAO Vertical Planetary Cycloidal Gear Motor Reducer Flange Mounted 40kg Weight
FANBAO Vertical Planetary Cycloidal Gear Motor Reducer Flange Mounted 40kg Weight
Specifications
Brand Name :
FANBAO
Place of Origin :
chinaPort
MOQ :
1
Price :
negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
150sets per month
Delivery Time :
5-8 work days
Packaging Details :
standard export wooden case
Material :
Steel or cast iron
Weight (KG) :
40kg
Gearing Arrangement :
Planetary motor
Mounting :
Foot mounted, flange mounted
Output Torque :
48.3-11920N.M
Input Speed :
750-1500rpm
Output Speed :
17-136rpm
Port :
Shanghai, Ningbo
Structures :
Bearing + Gear + Box
Description
Vertical Planetary Cycloidal Gear Motor Reducer Flange Mounted
Cycloidal Gear Motor Specifications
Attribute Value
Gearing Arrangement Planetary motor
Output Torque 48.3-11920N.M
Input Speed 750-1500rpm
Output Speed 17-136rpm
Weight 40kg
Material Steel or cast iron
Port Shanghai, Ningbo
Mounting Foot mounted, flange mounted
Structures Bearing + Gear + Box
Cycloidal Gear Reducer
Advanced Transmission Technology

The cycloid reducer is a novel transmission device that adopts the K-H-V planetary transmission principle with small tooth difference. This precision-engineered system features a double eccentric sleeve with 180-degree dislocation on the input shaft, creating an efficient H mechanism through roller bearings. The cycloidal wheels mesh with needle gears to form a high-performance internal meshing deceleration mechanism.

Industrial Applications

This reducer is widely used in demanding industrial environments including metallurgy, mining, lifting, transportation, cement production, construction, chemical processing, textile manufacturing, pharmaceuticals, food production, and environmental protection systems. It operates reliably in temperatures ranging from -40℃ to 40℃, with oil temperatures not exceeding 80℃ under normal load conditions.

Cycloidal Gear Motor Key Advantages
  • Stable operation: Multiple tooth pair contact ensures large coincidence, strong overload capacity, and minimal vibration
  • High efficiency: Primary reduction efficiency reaches 94% with reduction ratios from 9-87 (single-stage) up to 5133 (two-stage)
  • Durable construction: High-carbon alloy steel components (HRC58-62) with precision grinding ensure long service life
  • Low maintenance: Rolling friction design minimizes wear in the meshing area
Product Models
Model Power (KW) Shaft Diameter (mm) Center Height (mm) Mounting Pitch (mm) Key Size (mm) Shaft Length (mm) Shaft to Hole (mm)
BWD-B0-0.75 0.75 30 100 90*150 8 35 93
BWD-B1-1.1 1.1 35 120 110*240 10 56 125
BWD-B1-1.5 1.5 35 120 110*240 10 56 125
BWD-B2-2.2 2.2 45 140 150*280 14 68 144
BWD-B2-3.0 3.0 45 140 150*280 14 68 144
BWD-B3-5.5 5.5 55 160 200*340 16 80 149
BWD-B3-7.5 7.5 55 160 200*340 16 80 149
FANBAO Vertical Planetary Cycloidal Gear Motor Reducer Flange Mounted 40kg Weight FANBAO Vertical Planetary Cycloidal Gear Motor Reducer Flange Mounted 40kg Weight FANBAO Vertical Planetary Cycloidal Gear Motor Reducer Flange Mounted 40kg Weight FANBAO Vertical Planetary Cycloidal Gear Motor Reducer Flange Mounted 40kg Weight
Maintenance Guidelines

Important: The horizontal cycloid reducer is normally lubricated by oil pool, with oil level maintained at the middle of the oil window. For harsh conditions or high ambient temperatures, use circulating lubrication.

The reducer ships without lubricating oil. Initial operation requires oil change after 100 hours, followed by regular changes every six months (8-hour work system). More frequent changes may be needed for severe operating conditions.
