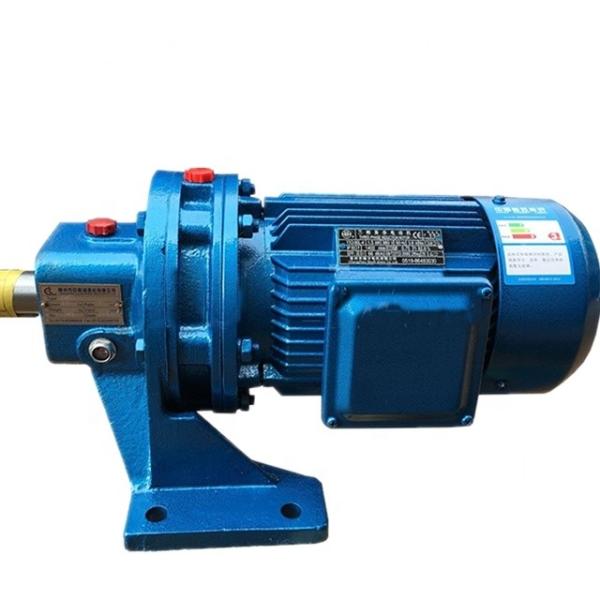

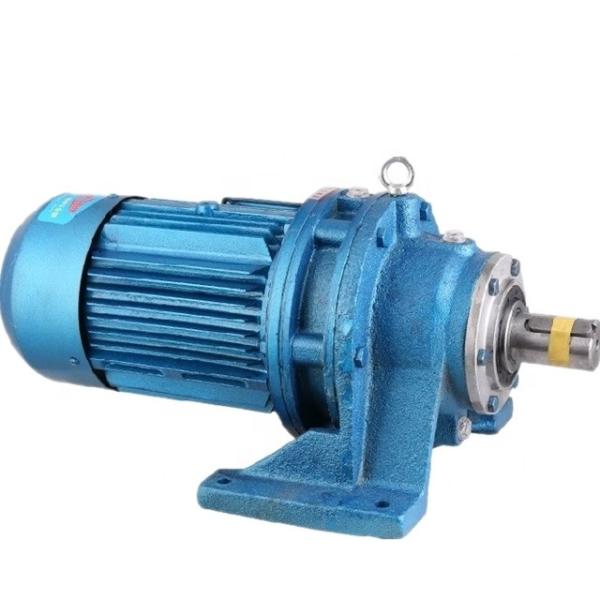

Foot Plate Mounted Planetary BWD4 Cyclo Drive Gearbox Motor 1800Rpm
Foot Plate Mounted Planetary BWD4 Cyclo Drive Gearbox Motor 1800Rpm
Foot Plate Mounted Planetary BWD4 Cyclo Drive Gearbox Motor 1800Rpm
Foot Plate Mounted Planetary BWD4 Cyclo Drive Gearbox Motor 1800Rpm
Foot Plate Mounted Planetary BWD4 Cyclo Drive Gearbox Motor 1800Rpm
Foot Plate Mounted Planetary BWD4 Cyclo Drive Gearbox Motor 1800Rpm
Foot Plate Mounted Planetary BWD4 Cyclo Drive Gearbox Motor 1800Rpm
Foot Plate Mounted Planetary BWD4 Cyclo Drive Gearbox Motor 1800Rpm
Specifications
Brand Name :
FANBAO
Model Number :
BWD4
Certification :
CE
Place of Origin :
chinaPort
MOQ :
1
Price :
negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
150sets per month
Delivery Time :
5-8 work days
Packaging Details :
standard export wooden case
Input Speed :
300-1800Rpm
Output Speed :
14-280rpm
Gearing Arrangement :
Planetary motor
Output Torque :
2.6-1195N.M
Material :
Steel or cast iron
Weight (KG) :
30kg
Product name :
Bwd4 Horizontal Foot Plate Mounted Ordinary Motor Direct Link Cycloidal Pin Gearbox
Ratio :
9-2800
Port :
Shanghai, Ningbo
Description
BWD4 Foot Plate Mounted Planetary Cycloidal Gear Reducer Motor 1800Rpm
Cycloidal Gear Reducer Specifications
Attribute Value
Gearing Arrangement Planetary motor
Output Torque 2.6-1195N.M
Input Speed 300-1800Rpm
Output Speed 14-280rpm
Weight 30kg
Ratio 9-2800
Material Steel or cast iron
Port Shanghai, Ningbo
Cycloidal Gear Reducer Overview

The BWD4 Horizontal Foot Plate Mounted Cycloidal Pin Gearbox utilizes cycloid needle teeth meshing planetary transmission principles, offering an ideal drive solution with versatile operation capabilities in both positive and negative directions.

Industrial Applications
  • Power Plant Equipment
  • Metallurgical Industry
  • Metal Forming Machinery
  • Petrochemical Industry & Mining Machines
  • Hoisting Machinery
  • Construction Industry
  • Environmental Protection Industry
  • Cable Industry
  • Food Machinery
Cycloidal Gear Reducer Key Features
  • Single stage drive with reduction ratio up to 1:87 and high efficiency
  • Compact coaxial design with input and output shafts aligned
  • Cycloid gear with high overlap coefficient ensures stable operation and reduced noise
  • Constructed from bearing steel for extended service life
Technical Parameters
Parameter Specification
Stage Number One-stage or two-stage
Housing Material Iron casting
Tooth Surface Hardness HRC58-62
Installation Type Horizontal or vertical
Bearing NSK, NAK, FAG, HRB, etc.
Ratio Range 9-7569
Quality Assurance

Each reducer undergoes rigorous airtight testing before spraying to minimize oil leakage and air leakage incidents. Our commitment to quality ensures long service life and reliable performance for customer satisfaction.

Cycloidal Gear Reducer Components
  • High-quality cycloidal wheel made from bearing steel with excellent heat treatment
  • Precision-engineered output shaft for optimal performance
  • Durable construction for high strength and long rolling contact friction
Cycloidal Gear Reducer Images
Foot Plate Mounted Planetary BWD4 Cyclo Drive Gearbox Motor 1800Rpm
Foot Plate Mounted Planetary BWD4 Cyclo Drive Gearbox Motor 1800Rpm
Foot Plate Mounted Planetary BWD4 Cyclo Drive Gearbox Motor 1800Rpm
Foot Plate Mounted Planetary BWD4 Cyclo Drive Gearbox Motor 1800Rpm
Foot Plate Mounted Planetary BWD4 Cyclo Drive Gearbox Motor 1800Rpm
Foot Plate Mounted Planetary BWD4 Cyclo Drive Gearbox Motor 1800Rpm
Foot Plate Mounted Planetary BWD4 Cyclo Drive Gearbox Motor 1800Rpm
