BWD3 XWD1 Two Stage Cyclo Planetary Gearbox Horizontal 30kg Cycloidal Speed Reducer
BWD3 XWD1 Two Stage Cyclo Planetary Gearbox Horizontal 30kg Cycloidal Speed Reducer
BWD3 XWD1 Two Stage Cyclo Planetary Gearbox Horizontal 30kg Cycloidal Speed Reducer
BWD3 XWD1 Two Stage Cyclo Planetary Gearbox Horizontal 30kg Cycloidal Speed Reducer
BWD3 XWD1 Two Stage Cyclo Planetary Gearbox Horizontal 30kg Cycloidal Speed Reducer
BWD3 XWD1 Two Stage Cyclo Planetary Gearbox Horizontal 30kg Cycloidal Speed Reducer
BWD3 XWD1 Two Stage Cyclo Planetary Gearbox Horizontal 30kg Cycloidal Speed Reducer
BWD3 XWD1 Two Stage Cyclo Planetary Gearbox Horizontal 30kg Cycloidal Speed Reducer
BWD3 XWD1 Two Stage Cyclo Planetary Gearbox Horizontal 30kg Cycloidal Speed Reducer
BWD3 XWD1 Two Stage Cyclo Planetary Gearbox Horizontal 30kg Cycloidal Speed Reducer
BWD3 XWD1 Two Stage Cyclo Planetary Gearbox Horizontal 30kg Cycloidal Speed Reducer
BWD3 XWD1 Two Stage Cyclo Planetary Gearbox Horizontal 30kg Cycloidal Speed Reducer
Specifications
Brand Name :
FANBAO
Model Number :
BWD4
Certification :
CE
Place of Origin :
chinaPort
MOQ :
1
Price :
negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
150sets per month
Delivery Time :
5-8 work days
Packaging Details :
standard export wooden case
Gearing Arrangement :
Planetary motor
Output Torque :
2.6-1195N.M
Input Speed :
300-1800Rpm
Output Speed :
14-280rpm
Weight (KG) :
30kg
Product name :
Bwd4 Horizontal Foot Plate Mounted Ordinary Motor Direct Link Cycloidal Pin Gearbox
Ratio :
9-2800
Material :
Steel or cast iron
Description
BWD3 XWD1 Two Stage Cyclo Planetary Gearbox Horizontal 30kg Cycloidal Speed Reducer
cycloidal gear reducer (often called a cycloidal drive, cyclo drive, or cycloidal speed reducer) is a specialized type of precision gearbox known for extremely high reduction ratios, compact size, exceptional shock load capacity, near-zero backlash, and high torque density. It operates on a fundamentally different principle than planetary or harmonic drives.
Product Specifications
Gearing Arrangement Planetary motor
Output Torque 2.6-1195N.M
Input Speed 300-1800Rpm
Output Speed 14-280rpm
Weight 30kg
Ratio 9-2800
Material Steel or cast iron
Port Shanghai, Ningbo
Product Overview

The cycloidal pinwheel reducer is an advanced transmission device that combines planetary transmission principles with cycloid pin tooth interlocking. This robust system consists of three main components: the input section, reduction unit, and output section.

Key Features
  • Single stage drive with reduction ratio up to 1:87 and high efficiency
  • Compact coaxial design with input and output shafts aligned
  • Cycloid gear with high overlap coefficient ensures stable operation and reduced noise
  • Constructed from durable bearing steel for extended service life
  • Available in horizontal, vertical, dual-axis, and direct-coupled configurations
Technical Specifications
Model BWD, BXD
Installation Direct connection or flange mounting
Motor Options Factory equipped or premium brands (Siemens, ABB)
Stage Ratio 9, 11, 17, 23, 29, 35, 43, 59, 71, 87, 121, 187, 289, 385, 473, 595, 731, 989, 1225, 1849
Operating Conditions

1. Suitable for continuous operation with bidirectional rotation capability (some models are unidirectional only)

2. Rated input shaft speed of 1500 rpm (960 rpm recommended for power >18.5 kW)

3. Maximum horizontal installation angle ≤15° (special measures required beyond this)

4. Output shaft cannot withstand excessive axial/radial forces (requires additional support if present)

Quality Assurance

Each reducer undergoes rigorous airtight testing before finishing to prevent oil leakage. Our premium construction materials include:

  • High-strength carbon steel housing for durability and dust protection
  • Precision cycloidal wheel made from bearing steel with heat treatment
  • Optimized rolling contact friction at critical components

Advantages

  1. Very High Reduction Ratios: Easily achieves single-stage ratios from 10:1 to over 100:1.

  2. Compact & Lightweight: Delivers high torque in a small package.

  3. High Torque Density: Exceptional torque output relative to size and weight.

  4. High Shock Load Capacity: Rolling contact between pins/lobes handles impacts well.

  5. Near-Zero Backlash: Tight manufacturing tolerances and rolling contact minimize backlash (<1 arc-min common), critical for precision motion.

  6. High Efficiency: Typically 80-90% per stage (lower than planetary at high ratios, but excellent for the ratio/robustness).

  7. High Stiffness & Torsional Rigidity: Resists deflection under load.

  8. Long Life & Reliability: Rolling contact has lower wear than sliding friction (e.g., harmonic drives); bearings are often the life-limiting factor.

  9. Good Overhung Load Capacity: Handles significant radial loads on the output.

Product Images

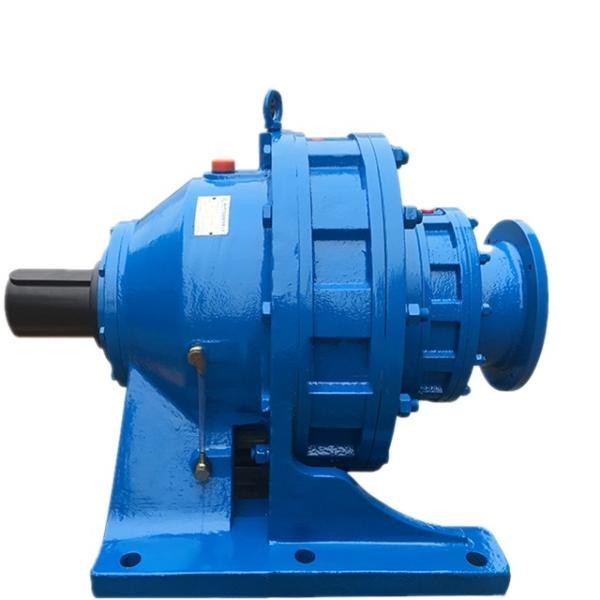

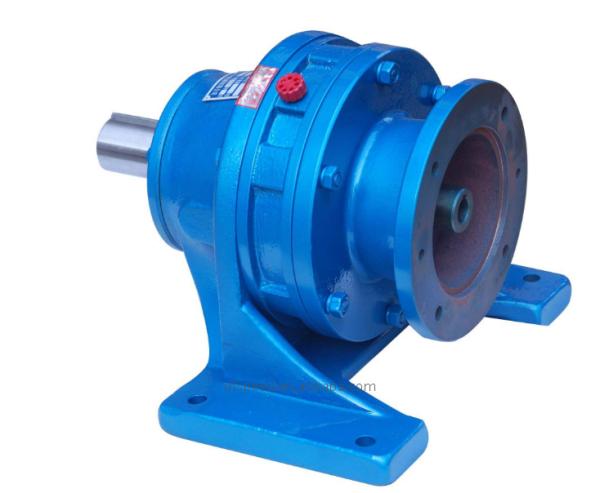

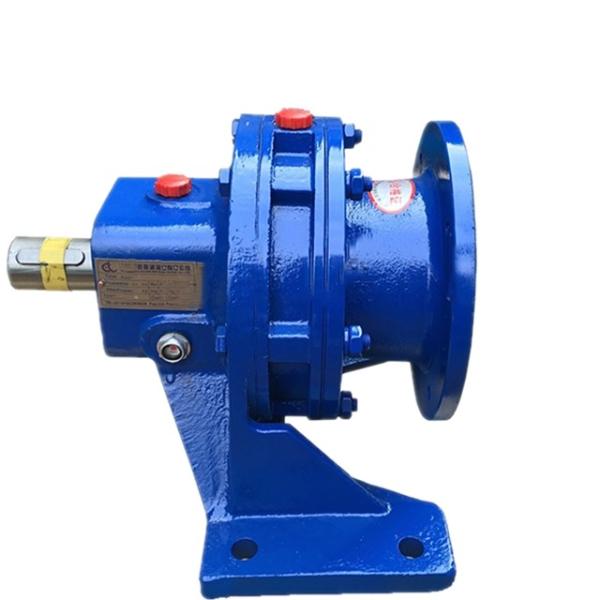

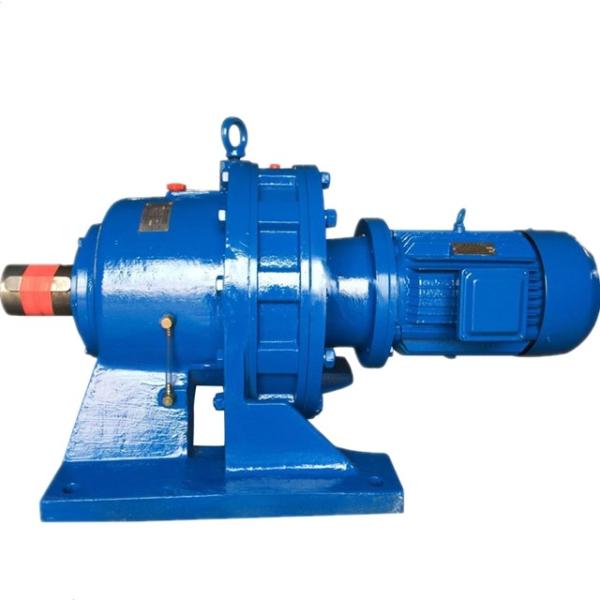

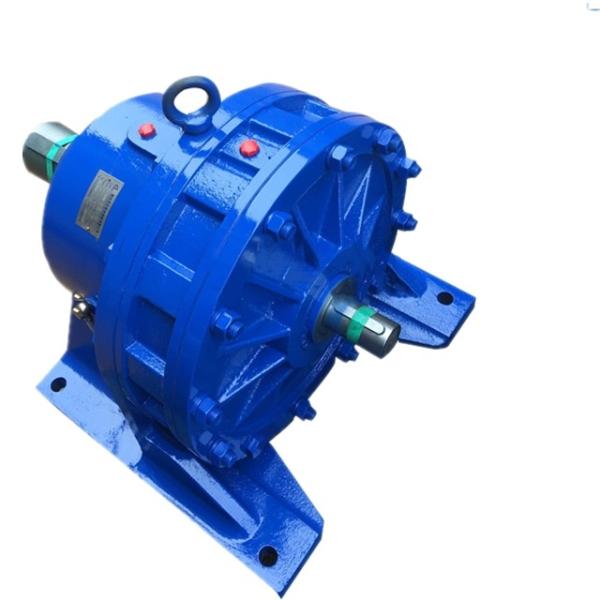

BWD3 XWD1 Two Stage Cyclo Planetary Gearbox Horizontal 30kg Cycloidal Speed Reducer BWD3 XWD1 Two Stage Cyclo Planetary Gearbox Horizontal 30kg Cycloidal Speed Reducer BWD3 XWD1 Two Stage Cyclo Planetary Gearbox Horizontal 30kg Cycloidal Speed Reducer BWD3 XWD1 Two Stage Cyclo Planetary Gearbox Horizontal 30kg Cycloidal Speed Reducer BWD3 XWD1 Two Stage Cyclo Planetary Gearbox Horizontal 30kg Cycloidal Speed Reducer BWD3 XWD1 Two Stage Cyclo Planetary Gearbox Horizontal 30kg Cycloidal Speed Reducer BWD3 XWD1 Two Stage Cyclo Planetary Gearbox Horizontal 30kg Cycloidal Speed Reducer BWD3 XWD1 Two Stage Cyclo Planetary Gearbox Horizontal 30kg Cycloidal Speed Reducer BWD3 XWD1 Two Stage Cyclo Planetary Gearbox Horizontal 30kg Cycloidal Speed Reducer
Industrial Applications

This versatile cycloidal reducer serves critical roles in petroleum, environmental protection, chemical processing, cement production, transportation, textiles, pharmaceuticals, food processing, printing, lifting equipment, mining, metallurgy, construction, and power generation applications.
