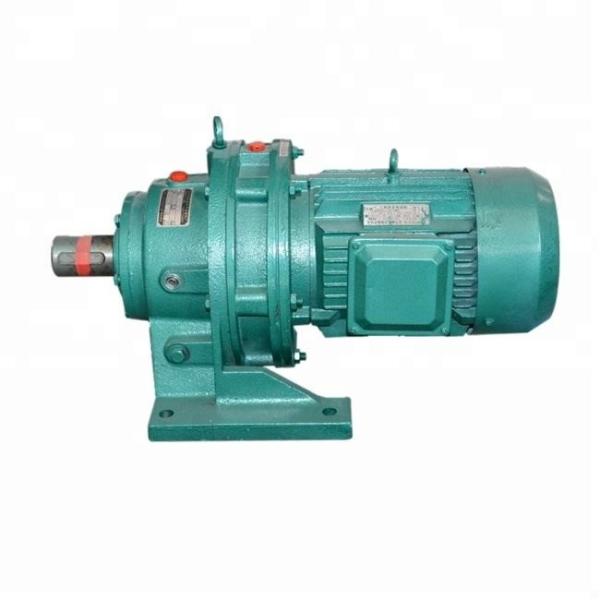

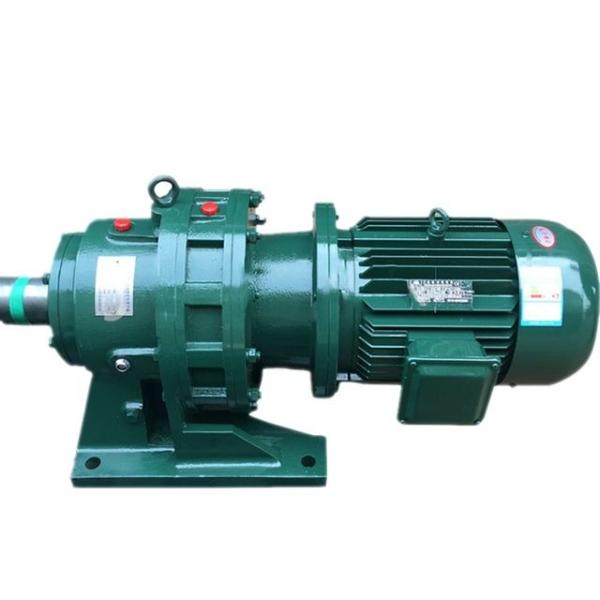

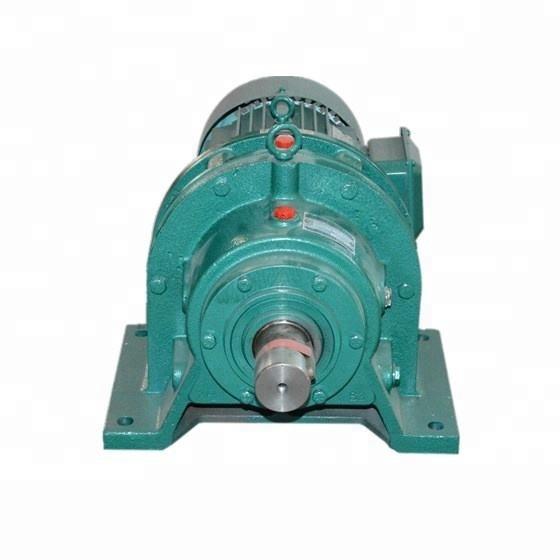

Planetary Cycloidal Gear Reducer Pinwheel Bwd6 Bwd7 14-280rpm Output Speed
Planetary Cycloidal Gear Reducer Pinwheel Bwd6 Bwd7 14-280rpm Output Speed
Planetary Cycloidal Gear Reducer Pinwheel Bwd6 Bwd7 14-280rpm Output Speed
Planetary Cycloidal Gear Reducer Pinwheel Bwd6 Bwd7 14-280rpm Output Speed
Planetary Cycloidal Gear Reducer Pinwheel Bwd6 Bwd7 14-280rpm Output Speed
Planetary Cycloidal Gear Reducer Pinwheel Bwd6 Bwd7 14-280rpm Output Speed
Planetary Cycloidal Gear Reducer Pinwheel Bwd6 Bwd7 14-280rpm Output Speed
Planetary Cycloidal Gear Reducer Pinwheel Bwd6 Bwd7 14-280rpm Output Speed
Specifications
Brand Name :
FANBAO
Certification :
CE
Place of Origin :
china
MOQ :
1
Price :
negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
150sets per month
Delivery Time :
5-8 work days
Packaging Details :
standard export wooden case
Gearing Arrangement :
Planetary motor
Output Torque :
50~2300Nm
Applicable Industries :
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Restaurant, Food Shop, Printing Shops, Construction works , Food & Beverage Shops, Advertising Company
Input Speed :
1400Rpm
Output Speed :
14-280rpm
Weight (KG) :
55kg
Ratio :
9-2800
Material :
Steel or cast iron
Port :
Shanghai, Ningbo
Input form :
IEC flange, direct with motor, shaft input
Description
280rpm Planetary Cycloidal Gear Reducer Pinwheel Bwd6 Bwd7
Product Specifications
Gearing Arrangement:
Planetary motor
Output Torque:
50~2300Nm
Input Speed:
1400Rpm
Output Speed:
14-280rpm
Weight:
55kg
Ratio:
9-2800
Material:
Steel or cast iron
Port:
Shanghai, Ningbo
Input Form:
IEC flange, direct with motor, shaft input
Product Description
The cycloidal pinwheel reducer (Bwd1-Bwd7 series) is an advanced transmission device combining planetary transmission principles with cycloid pin tooth meshing technology. This robust system consists of three main components: input section, deceleration segment, and output division.
This versatile reducer finds applications across multiple industries including petroleum, environmental protection, chemical processing, cement production, transportation, textiles, pharmaceuticals, food processing, printing, material handling, mining, metallurgy, construction, and power generation. Available in horizontal, vertical, biaxial, and direct-connected configurations.
Key Features
  • High Speed Ratio and Efficiency
    Single stage achieves 1:87 reduction ratio with over 90% efficiency. Multistage options available for greater ratios.
  • Compact Structure
    Planetary transmission design with coaxial input/output shafts minimizes footprint.
  • Low Noise Operation
    Cycloidal needle tooth engagement ensures quiet performance with large overlap coefficient.
  • Durable Construction
    High-strength bearing steel components with quenching treatment. Load sharing design reduces tooth breakage risk.
  • User-Friendly Design
    Simplified maintenance with minimal parts and straightforward lubrication requirements.
Technical Specifications
Planetary Cycloidal Gear Reducer Pinwheel Bwd6 Bwd7 14-280rpm Output Speed
BW, BWD, XW, XWD type (Two stage) shape and installation dimensions
Applicable Industries
Hotels, Garment Shops, Building Material Shops, Manufacturing Plants, Machinery Repair Shops, Farms, Restaurants, Food Shops, Printing Shops, Construction Works, Food & Beverage Shops, Advertising Companies.

When selecting or specifying a BWD6 or BWD7 reducer for 280 RPM output:

  1. Motor Input Speed (RPM): Essential for calculating the actual required reduction ratio.

  2. Required Reduction Ratio (i): Based on Input RPM / 280.

  3. Required Output Torque (Nm): Calculate based on your load, inertia, acceleration needs, and safety factor.

  4. Service Factor (SF): Account for shock loads, operating hours/day, starts/stops (Consult AGMA or manufacturer tables).

  5. Mounting Configuration: Foot-mounted (BWD), Flange-mounted (BWED), Shaft-mounted (BWSD)? BWD usually implies foot-mounted.

  6. Input Configuration: Solid shaft, hollow shaft (with key or locknut), IEC motor adapter?

  7. Backlash Requirement: Cycloidals naturally have very low backlash (<1 arc-min common), but confirm if your application needs a specific tolerance.

  8. Lubrication: Type and change intervals.
