Robust 5xD U Drill Straight Shank Design Letter U Drill For CNC Machine
Robust 5xD U Drill Straight Shank Design Letter U Drill For CNC Machine
Specifications
Brand Name :
ARNOLD
Place of Origin :
China
Certification :
ISO9001:2000
MOQ :
2
Price :
10—416 USD
Packaging Details :
standard packaging
Delivery Time :
negotiable
Supply Ability :
100000 sets per month
Usage :
CNC Machine
Sample :
Yes
Application :
Drilling
Suitable Workpiece :
Steel, Cast Iron, Aluminum
Surface Treatment :
Black Oxide
Coolant Type :
Internal/External
Shank Type :
Straight Shank
Function :
Hole Machining Tools
Description

Product Description:

The U Drill

The U Drill, also referred to as an indexable insert drill, is a cutting-edge drilling tool essential in contemporary CNC machining operations. This high-performance tool is specifically crafted for swift, effective, and cost-efficient drilling of both through and blind holes, generally ranging in diameters of 10 mm and larger.

Unique Design

Setting it apart from conventional solid drills, the U Drill showcases replaceable carbide inserts affixed onto a sturdy steel body. This innovative design enables simple maintenance, economical operation, and enhanced productivity, particularly advantageous in high-volume production settings.

Features:

Indexable Insert Design

Replaceable inserts eliminate the need for regrinding and reduce tool change time.

Internal Coolant Channels

Coolant flows through the drill body directly to the cutting edge, improving chip evacuation and tool life.

Various Lengths Available

Offered in 2×D, 3×D, 4×D, and 5×D effective drilling depths.

High Rigidity

Robust body construction ensures stability during high-speed or heavy-duty machining.

Wide Material Compatibility

Suitable for machining steel, stainless steel, cast iron, aluminum alloys, and more.

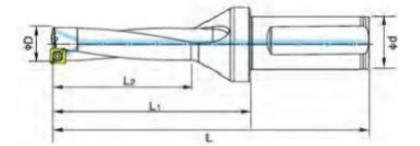

Technical Parameters:

Robust 5xD U Drill Straight Shank Design Letter U Drill For CNC Machine

Cat.No

( m m )

Insert

Screw

Wrench

D

L

L1

L2

d

SP15-05D-C25

SP15.5-05D-C25

15

15.5

153

97

75

77.5

80

82.5

25

SPMG

050204

M2.2x5-D27

T7

SP16-05D-C25

SP16.5-05D-C25

16

16.5

159

103

SP17-05D-C25

SP17.5-05D-C25

17

17.5

164

108

85

87.5

25

SPMG

060204

M2.2X5.5

T7

SP18-05D-C25

SP18.5-05D-C25

18

18.5

169

113

90

92.5

SP19-05D-C25

SP19.5-05D-C25

19

19.5

173

117

95

97.5

100

102.5

105

107.5

SP20-05D-C25

SP20.5-05D-C25

20

20.5

179

126

SP21-05D-C25

SP21.5-05D-C25

21

21.5

184

128

SP22-05D-C25 SP22,5-05D-C25

22

22.5

186

130

110

112.5

115

117.5

120

122.5

125

127.5

130

132.5

135

137.5

25

SPMG

07 T308

M2.5X8

TB

SP23-05D-C25

SP23.5-05D-C25

23

23.5

171

115

SP24-05D-C25

SP24.5-05D-C25

24

24.5

175

119

SP25-05D-C32

SP25.5-05D-C32

25

25.5

185

125

SP26-05D-C32

SP26.5-05D-C32

26

26.5

191

131

SP27-05D-C32

SP27.5-05D-C32

27

27.5

195

135

SP28-05D-C32

SP29-05D-C32

SP30-05D-C32

SP31-05D-C32

SP32-05D-C32

SP33-05D-C32

28

29

30

31

32

33

225

230

235

238

243

248

165

170

175

178

183

188

140

145

32

SPMG

090408

M3.5X9

T15

150

155

160

165

SP34-05D-C32

SP35-05D-C32

SP36-05D-C32

SP37-05D-C32

SP38-05D-C32

SP39-05D-C32

SP40-05D-C32

SP41-05D-C32

34

35

36

37

38

39

40

41

253

258

263

270

275

278

283

288

193

198

203

210

215

218

223

228

170

175

180

185

190

195

200

205

32

SPMG

110408

M4.0X10

T15

SP42-05D-C40

SP43-05D-C40

SP44-05D-C40

SP45-05D-C40

SP46-05D-C40

SP47-05D-C40

SP48-05D-C40

SP49-05D-C40

SP50-05D-C40

42

43

44

45

46

47

48

49

50

308

313

318

323

328

333

338

343

348

238

243

248

253

258

263

268

273

278

210

215

220

225

230

235

240

245

250

40

SPMG

140512

M5.0X11

T20
Robust 5xD U Drill Straight Shank Design Letter U Drill For CNC Machine

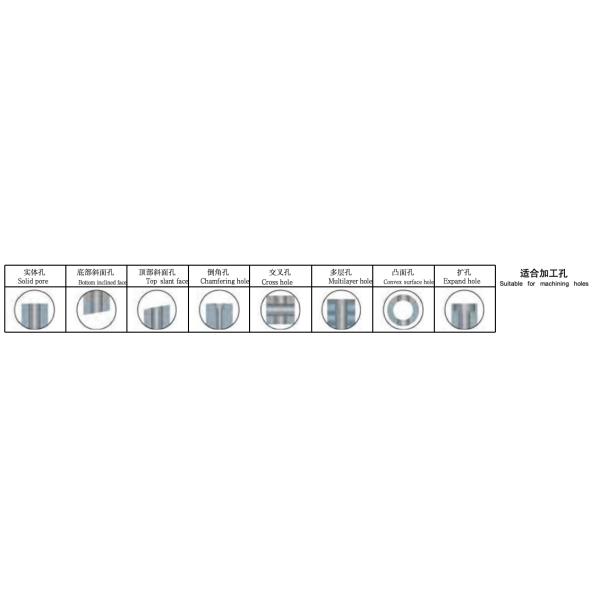

Applications:

Applications:

1. High-speed drilling can be performed in CNC lathes and machining centers for efficient and precise results.

2. Pre-machining activities may include boring, reaming, or tapping processes to prepare workpieces for further operations.

3. Large-diameter holes can undergo rough boring procedures to achieve the required specifications.

4. The tools are suitable for mass production settings and automated environments to enhance productivity and consistency.
