3xD CNC Machine U Drill Black Oxide For Drilling Aluminum Workpiece
3xD CNC Machine U Drill Black Oxide For Drilling Aluminum Workpiece
Specifications
Brand Name :
ARNOLD
Place of Origin :
China
Certification :
ISO9001:2000
MOQ :
2
Price :
10—416 USD
Packaging Details :
standard packaging
Delivery Time :
negotiable
Supply Ability :
100000 sets per month
Effective Length :
2D 3D 4D 5D
Surface Treatment :
Black Oxide
Coolant Type :
Internal/External
Usage :
CNC Machine
Suitable Workpiece :
Steel, Cast Iron, Aluminum
Shank Type :
Straight Shank
Function :
Hole Machining Tools
Application :
Drilling
Description

Product Description:

U Drill , also known as an Indexable Insert Drill or Insert-Type Drill , is a high-performance drilling tool designed for efficient hole-making operations in modern CNC machining environments. It combines the strength of a solid body with the versatility of replaceable carbide inserts, offering both productivity and cost-efficiency.

Features:

Features:

Indexable Inserts: Equipped with two or more replaceable carbide inserts, which eliminate the need for regrinding and reduce tool change time.

Multiple Length Options: Available in standard drilling depths such as 2×D, 3×D, 4×D, and 5×D.

Internal Coolant Channels: Provides through-tool coolant delivery for effective chip evacuation and improved tool life.

High Rigidity: The robust shank design ensures high rigidity and vibration resistance, suitable for high-speed machining.

Cost-Effective: Only the inserts need to be replaced, significantly lowering tooling costs over time.

Versatile Material Application: Suitable for machining steel, stainless steel, cast iron, aluminum alloys, and exotic materials.

Technical Parameters:

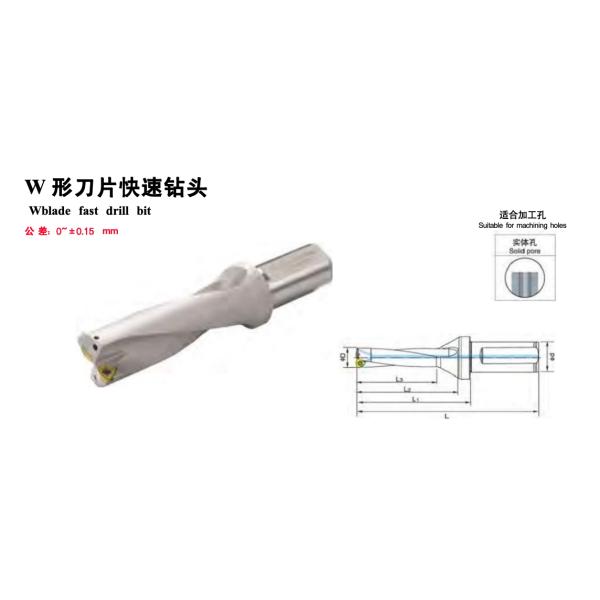

3xD CNC Machine U Drill Black Oxide For Drilling Aluminum Workpiece

Dx3

Cat.No

( m m )

Insert

Wren ch

Screw

D

L

L1

L2

L3

d

WC14-03D-C25

WC14.5-03D-C25

14

14.5

121

65

59.5

42

43.5

45

46.5

48

49.5

51

52.5

54

55.5

57

58.5

25

WCMX

030208

M2.5X5

T8

WC15-03D-C25

WC15.5-03D-C25

15

15.5

123

67

61.5

WC16-03D-C25

WC16.5-03D-C25

16

16.5

127

71

65.5

WC17-03D-C25

wC17.5-03D-C25

17

17.5

130

74

68.5

WC18-03D-C25

WC18.5-03D-C25

18

18.5

133

77

71.5

WC19-03D-C25

WC19.5-03D-C25

19

19.5

135

79

73.5

WC20-03D-C25

WC20.5-03D-C25

20

20.5

139

83

77.5

60

61.5

63

64.5

66

67.5

69

70.5

25

WCMX

040208

M2.5X6

T8

WC21-03D-C25

WC21.5-03D-C25

21

21.5

142

86

80.5

WC22-03D-C25

wC22.5-03D-C25

22

22.5

142

86

80.5

WC23-03D-C25

WC23.5-03D-C25

23

23.5

148

92

86.5

WC24-03D-C25

wC24.5-03D-C25

24

24.5

151

95

89.5

72

73.5

75

76.5

78

79.5

81

82.5

84

85.5

87

88.5

90

91.5

25

WCMT

050308

M3.0X7

T10

WC25-03D-C32

WC25.5-03D-C32

25

25.5

160

100

94

32

WC26-03D-C32

WC26.5-03D-C32

26

26.5

165

105

99

wC27-03D-C32

wC27.5-03D-C32

27

27.5

168

108

102

WC28-03D-C32

WC28.5-03D-C32

28

28.5

169

109

103

WC29-03D-C32

wC29.5-03D-C32

29

29.5

172

112

106

WC30-03D-C32

WC30.5-03D-C32

30

30.5

175

115

109

WC31-03D-C32

WC31.5-03D-C32

31

31.5

176

116

110

93

94.5

96

97.5

32

WCMT

06 T308

M3.5X8

T15

WC32-03D-C32

WC32.5-03D-C32

32

32.5

179

119

113

Applications:

Typical Applications:

High-efficiency drilling is often utilized in CNC lathes and machining centers for precision operations.

Rough boring operations, which involve removing large amounts of material quickly, can benefit from specialized drilling techniques.

Pre-machining is commonly done before reaming or finishing boring processes to prepare the workpiece for further refinement.

Large diameter hole machining, typically with diameters of Ø14 mm and above, can be efficiently carried out using advanced drilling methods.
