10-13.9mm Diameter Straight Shank U Drill 12D/3D/4D/5D For Industrial
10-13.9mm Diameter Straight Shank U Drill 12D/3D/4D/5D For Industrial
Specifications
Brand Name :
ARNOLD
Place of Origin :
China
Certification :
ISO9001:2000
MOQ :
2
Price :
10—416 USD
Packaging Details :
standard packaging
Delivery Time :
negotiable
Supply Ability :
100000 sets per month
Effective Length :
2D 3D 4D 5D
Diameter Range (mm) :
10-13.9
Coolant Type :
Internal/External
Usage :
CNC Machine
Sample :
Yes
Function :
Hole Machining Tools
Shank Type :
Straight Shank
Surface Treatment :
Black Oxide
Description

Product Description:

U Drill , commonly referred to as an Indexable Insert Drill or Insert-Type Drill, is a cutting-edge drilling tool meticulously engineered for optimal hole-making functions within contemporary CNC machining settings. Blending the robustness of a solid body with the flexibility of interchangeable carbide inserts, this tool delivers enhanced productivity and cost-effectiveness.

This innovative tool, U Drill , is specifically crafted to meet the demanding requirements of today's machining operations. It leverages the durability of a solid construction while incorporating the convenience of replaceable carbide inserts, resulting in an efficient and economical drilling solution for industrial applications.

Features:

Features:

Indexable Inserts: Equipped with two or more replaceable carbide inserts, which eliminate the need for regrinding and reduce tool change time.

Multiple Length Options: Available in standard drilling depths such as 2×D, 3×D, 4×D, and 5×D.

Internal Coolant Channels: Provides through-tool coolant delivery for effective chip evacuation and improved tool life.

High Rigidity: The robust shank design ensures high rigidity and vibration resistance, suitable for high-speed machining.

Cost-Effective: Only the inserts need to be replaced, significantly lowering tooling costs over time.

Versatile Material Application: Suitable for machining steel, stainless steel, cast iron, aluminum alloys, and exotic materials.

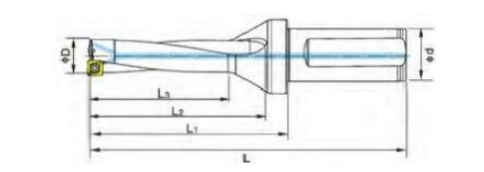

Technical Parameters:

10-13.9mm Diameter Straight Shank U Drill 12D/3D/4D/5D For Industrial

Cat.No

( m m )

Insert

Screw

Wren ch

D

2D

3D

4D

5D

柄径d

SP8.5-C20-SP03

8.5

17

20

SPMGO30102B

SP9.0-C20-SP03

SP9.5-C20-SP03

9.0

9.5

18

19

20

20

SP10.0-C20-SP03

10.0

20

20

SPMG040204

M2.2*4*D27

T6

SP10.0-C16-SP04

10.0

20

30

40

50

20

SP10.5-C16-SP04

10.5

21

31.5

42

52.5

20

SP11.0-C16-SP04

11.0

22

33

44

55

20

SP11.5-C16-SP04

SP12.0-C16-SP04

11.5

12.0

23

24

34.5

36

46

48

57.5

60

20

20

Applications:

Typical Applications:

1. High-efficiency drilling in CNC lathes and machining centers

2. Rough boring operations

3. Pre-machining for reaming or finishing boring

4. Large diameter hole machining (usually Ø14 mm and above)
