5D CNC Machine U Drill 10-13.9mm Diameter Range For Steel Workpiece
5D CNC Machine U Drill 10-13.9mm Diameter Range For Steel Workpiece
Specifications
Brand Name :
ARNOLD
Place of Origin :
China
Certification :
ISO9001:2000
MOQ :
2
Price :
10—416 USD
Packaging Details :
standard packaging
Delivery Time :
negotiable
Supply Ability :
100000 sets per month
Function :
Hole Machining Tools
Surface Treatment :
Black Oxide
Coolant Type :
Internal/External
Sample :
Yes
Application :
Drilling
Effective Length :
2D 3D 4D 5D
Shank Type :
Straight Shank
Suitable Workpiece :
Steel, Cast Iron, Aluminum
Description

Product Description:

U Drill , also referred to as an Indexable Insert Drill or Insert-Type Drill , is a cutting-edge drilling tool specifically engineered for optimal hole-making processes within contemporary CNC machining settings. This tool merges the robustness of a solid body with the adaptability of interchangeable carbide inserts to provide a balance of high productivity and cost-effectiveness.

Features:

Features:

Indexable Inserts: Equipped with two or more replaceable carbide inserts, which eliminate the need for regrinding and reduce tool change time.

Multiple Length Options: Available in standard drilling depths such as 2×D, 3×D, 4×D, and 5×D.

Internal Coolant Channels: Provides through-tool coolant delivery for effective chip evacuation and improved tool life.

High Rigidity: The robust shank design ensures high rigidity and vibration resistance, suitable for high-speed machining.

Cost-Effective: Only the inserts need to be replaced, significantly lowering tooling costs over time.

Versatile Material Application: Suitable for machining steel, stainless steel, cast iron, aluminum alloys, and exotic materials.

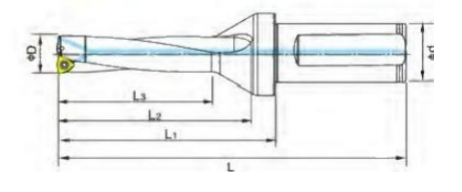

Technical Parameters:

5D CNC Machine U Drill 10-13.9mm Diameter Range For Steel Workpiece

Cat.No

( m m )

Insert

Wren ch

Screw

D

L

L1

L2

L3

d

WC 15-05D-C25

WC 16-05D-C25

WC 17-05D-C25

WC 18-05D-C25

WC 19-05D-C25

15

16

17

18

19

153

159

164

169

173

97

103

108

113

117

91.5

97.5

102.5

107.5

111.5

75

80

85

90

95

25

WCMX

030208

M2.5X6

T8

WC 20-05D-C32

WC21-05D-C32

WC 22-05D-C32

WC 23-05D-C32

20

21

22

23

179

184

186

194

123

128

130

138

117.5

122.5

124.5

132.5

100

105

110

115

32

WCMX

040208

M2.5X6

T8

WC 24-05D-C32

WC 25-05D-C32

WC 26-05D-C32

WC 27-05D-C32

WC 28-05D-C32

WC 29-05D-C32

WC 30-05D-C32

24

25

26

27

28

29

30

199

210

217

222

225

230

235

143

150

157

162

165

170

175

137.5

144

151

156

159

164

169

120

125

130

135

140

145

150

32

WCMT

050308

M3.0X7

T10

WC 31-05D-C32

WC 32-05D-C32

WC 33-05D-C32

WC 34-05D-C32

WC 35-05D-C32

WC 36-05D-C32

WC 37-05D-C32

WC 38-05D-C32

WC 39-05D-C32

WC 40-05D-C32

WC 41-05D-C32

31

32

33

34

35

36

37

38

39

40

41

238

243

248

253

258

263

270

275

278

283

288

178

183

188

193

198

203

210

215

218

223

228

172

177

182

187

192

197

204

209

212

217

222

155

160

165

170

175

180

185

190

195

200

205

40

WCMT

06 T308

M3.5X8

T15

WC 42-05D-C40

WC 43-05D-C40

WC 44-05D-C40

WC 45-05D-C40

WC 46-05D-C40

WC 47-05D-C40

WC 48-05D-C40

WC49-05D-C40

WC 50-05D-C40

WC51-05D-C40

WC 52-05D-C40

WC 53-05D-C40

WC 54-05D-C40

WC 55-05D-C40

WC 56-05D-C40

WC57-05D-C40

WC58-05D-C40

WC 59-05D-C40

WC 60-05D-C40

42

43

44

45

46

47

48

49

50

51

52

53

54

55

56

57

58

59

60

308

313

318

323

328

333

338

343

348

353

358

363

368

373

378

383

388

393

400

238

243

248

253

258

263

268

273

278

283

288

293

298

303

308

313

318

323

330

232

237

242

247

252

257

262

267

272

277

282

287

292

297

302

307

312

317

324

210

215

220

225

230

235

240

245

250

255

260

265

270

275

280

285

290

295

300

40

WCMT

080412

M4.0X10

T15

Applications:

Typical Applications:

- High-efficiency drilling in CNC lathes and machining centers

- Rough boring operations

- Pre-machining for reaming or finishing boring

- Large diameter hole machining (usually Ø14 mm and above)
