2D Indexable Insertable U Drill Versatile High Accuracy 14mm Diameters
2D Indexable Insertable U Drill Versatile High Accuracy 14mm Diameters
Specifications
Brand Name :
ARNOLD
Place of Origin :
China
Certification :
ISO9001:2000
MOQ :
2
Price :
10—416 USD
Packaging Details :
standard packaging
Delivery Time :
negotiable
Supply Ability :
100000 sets per month
Coolant Type :
Internal/External
Sample :
Yes
Effective Length :
2D 3D 4D 5D
Diameter Range (mm) :
10-13.9
Application :
Drilling
Function :
Hole Machining Tools
Usage :
CNC Machine
Surface Treatment :
Black Oxide
Description

Product Description:

U Drill, also known as an Indexable Insert Drill or Insert-Type Drill, is a high-performance drilling tool designed for efficient hole-making operations in modern CNC machining environments. It combines the strength of a solid body with the versatility of replaceable carbide inserts, offering both productivity and cost-efficiency.

Features:

Features:

Indexable Inserts: Equipped with two or more replaceable carbide inserts, which eliminate the need for regrinding and reduce tool change time.

Multiple Length Options: Available in standard drilling depths such as 2×D, 3×D, 4×D, and 5×D.

Internal Coolant Channels: Provides through-tool coolant delivery for effective chip evacuation and improved tool life.

High Rigidity: The robust shank design ensures high rigidity and vibration resistance, suitable for high-speed machining.

Cost-Effective: Only the inserts need to be replaced, significantly lowering tooling costs over time.

Versatile Material Application: Suitable for machining steel, stainless steel, cast iron, aluminum alloys, and exotic materials.

Technical Parameters:

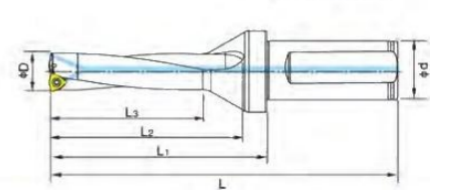

2D Indexable Insertable U Drill Versatile High Accuracy 14mm Diameters

Cat.No

( m m )

Insert

Wrench

Screw

D

L

L1

L2

L3

d

WC 33-04D-C32

WC 33.5-04D-C32

WC 34-04D-C32

WC 34.5-04D-C32

WC 35-04D-C32

WC 35.5-04D-C32

WC 36-04D-C32

WC 36.5-04D-C32

WC 37-04D-C32

WC 37.5-04D-C32

WC 38-04D-C32

WC 38.5-04D-C32

WC 39-04D-C32

WC 39.5-04D-C32

WC 40-04D-C32

WC41-04D-C32

33

33.5

34

34.5

35

35.5

36

36.5

37

37.5

38

38.5

39

39.5

40

41

215

215

219

219

223

223

227

227

233

233

237

237

239

239

243

247

155

155

159

159

163

163

167

167

173

173

177

177

179

179

183

187

149

149

153

153

157

157

161

161

167

167

171

171

173

173

177

181

132

134

136

138

140

142

144

146

148

150

152

154

156

158

160

164

32

WCMT

06 T308

M3.5X8

T15

WC 42-04D-C40

WC 43-04D-C40

WC44-04D-C40

WC 45-04D-C40

WC 46-04D-C40

WC47-04D-C40

WC 48-04D-C40

WC 49-04D-C40

WC 50-04D-C40

WC51-04D-C40

WC52-04D-C40

WC53-04D-C40

WC 54-04D-C40

WC 55-04D-C40

WC56-04D-C40

WC57-04D-C40

WC58-04D-C40

WC 59-04D-C40

WC60-04D-C40

42

43

44

45

46

47

48

49

50

51

52

53

54

55

56

57

58

59

60

266

270

274

278

282

286

290

294

298

302

306

310

314

318

322

326

330

334

340

196

200

204

208

212

216

220

224

228

232

236

240

244

248

252

256

260

264

270

190

194

198

202

206

210

214

218

222

226

230

234

238

242

246

250

254

258

264

168

172

176

180

184

188

192

196

200

204

208

212

216

220

224

228

232

236

240

40

WCMT

080412

M4.0X10

T15

WC61-04D-C40

WC 62-04D-C40

WC 63-04D-C40

WC64-04D-C40

WC65-04D-C40

WC 66-04D-C40

WC 67-04D-C40

WC 68-04D-C40

WC69-04D-C40

WC70-04D-C40

WC71-04D-C40

WC72-04D-C40

WC73-04D-C40

WC74-04D-C40

WC75-04D-C40

61

62

63

64

65

66

67

68

69

70

71

72

73

74

75

344

348

352

356

360

364

368

372

376

380

394

398

402

406

410

274

278

282

286

290

294

298

302

306

310

324

328

332

336

340

268

272

276

280

284

288

292

296

300

304

289

293

297

301

305

244

248

252

256

260

264

268

272

276

280

284

288

292

296

300

40

WCMT

06 T308

M3.5X8

T15

Applications:

Typical Applications:

High-efficiency drilling is commonly employed in CNC lathes and machining centers for precision manufacturing purposes.

Rough boring operations are frequently performed to remove excess material and achieve desired dimensions in various workpieces.

Pre-machining is often carried out before reaming or finishing boring to prepare the surface and ensure precise final hole dimensions.

Large diameter hole machining, typically with diameters of 14 mm and above, is a common requirement for creating holes of considerable size.
