22-50mm Diameter U Shaped Drill Bit 6xD High Precision U Drill
22-50mm Diameter U Shaped Drill Bit 6xD High Precision U Drill
Specifications
Brand Name :
ARNOLD
Place of Origin :
China
Certification :
ISO9001:2000
MOQ :
2
Price :
10—416 USD
Packaging Details :
standard packaging
Delivery Time :
negotiable
Supply Ability :
100000 sets per month
Suitable Workpiece :
Steel, Cast Iron, Aluminum
Sample :
Yes
Surface Treatment :
Black Oxide
Diameter Range (mm) :
22-50
Function :
Hole Machining Tools
Usage :
CNC Machine
Coolant Type :
Internal/External
Effective Length :
6D
Description

Product Description:

U Drill , also referred to as an Indexable Insert Drill or Insert-Type Drill , is a cutting-edge drilling tool specifically engineered to optimize hole-making processes in contemporary CNC machining settings. This innovative tool seamlessly integrates the durability of a solid body with the adaptability of replaceable carbide inserts, providing a winning combination of productivity and cost-effectiveness.

Features:

Features:

Indexable Inserts: Equipped with two or more replaceable carbide inserts, which eliminate the need for regrinding and reduce tool change time.

Multiple Length Options: Available in standard drilling depths such as 2×D, 3×D, 4×D, and 5×D.

Internal Coolant Channels: Provides through-tool coolant delivery for effective chip evacuation and improved tool life.

High Rigidity: The robust shank design ensures high rigidity and vibration resistance, suitable for high-speed machining.

Cost-Effective: Only the inserts need to be replaced, significantly lowering tooling costs over time.

Versatile Material Application: Suitable for machining steel, stainless steel, cast iron, aluminum alloys, and exotic materials.

Technical Parameters:

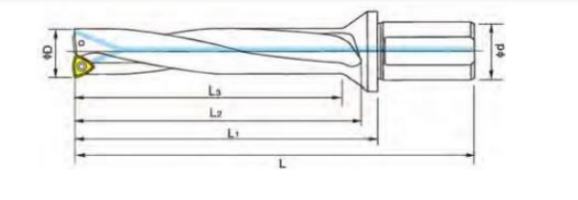

22-50mm Diameter U Shaped Drill Bit 6xD High Precision U Drill

Cat.No

( m m )

Insert

Wrench

Screw

D

L

L1

L2

L3

d

WC 22-6D-C25

WC 23-6D-C25

22

23

208

217

152

161

146.5

155.5

132

138

32

WC04

M2.5x6

T8

WC 24-6D-C25

WC 25-6D-C32

WC 26-6D-C32

WC 27-6D-C32

WC 28-6D-C32

WC 29-6D-C32

WC 30-6D-C32

24

25

26

27

223

235

243

249

167

175

161.5

169

144

150

156

162

32

WC05

M3.0x7

T10

183

189

177

183

28

29

30

253

259

265

193

199

205

187

193

199

168

174

180

wC 31-6D-C32

WC 32-6D-C32

WC 33-6D-C40

31

32

33

269

275

281

209

215

221

203

209

215

186

192

198

32

WC06

M3.5×8

T15

WC 34-6D-C40

WC 35-6D-C40

WC 36-6D-C40

WC 37-6D-C40

WC 38-6D-C40

WC 39-6D-C40

WC40-6D-C40

WC41-6D-C40

34

35

36

37

287

293

299

307

313

317

227

233

239

247

253

257

263

269

221

227

233

241

247

251

257

263

204

210

216

222

228

234

240

246

38

39

40

41

323

329

WC 42-6D-C40

WC 43-6D-C40

WC 44-6D-C40

WC 45-6D-C40

WC 46-6D-C40

WC 47-6D-C40

WC 48-6D-C40

WC 49-6D-C40

WC 50-6D-C40

42

43

44

45

350

356

362

368

280

286

292

298

304

310

316

322

328

274

280

286

292

298

304

310

316

322

252

258

264

270

276

282

288

294

300

40

WC08

M4.0x10

T15

46

47

48

49

50

374

380

386

392

398
2

Applications:

Typical Applications:

  • High-efficiency drilling in CNC lathes and machining centers
  • Rough boring operations
  • Pre-machining for reaming or finishing boring
  • Large diameter hole machining (usually Ø14 mm and above)
