10-13.9mm Diameter Insertable U Drill Dx2 Machining Tool U Drill
10-13.9mm Diameter Insertable U Drill Dx2 Machining Tool U Drill
Specifications
Brand Name :
ARNOLD
Place of Origin :
China
Certification :
ISO9001:2000
MOQ :
2
Price :
10—416 USD
Packaging Details :
standard packaging
Delivery Time :
negotiable
Supply Ability :
100000 sets per month
Effective Length :
2D 3D 4D 5D
Function :
Hole Machining Tools
Application :
Drilling
Shank Type :
Straight Shank
Diameter Range (mm) :
10-13.9
Usage :
CNC Machine
Surface Treatment :
Black Oxide
Suitable Workpiece :
Steel, Cast Iron, Aluminum
Description

Product Description:

U Drill, sometimes referred to as an Indexable Insert Drill or Insert-Type Drill, is a top-tier drilling instrument meticulously crafted to optimize hole-making processes in contemporary CNC machining settings. The tool marries the sturdiness of a solid body with the flexibility of interchangeable carbide inserts, delivering enhanced productivity and economical benefits.

Features:

Features:

Indexable Inserts: Equipped with two or more replaceable carbide inserts, which eliminate the need for regrinding and reduce tool change time.

Multiple Length Options: Available in standard drilling depths such as 2×D, 3×D, 4×D, and 5×D.

Internal Coolant Channels: Provides through-tool coolant delivery for effective chip evacuation and improved tool life.

High Rigidity: The robust shank design ensures high rigidity and vibration resistance, suitable for high-speed machining.

Cost-Effective: Only the inserts need to be replaced, significantly lowering tooling costs over time.

Versatile Material Application: Suitable for machining steel, stainless steel, cast iron, aluminum alloys, and exotic materials.

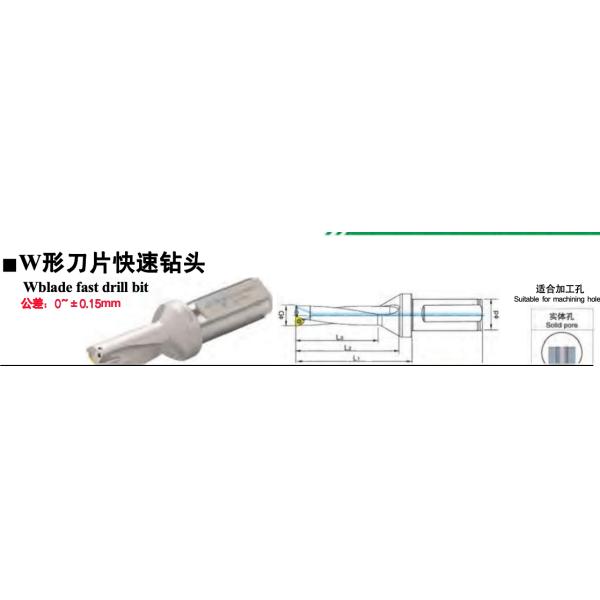

Technical Parameters:

10-13.9mm Diameter Insertable U Drill Dx2 Machining Tool U Drill

Dx2

Cat.No

( m m )

Insert

Wrench

Screw

D

L

L1

L2

L3

d

WC14-02D-C25

WC14.5-02D-C25

14

14.5

106

50

45

28

25

WCMX

030208

M2.5X5

T8

WC 15-02D-C25

WC 15.5-02D-C25

15

15.5

108

52

46.5

30

WC 16-02D-C25

WC 16.5-02D-C25

16

16.5

111

55

49.5

32

WC 17-02D-C25

WC17.5-02D-C25

17

17.5

113

57

51.5

34

WC 18-02D-C25

WC 18.5-02D-C25

18

18.5

115

59

53.5

36

WC 19-02D-C25

WC 19.5-02D-C25

19

19.5

116

60

54.5

38

WC20-02D-C25

WC20.5-02D-C25

20

20.5

119

63

57.5

40

25

WCMX

040208

M2.5X6

T8

WC21-02D-C25

WC21.5-02D-C25

21

21.5

121

65

59.5

42

WC 22-02D-C25

WC 22.5-02D-C25

22

22.5

120

64

58.5

44

WC23-02D-C25

WC23.5-02D-C25

23

23.5

125

69

63.5

46

WC24-02D-C25

WC 24.5-02D-C25

24

24.5

127

71

65.5

48

25

WCMT

050308

M3.0X7

T10

WC25-02D-C32

WC25.5-02D-C32

WC26-02D-C32

WC27-02D-C32

WC28-02D-C32

WC29-02D-C32

WC 30-02D-C32

25

25.5

26

27

28

29

30

135

139

141

141

143

145

75

79

81

81

83

85

69

73

75

75

77

79

50

52

54

56

58

60

32

WC31-02D-C32

WC32-02D-C32

WC33-02D-C32

WC34-02D-C32

WC35-02D-C32

WC 36-02D-C32

WC37-02D-C32

WC38-02D-C32

WC39-02D-C32

WC40-02D-C32

WC41-02D-C32

31

32

33

34

35

36

37

38

39

40

41

145

147

149

151

153

155

159

161

161

163

165

85

87

89

91

93

95

99

101

101

103

105

79

81

83

85

87

89

93

95

95

97

99

62

64

66

68

70

72

74

76

78

80

82

32

WCMT

06 T308

M3.5X8

T15

WC42-02D-C40

WC 43-02D-C40

WC44-02D-C40

WC45-02D-C40

WC46-02D-C40

WC47-02D-C40

WC48-02D-C40

WC49-02D-C40

WC50-02D-C40

WC51-02D-C40

WC52-02D-C40

WC53-02D-C40

WC54-02D-C40

WC55-02D-C40

WC56-02D-C40

WC57-02D-C40

WC58-02D-C40

WC59-02D-C40

WC60-02D-C40

42

43

44

45

46

47

48

49

50

51

52

53

54

55

56

57

58

59

60

182

184

186

188

190

192

194

196

198

200

202

204

206

208

210

212

214

216

220

112

114

116

118

120

122

124

126

128

130

132

134

136

138

140

142

144

146

150

106

108

110

112

114

116

118

120

122

124

126

128

130

132

134

136

138

140

144

84

86

88

90

92

94

96

98

100

102

104

106

108

110

112

114

116

118

120

40

WCMT

080412

M4.0X10

T15

Applications:

Typical Applications:

1. High-efficiency drilling in CNC lathes and machining centers

2. Rough boring operations

3. Pre-machining for reaming or finishing boring

4. Large diameter hole machining (usually Ø14 mm and above)
