The U Drill , also referred to as an indexable insert drill , is a cutting-edge drilling tool extensively utilized in contemporary CNC machining. It is specifically engineered to provide swift, effective, and cost-efficient drilling of through and blind holes within the diameter range of 10 mm and larger.

Distinct from conventional solid drills, the U Drill showcases replaceable carbide inserts affixed to a robust steel body. This design enables straightforward maintenance, economically viable use, and remarkable productivity, particularly in high-volume manufacturing settings.

Features:

Indexable Insert Design: The replaceable inserts in this drill design eliminate the need for regrinding and help to reduce tool change time, making it a convenient and time-saving option.

Internal Coolant Channels: Coolant is directed through the drill body directly to the cutting edge. This feature improves chip evacuation and increases the tool's lifespan by maintaining optimal cutting conditions.

Various Lengths Available: This drill is available in a range of effective drilling depths, including 2×D, 3×D, 4×D, and 5×D, providing flexibility for different machining requirements.

High Rigidity: The robust construction of this drill ensures high rigidity, which is essential for maintaining stability during high-speed or heavy-duty machining operations, contributing to precision and efficiency.

Wide Material Compatibility: This drill is suitable for machining a variety of materials, such as steel, stainless steel, cast iron, aluminum alloys, and more. Its versatility in material compatibility makes it a versatile tool for various machining applications.

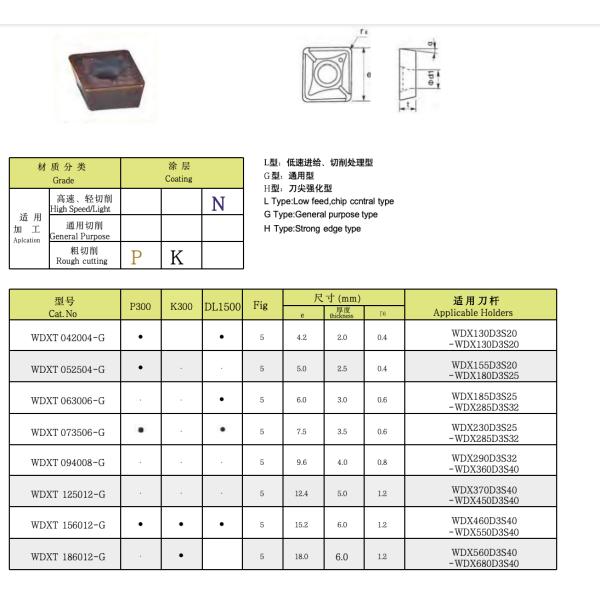

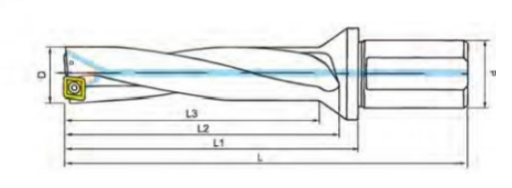

Technical Parameters:

Applications:

Applications:

• High-speed drilling in CNC lathes and machining centers
• Pre-machining for boring, reaming, or tapping
• Rough boring of large-diameter holes
• Mass production and automated environments
•
